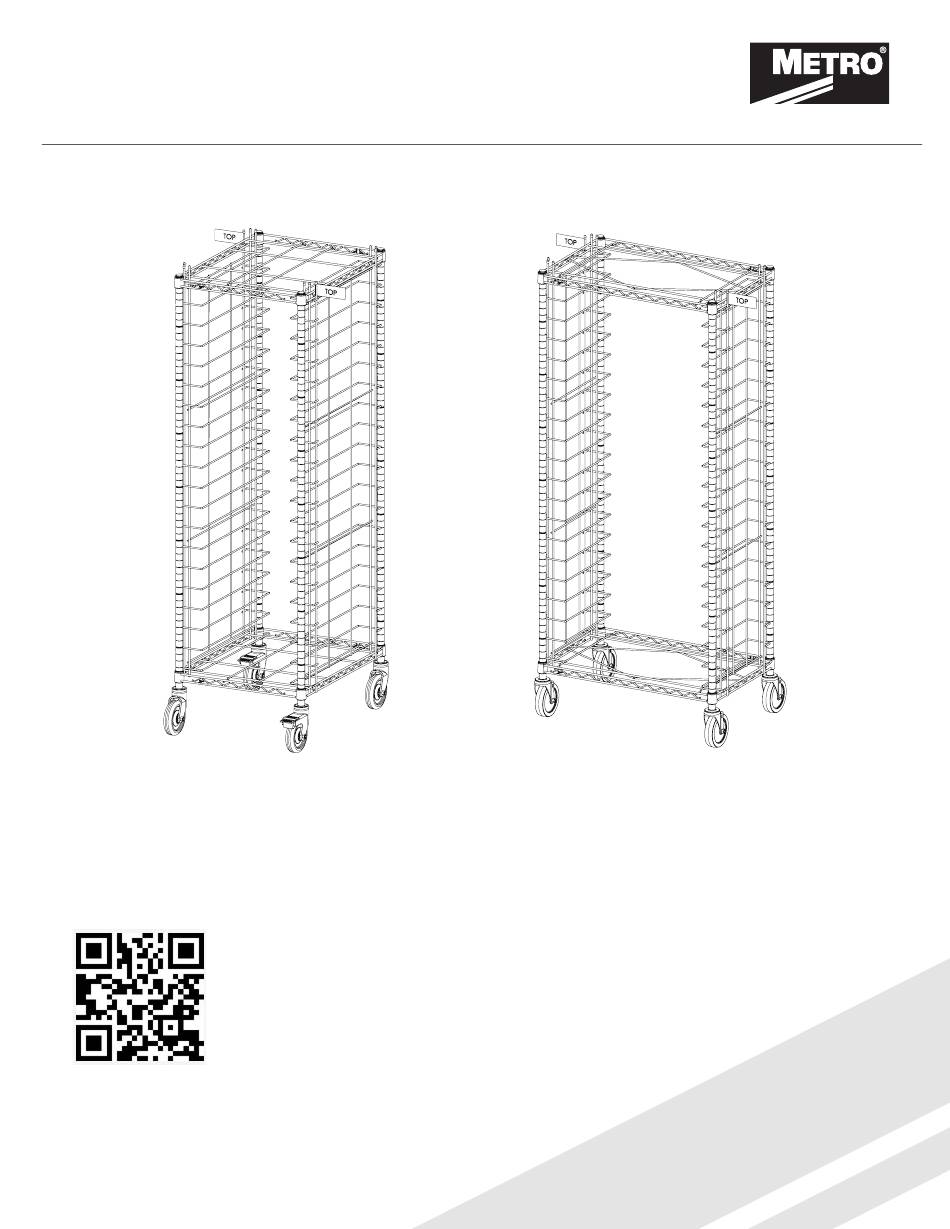

- Page 1 ASSEMBLY INSTRUCTIONS BUN PAN RACK END LOAD SIDE LOAD RE1, RE3, RE3S RS1, RS3 How to assemble scan here...
- Page 2 BUN PAN RACK — ASSEMBLY INSTRUCTIONS TWO PEOPLE REQUIRED TO ASSEMBLE UNIT Sleeve Aluminum Bead Sleeve Press The Caster Until The C-Ring Compresses And Fits Bottom Inside The Post. Groove Corners Brake Caster Swivel Applicable For Caster RE3S Unit Only Brake Caster RE Shelf...
- Page 3 BUN PAN RACK — ASSEMBLY INSTRUCTIONS Slide On Slide On Long Long Side Of Side Of Frame Frame TOP VIEW - END LOAD (RE) Slide On Short Side Of Frame TOP VIEW - SIDE LOAD (RS) RE Shelf Sleeves on Top Groove TOP VIEW - END LOAD (RE)
- Page 4 Corners Retaining Ring TYP (x8) Top And Bottom Frame Hammer Crutch Tips (x12) FOLLOW THE SIMILAR STEPS (1 TO 14) TO INSTALL SIDE LOAD CAUTION: WEIGHT CAPACITY 30 lbs. (13.7kg) per level; 200 lbs. (90.7kg) per unit Distribute weight as evenly as possible. THIS COMPLETES INSTALLATION OF BUN PAN RACK * Save this document for future application, load rating and/or safety reference.
