Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment
• Wear cut-resistant gloves when handling or operating this
equipment.
• Check the blade assembly to make sure it is properly tensioned.
• Check equipment before each use to ensure the equipment is clean.
• Check for broken or dull blades and if found, replace the blade
assembly.
• Check to ensure that the pusher head sits down completely on the
rubber bumpers.
FUNCTION AND PURPOSE
Intended for cutting vegetables and fruits. It is not intended for
household, industrial or laboratory use.
TABLE OF CONTENTS
Assembly .................................................................... page 2
Before First Use - Tension the Blades ......................... page 2
Operation .................................................................... page 3
Cleaning ...................................................................... page 3
Troubleshooting .......................................................... page 4
Operator's Manual
Onion King™ Food Slicer
Item No.
Description
³⁄₁₆" (4.8 cm) – 13 blades
500N
¹⁄₄" (6.4 cm) – 11 blades
501N
³⁄₈" (9.5 cm) – 7 blades
502N
¹⁄₂" (12.7 cm) – 6 blades
503N

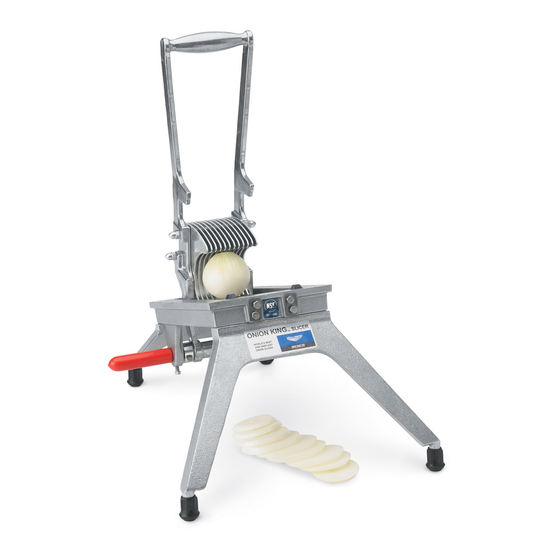

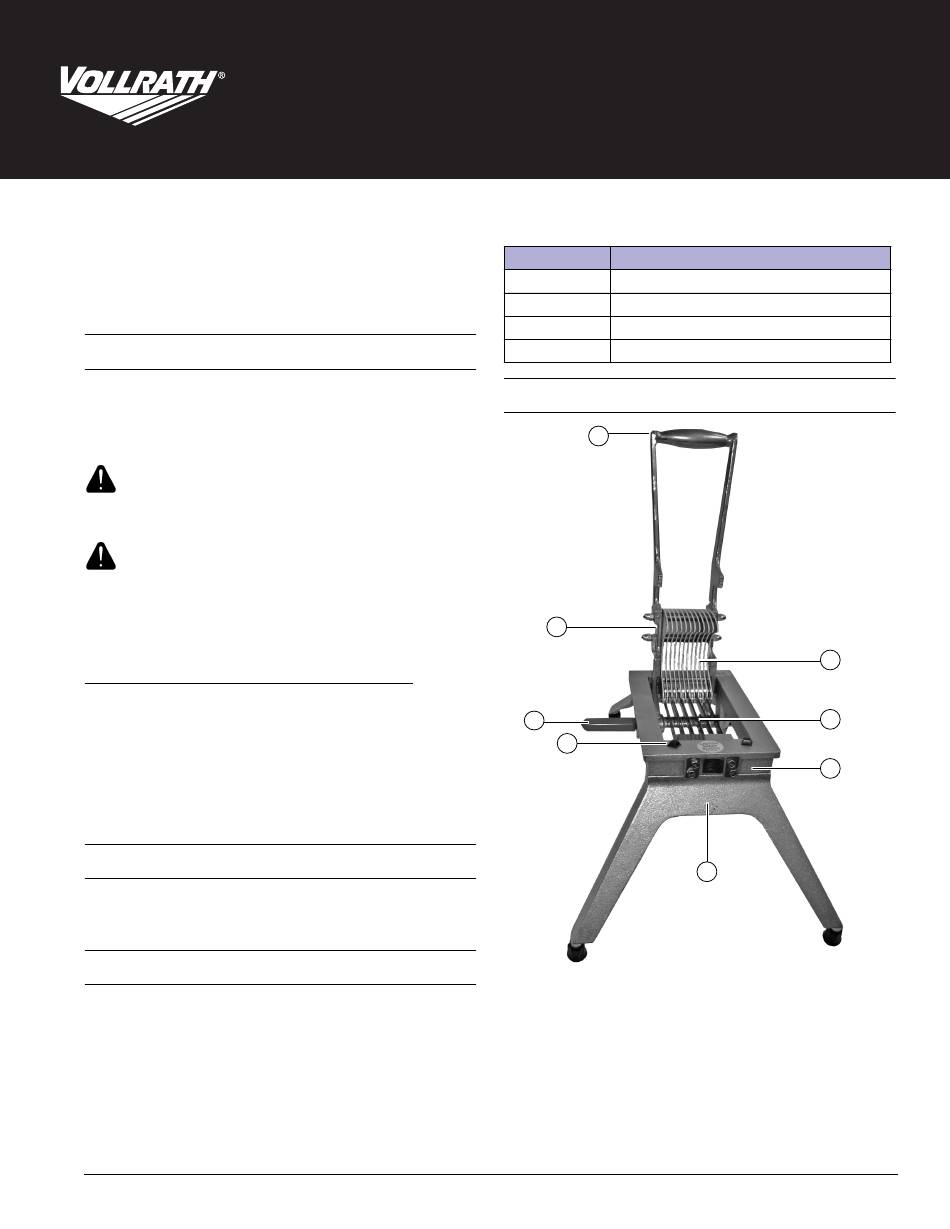

FEATURES
E
D
C
B
A
Leg Assembly
B
Pusher Head Bumper
C
Safety Handle / Pivot Rod
D
Pusher Head Assembly
E
Handle
F
Pusher Head Fingers
G
Blade Assembly
H
Base Assembly
©
2019 The Vollrath Company L.L.C.
F
G
H
A
Part No. 2350028-1 ml
7/11/19
