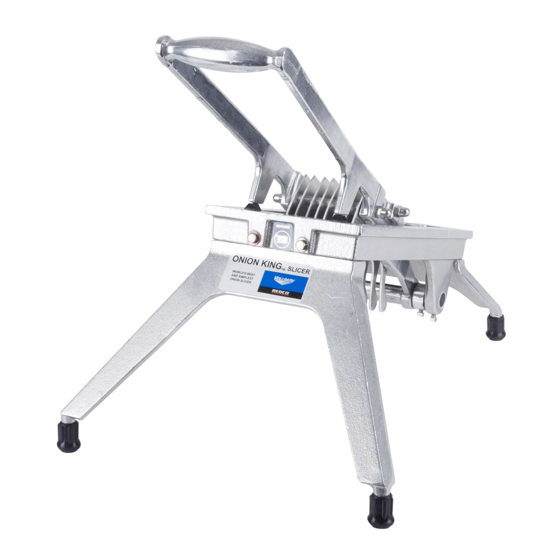

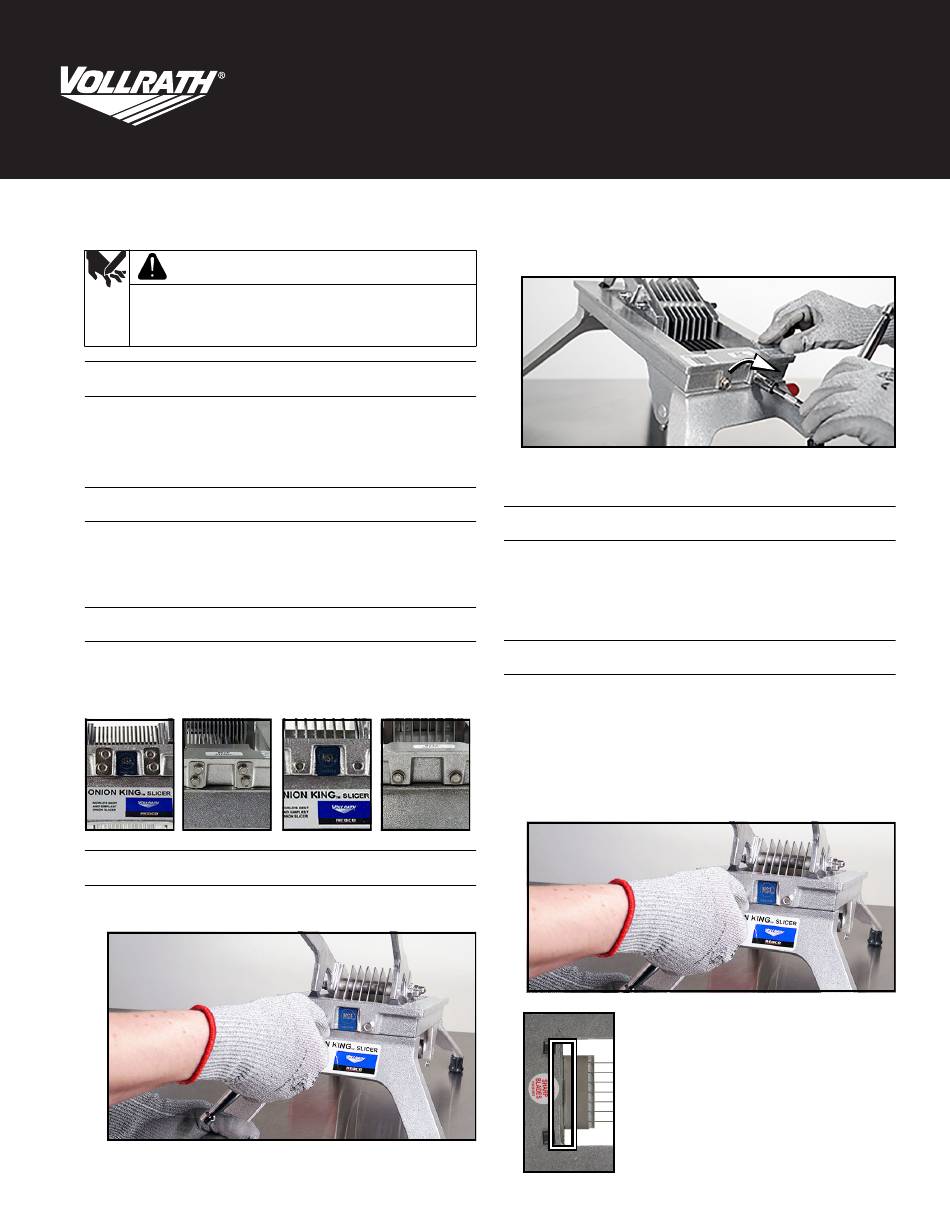

Vollrath Onion King 502N Installation Instructions

WARNING
Sharp Blade Hazard
Blades are sharp and can cut skin. To avoid injury from sharp
blades, wear cut-resistant gloves when using or handling this
product.
TOOLS YOU WILL NEED
• Cut-resistant gloves
• ³⁄₈" socket and socket wrench
• Torque wrench (optional)
WASH THE NEW BLADE ASSEMBLY
Wash new blades with warm, soapy water and rinse thoroughly to
remove the thin protective oil film.
NOTICE: Keep the sharp edge away from you when handling blades.
WHICH ONION KING™ SLICER DO YOU HAVE?
Inspect your slicer to determine which slicer you have.
500N and 501N:
4 Screws on Each End
REMOVE THE OLD BLADE ASSEMBLY
1. Remove the screws and washers or plates from the long leg side of
the base.
Onion King
• Mild dish detergent and warm water
502N and 503N:
2 Screws on Each End

Installation Instructions

®
Blade Replacement
2. Remove the screws, washer plates, and o-rings from the short leg
side.
3. Remove the blade assembly by lowering it through the frame.
4. Retain the screws and o-rings for installing the new blade assembly.
INSTALL THE NEW BLADE ASSEMBLY
1. Place the new blade assembly into the base frame with the sharp
side up.
2. Reinstall all of the screws, washer plates, and o-rings to loosely
support the blade assembly in the base.
TENSION THE BLADE ASSEMBLY
NOTICE: It is important to perform the following steps in order.
Changing the sequence may damage the equipment.
NOTICE: HAND TIGHTEN ONLY. Do NOT use power tools to tighten
the screws on this equipment. Power tools may damage
the equipment.
Tension the Long Leg Side
1. Use the socket wrench to tighten the screws on the long leg side.
2. Tighten the screws until the assembly is tight against the frame.
©
2019 The Vollrath Company L.L.C. Part No. 2350115-1 ml 7/16/19
