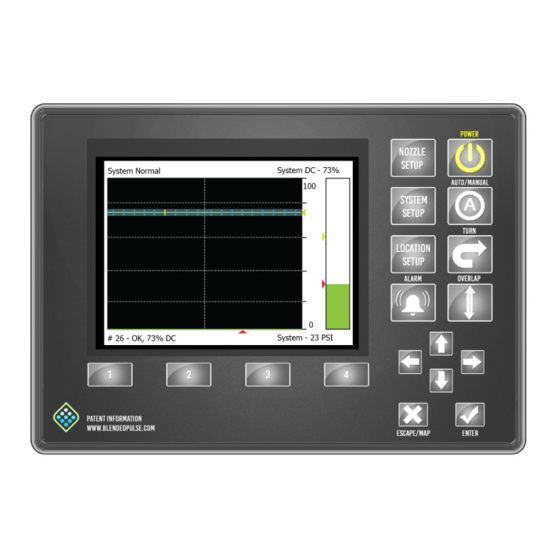

CapstanAG PinPoint II Quick Reference Information

How to Start a Field
1. Press the POWER button.
2. Press the AUTO/MANUAL button.
3.
selected to match your nozzle size.
NOTE: An LED will lluminate in the bottom right corner of
each button when that feature is selected/enabled.
4. Once in the field, press the TURN button.
5. Press the OVERLAP button.
6. Make sure that the correct pressure is set. Adjust as
necessary with the UP or DOWN arrow buttons.
7. Start to spray.
Videos at: www.youtube.com\user\CapstanAG/playlists
PinPoint™ II
Quick Reference Information
Make sure that the
correct Preset button is
How to Finish a Field
1. When you are done spraying a field, press the OVERLAP button.
2. To open the map menu, press the ESCAPE/MAP button.
3. Use the UP or DOWN arrow buttons to select the
desired menu option.
4. Press ENTER button.
NOTE: It is recommended to select Erase Map Without Saving...
if you have sprayed the entire field.
5. If you are going to spray another field, go to that field.
a. Once in that field, press the OVERLAP button.
b. Start to spray.
6. If you are done spraying, turn off the CapView display and shut
down the sprayer normally.
7. If you save a map and return to finish the field, remember to
select Retrieve Map... to load the map again.
