Universal weather station
Universal weather station
Art. No. : 2225 WS U
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Sensor head
(2) Grub screw for locking
82590103
J:0082590103

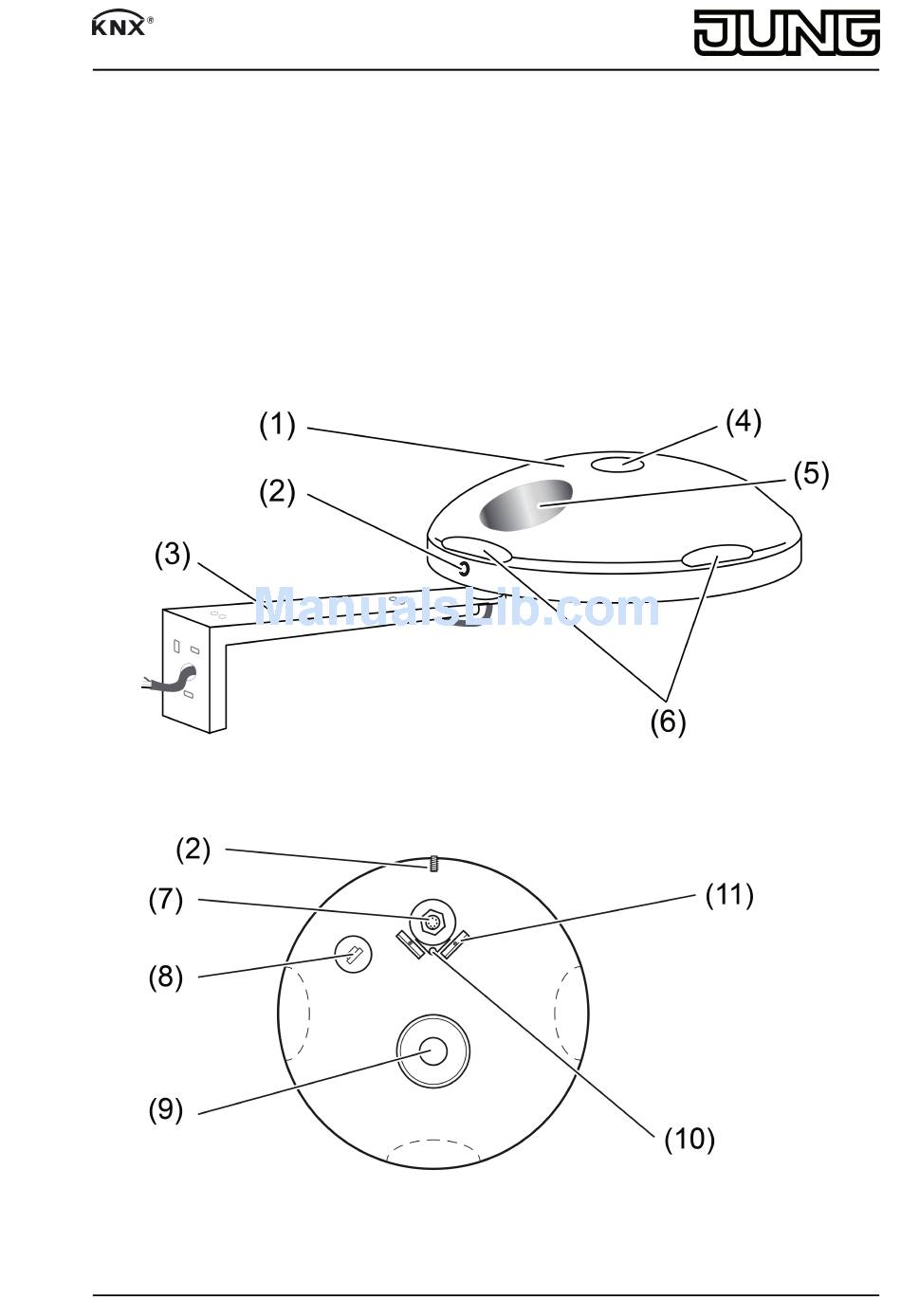

Figure 1: View
Figure 2: Underside view
1/9
30.01.2015
Advertisement
Table of Contents
Related Manuals for Jung 2225 WS U
Summary of Contents for Jung 2225 WS U
-
Page 1: Safety Instructions
Universal weather station Universal weather station Art. No. : 2225 WS U Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. - Page 2 Universal weather station (3) Fastening arm (4) Global radiation sensor (5) Precipitation sensor (6) Light and twilight sensors (7) Mounting for fastening arm with bus connection (8) Air humidity sensor (9) Wind speed and wind direction sensor (10) Temperature sensor (11) Guide blade (only if mounted on a mast) 3 Function...
-
Page 3: Fitting And Electrical Connection
Universal weather station 4.1 Fitting and electrical connection Selecting the installation location Figure 3: Minimum distance to surfaces Figure 4: Avoid spray water 82590103 30.01.2015 J:0082590103... - Page 4 Universal weather station Figure 5: Maximum load on the fastening arm Select a mounting selection in which the weather station is not influenced by local obstacles or shading, such as surrounding trees, chimneys, awnings, etc. The sensor must be able to detect wind, rain and ambient brightness without impedance.
- Page 5 Universal weather station Mount enclosed guide blade (11) in the fields provided next to the connection (7). i If mounted on a mast without the guide blade, no correct wind direction measurement is possible due to the resulting turbulences. Route the power supply line through the mast. Attach the 7-pin plug to the connection (7).
- Page 6 Universal weather station Figure 8: Fastening arm – dimensions for boreholes Mounting and connecting the device Connect bus line and external power supply to power supply line. KNX+ Black KNX– orange + 24 V brown i The sensor head is translucent. Therefore, do not stick or write on the sensor head. Aligning the device Figure 9: Orienting the weather station Align the sensor head in the appropriate direction or - depending on the detailed on-site...
-
Page 7: Technical Data
Universal weather station 4.2 Commissioning Commissioning the device Figure 10: Position of the programming LED and reed contact Switch on the bus voltage. Switch on supply voltage. Hold the supplied programming magnet by the integrated reed contact (12). The programming LED (13) indicates the programming state blue. Assign physical addresses and load application software into the device. -
Page 8: Warranty
Universal weather station Resolution 1° Accuracy ± 10 % (laminar wind stream) Wind speed sensor Measuring range approx. 0 ... 40 m/s Resolution 0.1 m/s Accuracy (≤ 10 m/s) ± 1 m/s Accuracy (>10 m/s) ± 5 % i Accuracy as RMS average value over 360°. Temperature sensor Measuring range -30 ... - Page 9 Universal weather station ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de Service Center Kupferstr. 17-19 44532 Lünen Germany 82590103 30.01.2015 J:0082590103...
