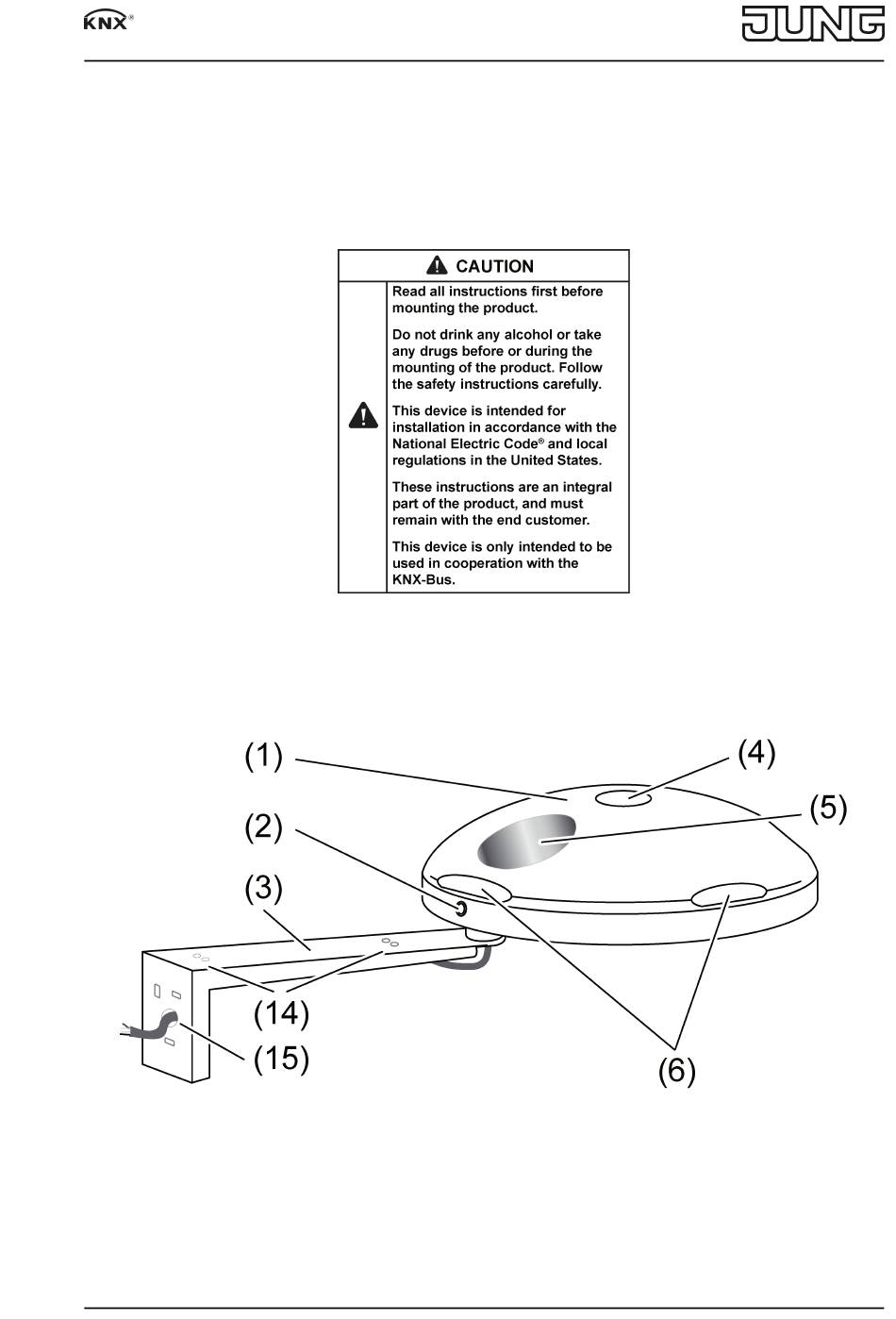

- Page 1 Universal weather station Universal weather station Art. No. : 2225WSU-01 Operating instructions 1 Safety instructions 2 Device components Figure 1: View 82590115 1/10 07.11.2017 J0082590115...
- Page 2 Universal weather station Figure 2: Underside view (1) Sensor head (2) Grub screw for locking (3) Fastening arm (4) Global radiation sensor (5) Precipitation sensor (6) Light and twilight sensors (7) Mounting for fastening arm with bus connection (8) Air humidity sensor (9) Wind speed and wind direction sensor (10) Temperature sensor (11) Guide blade...
-
Page 3: Mounting And Electrical Connection
Universal weather station 4 Information for electrically skilled persons 4.1 Mounting and electrical connection Select mounting location Figure 3: Minimum distance to surfaces 82590115 3/10 07.11.2017 J0082590115... - Page 4 Universal weather station Figure 4: Avoid spray water Figure 5: Maximum load on the fastening arm Select a mounting location in which the weather station is not influenced by local obstacles or shading, such as surrounding trees, chimneys, awnings, etc. The sensor must be able to detect wind, rain, and ambient brightness without impedance.
- Page 5 Universal weather station Mounting a weather station without a fastening arm on a freestanding mast Figure 6: Mounting on a freestanding mast without a fastening arm Use mast with outer diameter <0.98 in (25 mm) and inner diameter >0.75 in (19 mm). Mount the enclosed guide blade (11) in the fields provided next to the connection (7).
- Page 6 Universal weather station Mounting a weather station with a fastening arm on a mast or wall Figure 7: Mounting with fastening arm Mount enclosed fastening arm onto a suitable mast or wall. The enclosed hose clamps are suitable for a maximum mast diameter of up to 2.36 in (60 mm). i When mounting on the supplied fastening arm, do not mount the enclosed guide blade.
- Page 7 Universal weather station Figure 8: Fastening arm – dimensions for boreholes Mounting and connecting the device i Use only cables which are approved for KNX. Connect the bus line and external power supply to the connecting cable. KNX+ Black KNX– orange AC/DC 24 V ~/+ brown...
- Page 8 Universal weather station Align the device Figure 9: Orienting the weather station Align the sensor head in the appropriate direction or – depending on the detailed onsite circumstances – according to the alignment of the facade (figure 9). 4.2 Commissioning Commissioning the device Figure 10: Position of the programming LED and reed contact Switch on the bus voltage.
-
Page 9: Technical Data
Universal weather station 5 Appendix Disposal Please consider your local regulation for disposal and electronic waste recycling. 5.1 Technical data Supply Rated voltage AC/DC 24 V SELV (± 10%) Current consumption 100 ... 400 mA (dependent on the weather) Protection class Connecting cable Cable type LiYCY 4xAWG26... -
Page 10: Warranty
350 Fifth Avenue, Suite 5220 New York, NY 10118 Phone: +1 800.311.6135 Email: sales@jungcontrols.com www.jungcontrols.com For the product warranty, please refer to the attached document. All rights reserved © ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY 82590115 10/10 07.11.2017 J0082590115...
