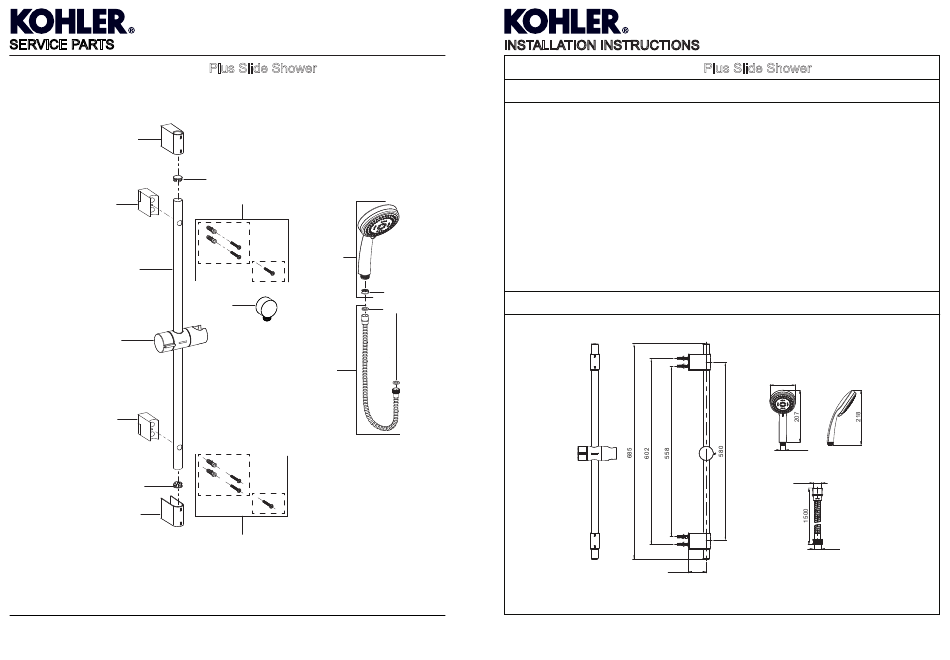

SERVICE PARTS
76665T-E
1190001**
1190000**
1187786**
1190005**
1190000**
1190006**
1190001**
**Color code must be specified when ordering.
1269145-AN2-A
ELEVATION
Plus Slide Shower
1190006**
1061576
1183428**
1030624
1141216**
880010
831727**
1061576
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. An in line water filter must be used with this product.
3. The highest working pressure for handspray is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer is
needed. The highest water and environment temperature is 60°C. Please keep handspray away from heater, or it
may become damaged and cause injury to the user.
4. Don't remove the flow controller or the handspray will be damaged.
5. The slide bar must be mounted to stud framing supports at both the top and bottom mounting locations. Do
not use or depend on plastic wall anchors to attach the slide bar.
6. Observe local plumbing codes.
7. Recommended working pressure: 1 to 5 bar.
8. All installations should comply with the relevant requirements of AS/NZS 3500 and AS/NZS 6400.
ROUGH-IN DIMENSIONS
4
1269145-AN2-A
76665T-E
Plus Slide Shower
Ø102
G1/2˝
G1/2˝
50.4
ELEVATION
G1/2˝
1
Advertisement
Related Manuals for Kohler Elevation 76665T-E
Summary of Contents for Kohler Elevation 76665T-E
- Page 1 Plus Slide Shower BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 2 Slide the handspray holder(9) onto the bar(4). Adjust the holder to the proper position. Do not use abrasive cleaners or solvents on Kohler faucets and fittings. Tighten the slide bar kit with screws(5). Slide the bracket covers(6) onto the bracket, ①...
