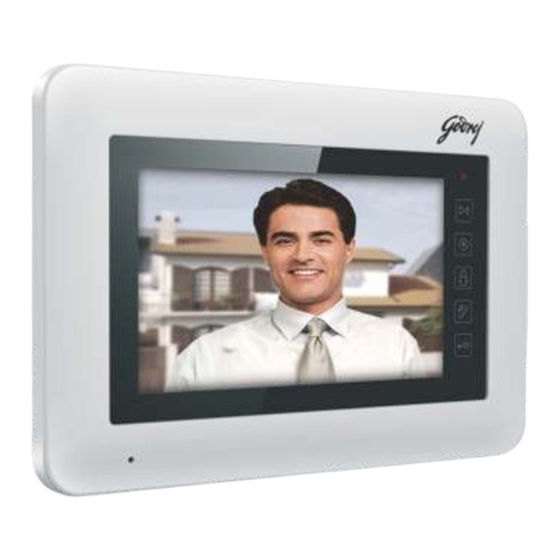

7'' TOUCH SCREEN
Toll-free: 1800 209 9955 | SMS <GSS> to 53636
Email:secure@godrej.com | Visit: www.godrejsecure.com
VIDEO DOOR PHONE
In view of the Godrej Policy of continuous development and improvement, the
dimensions as seen on the catalogue of the product may not match with the actual
product. The colour combinations of the products as seen on this catalogue may
vary and not match with the actual colour of the product due to printing limitations.
An ISO 9001:2008 & ISO 14001:2004. BS OHSAS 18001:2007
Products Marketed and Serviced By Godrej & Boyce Mfg. Co. Ltd.
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Godrej SeeThru
Summary of Contents for Godrej SeeThru
- Page 1 Email:secure@godrej.com | Visit: www.godrejsecure.com VIDEO DOOR PHONE In view of the Godrej Policy of continuous development and improvement, the dimensions as seen on the catalogue of the product may not match with the actual product. The colour combinations of the products as seen on this catalogue may vary and not match with the actual colour of the product due to printing limitations.
-
Page 2: Table Of Contents
Table of Contents 1. Name and Functions of Each Part ......2 Front Part ........2 Rear Part . -
Page 3: Name And Functions Of Each Part
WARNING AND CAUTION 1. Name and Functions of Each Part Please make sure to follow the instructions to prevent any danger or 1.1 Front Part property losses Warning: Death or serious injuries are expected Do not disassemble, install, or repair this product on your own accord Do not place the product near a hot or humid place Do not forcibly bend the cord or put a heavy object on the product Do not use water, thinner or a detergent used to wash oil products... -
Page 4: Rear Part
1. Name and Functions of Each Part 1. Name and Functions of Each Part 1.2 Rear Part Part Name Description Power Indicator Review Button Touch button for reviewing picture or video Intercom Button Touch button for intercom Monitor Button Touch button for monitoring Talk Button Touch button for talking with visitor Door Release Button... -
Page 5: Features And Functions
2. Features and Functions 3. Packing Contents 2.1 Features • 7” TFT-touch screen, 800×480 Resolution • Support 2 door stations, 4 CCTV cameras, 1 master monitor + 3 extension monitors, 1 audio phone and 1 CCTV output • Built-in flash memory:100 pictures •... -
Page 6: Connection Diagram
4. Connection Diagram 4. Connection Diagram 4.1 System Layout • CCTV connection mode 2 Only master monitor can connect to CCTV, extensions get CCTV video There are two CCTV connection modes. from the master. The extensions monitor CCTV by sending requests to the •... -
Page 7: Wiring Diagram
4. Connection Diagram 4.2 Wiring Diagram Please be careful to wiring on polarity. • Intercom wiring diagram with one monitor • Intercom wiring diagram with master monitor and extensions (pay attention to the impedance matching switch) - Page 8 4. Connection Diagram • CCTV connection mode 1 Each monitor can connect to different CCTV, can and can only monitor the connected CCTV. • CCTV connection mode 2 Only the master can connect to CCTV, extensions get CCTV video from the master.
-
Page 9: Installation
5. Installation 5. Installation 5.1 Installation Location 5.2 Wire & Monitor Installation Monitor installation location 1) Push down the button Standard monitor installation height is about 1,500mm where screen with screwdriver centre is at eye level; in this case, wall-hanging metal centre is 1,450mm 2) Put the wire into the above ground level. -
Page 10: Operation Description
6. Operation Description 6. Operation Description Icon Definition: 6.1 Main Screen It will show corresponding functions when pressing each icon on main screen. Home/Leaving/Do Not Disturb enter [Camera] enter [CCTV] page enter [Video] page enter [Image] page enter [Voicemail] page enter [Photo Frame] page enter [Intercom] page enter [Telephone] page... -
Page 11: Main Screen
6. Operation Description 6. Operation Description 6.2 Visitor Call CAM1 2013-05-16 15:07:19 When door station calls in, the visitor’s image will be shown on the monitor screen (on-screen duration 90 seconds). CAM1 2013-05-16 14:43:12 Master Ext. 1 Ext. 2 Ext. 3 Change Record Setting... -
Page 12: Monitor Function
6. Operation Description 6. Operation Description 6.3 Monitor Function CAM1 2013-05-16 14:43:12 When you press the [Camera1] / [Camera2] or [CCTV1] / [CCTV2] / [CCTV3] / [CCTV4] icon on main screen, the system will enter monitor mode, and will show image from the corresponding door station / CCTV. Volume Remark: The [Transfer] buttons will be in disable status under monitor Brightness... -
Page 13: Image & Video Review
6. Operation Description 6. Operation Description 6.4.2. Image & Video Review CCTV 1 2013-05-23 16:53:12 IMAGE: 0001/1006 Press [Image] or [Video] on main screen, you can review the image/video. There are 6 images/videos in one page. The image/video with white borderlines means that the image is selected. - Page 14 6. Operation Description 6. Operation Description Icon Definition: Icon Definition: List: view audio play previous clip return to [Main Screen] return to [Main Screen] message leave a voice message leave a voice play play next clip For Family For Guest for family message for guest delete...
-
Page 15: Photo Frame Function
6. Operation Description 6. Operation Description 6.4.4. Photo Frame Function 6.5 Intercom Function Press [Photo Frame] on main screen, monitor will play the image one by Press the [Intercom] icon on main screen, choose the monitor you want to one automatically. call, and then press [Call], and then you can talk with the corresponding monitor. -
Page 16: Telephone
6. Operation Description 6. Operation Description Icon Definition: 6.6 Telephone The Monitor can support telephone function: enable/disable [Mute] function • Make and receive a telephone call • Transfer the call from door station to a specific mobile phone or fixed adjust volume phone and control the door station via telephone enable/disable call forwarding function... -
Page 17: Control The Door Station By Telephone
6. Operation Description 6. Operation Description 4. Set ring time before call forwarding, 6.7 Setting page *5* → Ring Time → # → OK Press [Setting] icon to set up the system. Icon Definition: Remark: The ring time range = [1s ~ 30s], and you must input 2 figures. For example: return to [Main Screen] enter [Camera] setting page... - Page 18 6. Operation Description 6. Operation Description [Camera] setting page [Monitor Record] setting page In this page, you can turn [Motion Detect] on or off, set one camera as In this page, you can default for monitoring, set default camera for motion detection, set •...
- Page 19 6. Operation Description 6. Operation Description [Voicemail] setting page [Intercom] setting page In this page, you can select one voicemail for guest as the message to play In this page, you can under [Leaving] mode. • Turn [Intercom Receive Enable] on or off Remark: The Voicemail message is stored on the TF card.
- Page 20 6. Operation Description 6. Operation Description [General] setting page [Melody] setting page In this page, you can set up date & time; select a language and CCTV In this page you can: mode. Default option - CCTV mode 1. • Turn [Touch Tone] on or off Remark: The CCTV mode of every monitor should be the same.
-
Page 21: Specifications
7. Specifications Notes Category Specification Input power AC: 100V ~ 240V, 50Hz/60Hz DC: 14.5V Power consumption Max:12W, standby: 5W TFT LCD 7 inch digital TFT LCD LCD resolution 800 (RGB) × 480 Connection with door station Support two 4-wire door stations Connection with CCTV Support four 2-wire CCTV input Connection with extension... - Page 22 Notes Notes...
