Step 7.
1.
2.
Step 8.
TouchKit to connect the camera module to
the USB output port of the controller board.
Step 9.

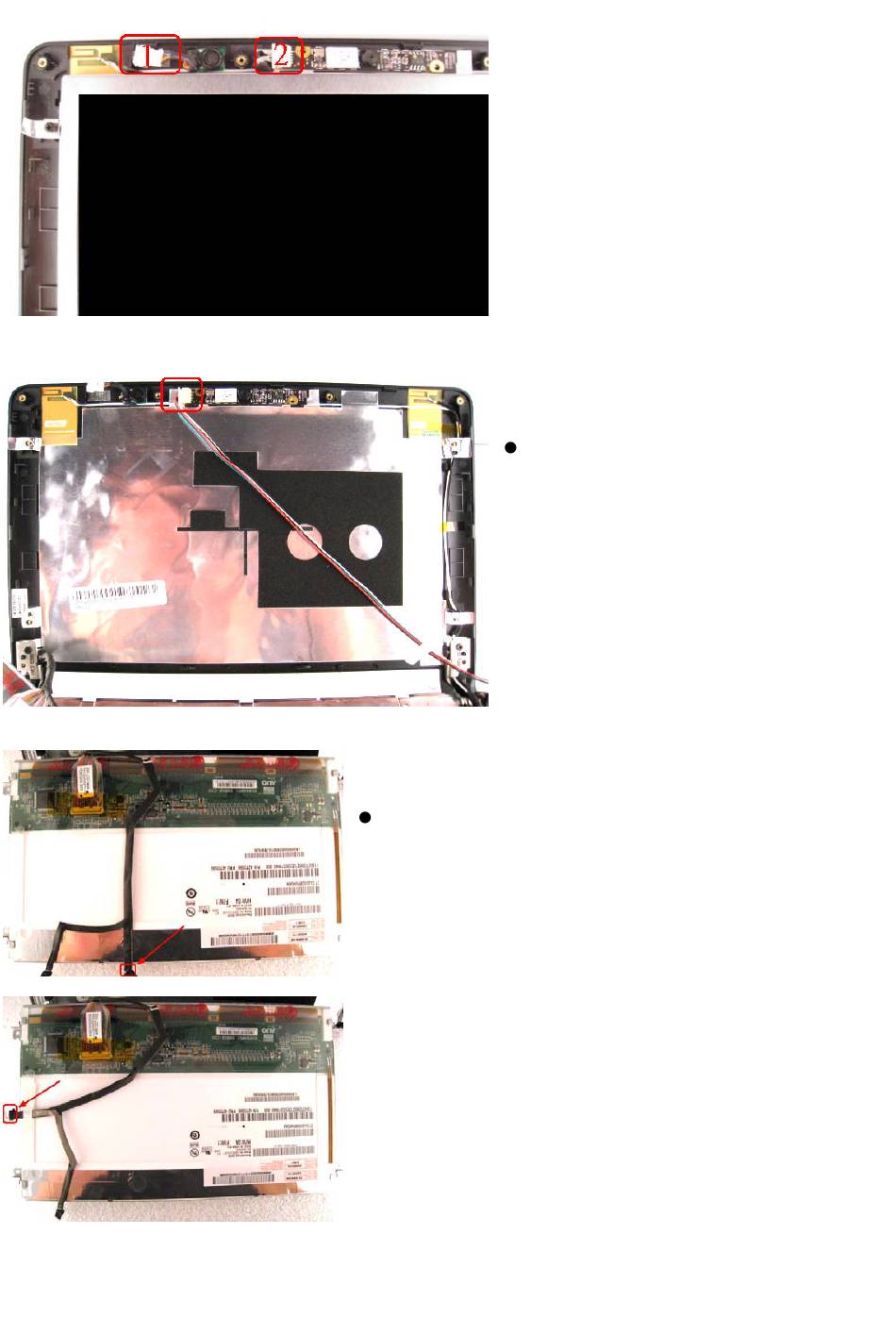

Move the camera connector from the top to the left
location of the LCD module indicated by the pictures. This
connector will be used as USB input for the controller board.
Remove microphone connector.
Remove camera module connector.
Use Camera Harness provided in the
