Malone MPG475 Assembly Instructions

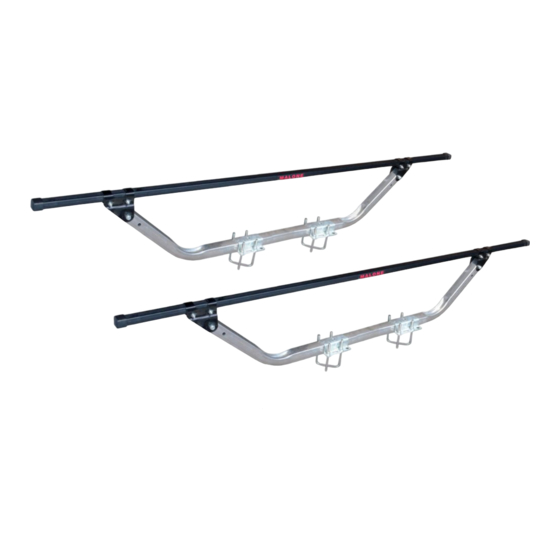

Crossbar kit

MPG475

Crossbar Kit

Model MPG475 Assembly Instructions

Take a few moments and read through these instructions to familiarize yourself

with the step by step assembly process before you begin turning wrenches.

Required Tools:

• (2) 9/16" wrenches

• (1) 7/16" wrench

Visit us at maloneautoracks.com

for more ﬁ ne products and accessories.

technical@maloneautoracks.com

800-295-0042 ext 206

Table of Contents

Do you have a question about the MPG475 and is the answer not in the manual?

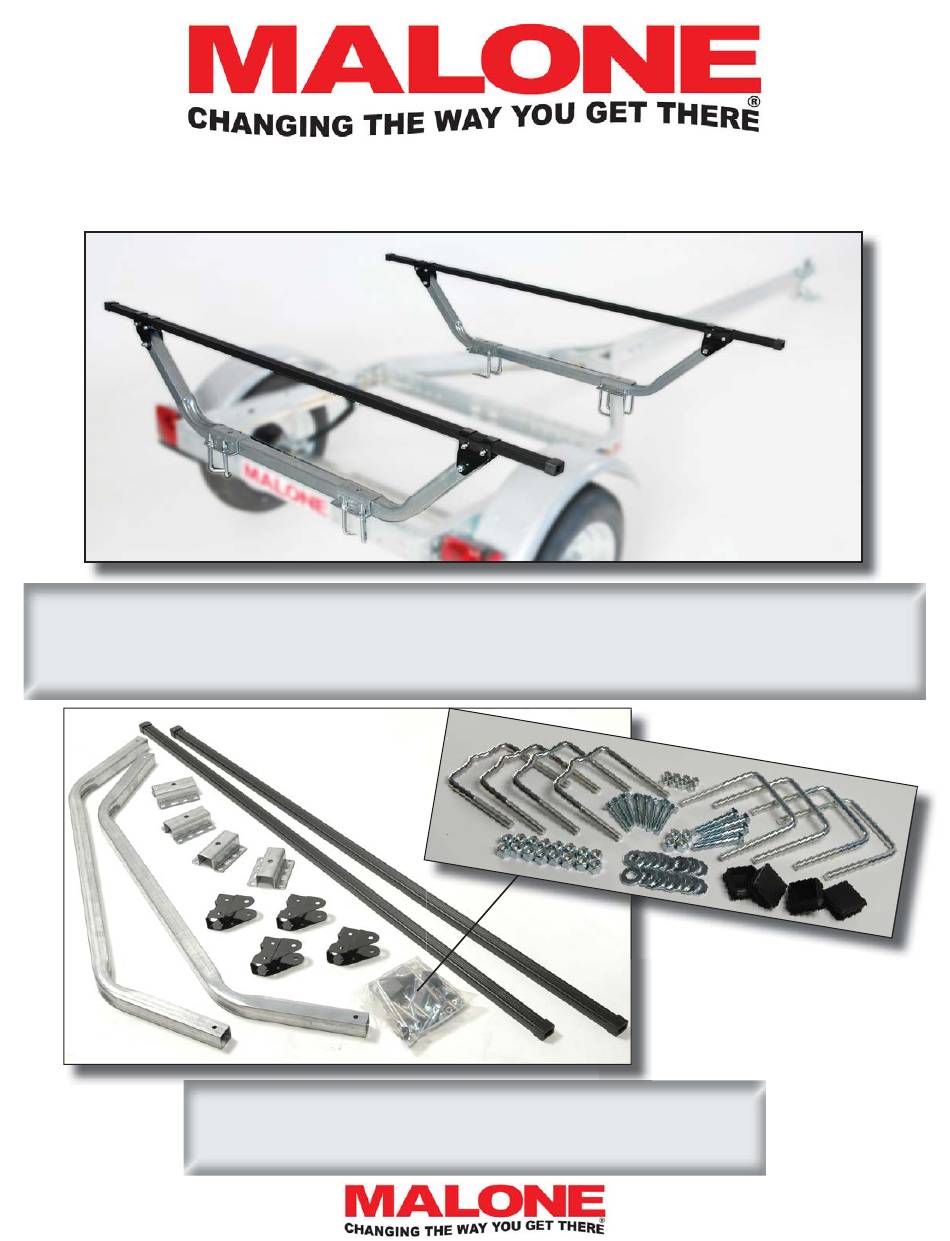

Page 1 MPG475 Crossbar Kit Model MPG475 Assembly Instructions Take a few moments and read through these instructions to familiarize yourself with the step by step assembly process before you begin turning wrenches. Required Tools: • (2) 9/16” wrenches • (1) 7/16” wrench Components: Visit us at maloneautoracks.com...
Page 2 MPG475 1. Attach a support tube onto the trailer’s rear cross member. Cross the U-bolts under the member as shown, using one straight and one dimpled U-bolt. Center the support tube and brackets on the trailer, then tighten. 2. The forward support tube should be mounted about 48”...
Page 3 MPG475 5. With the grooved side of the crossbars facing up, slip the crossbar brack- ets over the crossbars (as shown) with the mounting holes towards the middle. Loosely install two small carriage bolts through each bracket. They trap the crossbars inside the brackets.
Page 4 MPG475 7. Center the load bars to the trailer, then fully tighten all 12 crossbar bracket bolts. 8. Go back over and and re-check that all nuts and bolts are securely tightened. Your ﬁ nished crossbar kit installation should look something like this.
