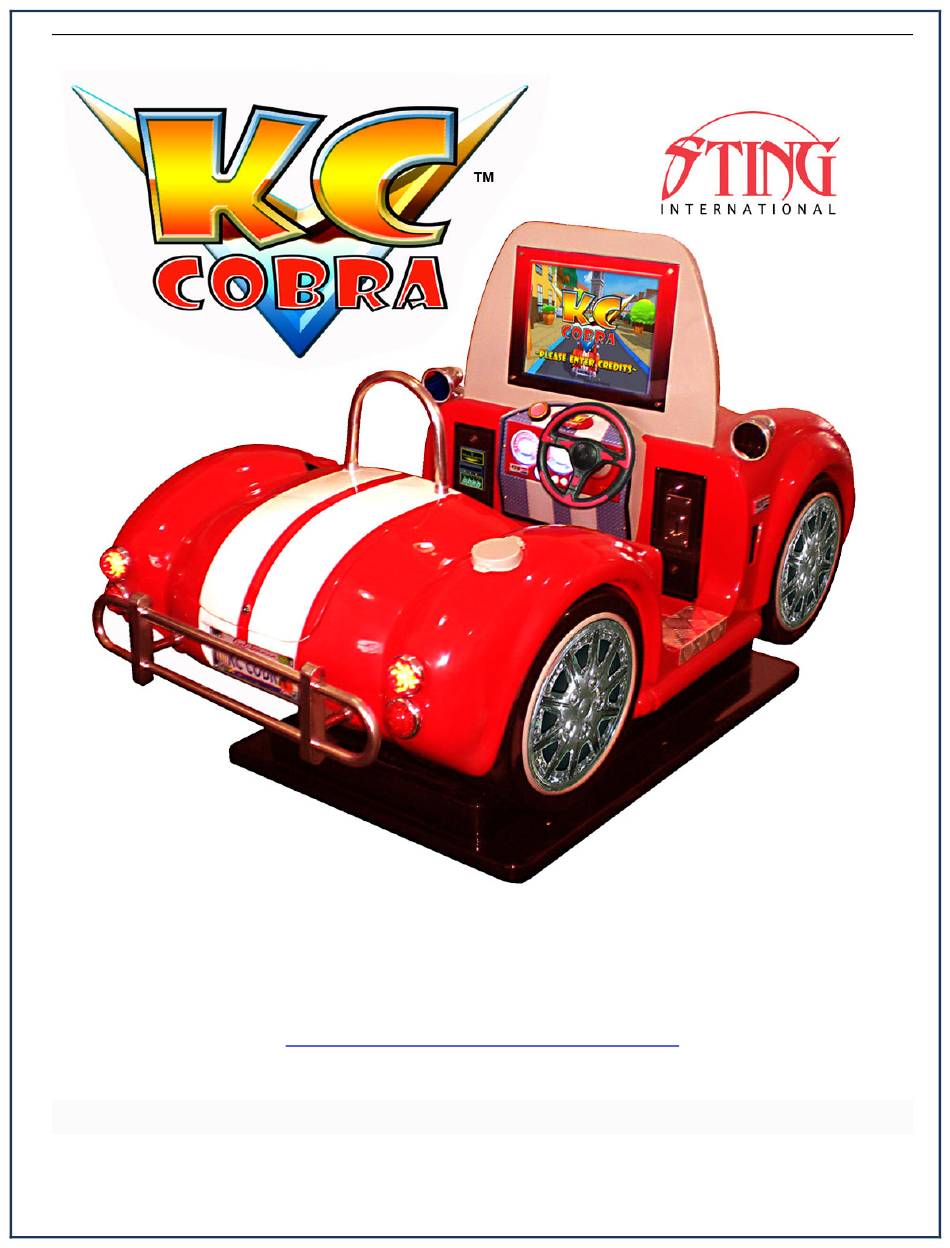

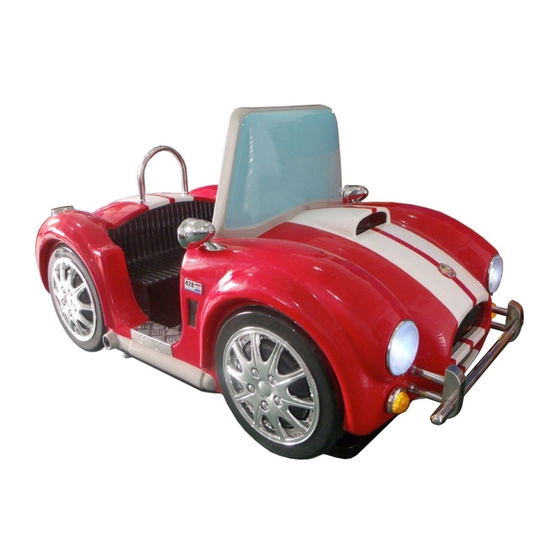

- Page 1 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM GAME OPERATION & INSTRUCTION MANUAL FOR ALL PARTS, SERVICE, AND TECHNICAL SUPPORT PH O N E: 708-598-3720 FAX: 708-598-3720 W W W .FAM ILYFU N CO M PAN IES.CO M STING INTERNATIONAL, © 2013 ALL RIGHTS RESERVED...
- Page 2 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM THIS GAME IS INTENDED FOR INDOOR USE ONLY...
-
Page 3: Table Of Contents
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM CONTENTS 1. SPECIFICATION ......................... 1 2. INTRODUCTION ......................... 2 2-1 OVERVIEW ........................2 2-2 IMPORTANT SAFETY INFORMATION ............... 3 2-3 SET UP......................... 3 3. PACKAGE CONTENTS ...................... 4 4. INSTALLATION ........................4 4-1 LOCATIONS TO AVOID.................... -
Page 4: Specification
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 1. SPECIFICATION (1) Dimension: L2070mm，W1080mm，H1170mm W43” x D81” x H44” (2) Weight: 164KG 331 Lbs. (3) Voltage: AC 110V -120V, 220-240V 50Hz-60Hz； (4) Power: 68W-500W（when playing, the more load, the higher the power required） (5) Current：0.9A-10A Note：Please refer to the nameplate at the back of game for the actual voltage (6) Environment: (indoor) temperature -10... -
Page 5: Introduction
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 2. INTRODUCTION 2-1 OVERVIEW Thank you for purchasing the KC-COBRA video game ride. This owner’s Manual is intended to provide detailed descriptions together with all the necessary information regarding the general operation of electronic assemblies, servicing control, spare parts, etc., pertaining to the game. -
Page 6: Important Safety Information
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 2-2 IMPORTANT SAFETY INFORMATION Unplug the game from the AC wall receptacle when servicing this product. Failure to do so could result in serious injury to yourself or others. ... -
Page 7: Package Contents
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM PACKAGE CONTENTS Be sure to check that you have received all packages indicated below. Game Unit Accessories Name Specification Picture Qty. Remark Manual English version Ticket door、coin door、 GUO711 coin box、service door Power... -
Page 8: Locations To Avoid
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 4-1 LOCATIONS TO AVOID WARNING The machine is designed for indoor use only. Never install this machine outdoors or in any of the following: ● Locations exposed to direct sunlight ●... -
Page 9: Connecting The Power Cord
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM WARNING Disconnect game power before moving. Make sure all wheels are intact. Replace any wheels that are damaged or broken before moving the game. When moving the game, DO NOT slide the game across the floor. ... -
Page 10: Parts Description
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM ● Hold the power plug instead of the wire to draw the power cord out of the socket. ● Do not touch the power plug with wet hands. ● Do not draw or twist the cord or store near any high heat source. ●... -
Page 11: Ticket Mechanism（Entropy
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM BASE：Base Mech PROTECTION SKIRT： Prevent Player from reaching base FIBERGLASS CAR：Main game（KC COBRA） CHROME WHEEL COVER: Decoration 19”LCD MONITOR：For game video STEERING WHEEL：Control car on video to move left and right “JUMP”... -
Page 12: Bill Acceptor Option (Operator Installed)
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Feed the tickets into the mechanism making sure that the ticket passes through the sensor. Replace the ticket retainer to secure tickets into position. Press the TEST button on the PCB to draw tickets through the mechanism and out of the door. Close the Ticket Door, tear off any excess tickets. - Page 13 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 1. Press the buttons on the sides of bill path unit and pull the unit out. 2. Use a soft, dry cloth or towel to clean the bill path and sensors. CAUTION Do not use an organic solvent such as gasoline or paint thinner to clean the unit.
- Page 14 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM DIAGNOSTICS Bezel LED (Green LED) LED ON = OK LED OFF =POWER OFF LED Flashes Status Corrective Actions Bill jammed Remove the bill box by sliding the top button and the bill path unit (as above figure), and then remove the jammed bill.
-
Page 15: Coin Mechanism（Mechanical）D-200
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Out sensor error. Inspect for foreign objects on (Optional) sensor or bill path and clean. Bill box has been removed. Replace the bill box. Stacker error or stacker full. Empty the bill box. - Page 16 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM INSTRUCTION OF ELECTRONIC COIN COMPARATOR TYPE Continued on the following page; A. REMOVE THE PLASTIC COIN FROM COIN SLOT, REPLACE WITH THE DESIRED TOKEN OR COIN INSIDE THE SPRING TENSIONED COIN HOLDER. B.
-
Page 17: Trunk
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 6-6 TRUNK MAIN FRAME SERVICE DOOR MAIN BOARD SERVICE DOOR KEY GUA711, open the service door to service the computer host, circuit board etc HOST COMPUTER 1 POWER INLET 2 CVI 3 VGA 4 NETWORK CONNECTION... -
Page 18: Service
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 7. SERVICE Please remove fiberglass car body completely off when servicing the base. When removing the body to access the base you should follow the instructions below. Turn off power, unscrew screws around skirt and remove the skirt Open back door, disconnect ALL connectors at both sides . - Page 19 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Unscrew and remove the 2 screws on fixed board, and slide (pull) out fixed board and the all electrical parts on it. See the circle on picture Move out Look through the empty back door, you can see the long screw which fastens the fiberglass car and base.
- Page 20 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM With two persons assisting, carefully raise up the fiberglass car and remove it from base. (2 persons are necessary to raise up the fiberglass car body) 7. Service the base assembly mechanism and motor after removing the fiberglass car body. NOTE：...
-
Page 21: Control Signal And Instruction
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM CONTROL SIGNAL AND INSTRUCTION 8-1 PCB LAYOUT P1，P2，P3，P4 are for signal input port，P9，P10，P11 are signal output port, J1 is for USB ，P12 is for power。... -
Page 22: How To Enter Into Menus
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 8-2 HOW TO ENTER INTO MENUS Open the coin door and you will see the Setting/Meter Panel at the top of coin box; To enter the Menu state on screen- Press: “MENU” inside the door on this Setting/Meter panel, then you will see the screen as below. - Page 23 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Figure 1 After enter password, press “MENU”, move to ENTER, then press; “OPTION” to enter into next page（see figure 2 ） Pressing “Menu” again and again advances through all of the various Menus available. Pressing “OPTION”, when in any given Menu, will highlight the Option desired and step through the options of that Menu.
- Page 24 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Figure 2 If desired, please set the desired password or leave at the default, 0-0-0-0. Figure 3...
- Page 25 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM CREDITS PER PLAY REQUIRED 1——8 AVERAGE GAME TIME 30 Sec——120 Sec TICKET OPTION ON/OFF TICKET MECHANISM ENABLE/ DISABLE MERCY TICKET OPTION 0——8 TICKET TYPE 1PT/ 2PT BONUS TIME OPTION ON/OFF BONUS TIME 5 Sec——30 Sec...
- Page 26 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Figure 5 EXIT THE MENU AND RETURN TO NORMAL GAME PLAY FROM ANY MENU SCREEN EXCEPT “TEST” BY PRESSING THE “JUMP” BUTTON.
-
Page 27: Instruction Of Game Play
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 9. INSTRUCTION OF GAME PLAY 9-1 GOAL ICONS GOAL IMAGE FUNCTION ADD SCORE, 1 POINT (TOWARDS GOLD COIN TICKET REWARDS IF TICKET FUNCTION IS ENABLED) OIL CAN TURBO SPEED REWARD 9-2 HOW TO PLAY Insert the proper Credits and the game will begin at various points throughout the course;... - Page 28 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM Press “JUMP” button to collect the higher coin or to avoid all obstacles throughout the game. When the Time runs out, the game will end. Tickets will be dispensed according to the total score after the game has ended. (Ticket version when enabled)
-
Page 29: General Troubleshooting
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM GENERAL TROUBLESHOOTING Symptom Possible Problem Solution POWER POWER Sound Problems Low Volume Check Volume Control and adjust as -No sound necessary -Low Sound Faulty speaker harnessing Check connections and/or repair -Intermittent harnessing Sound... -
Page 30: Part List
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 11. PART LIST 11-1 BASE MECH ASSY PART CODE REMA FOR BASE DESCRIPTION SPECIFICATION FRAME COB-M-01 BOTTOM FRAME Q235 COB-M-02 MAIN MOTION FRAME Q235 COB-M-03 UP MOTION FRAME Q235 COB-M-04 PLATE FOR MOTOR Q235... - Page 31 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM COB-M-09 SLEEVE Q235 COB-M-10 PULL ROD Q235 COB-M-11 PLAIN BEARING INSIDE TEETH M20 COB-M-12 PLAIN BEARING INSIDE TEETH M16 COB-M-13 PLAIN BEARING OUTSIDE TEETH M16 CHAIN（5 CHAIN） COB-M-14 23 KNOB COB-M-15 CASTER 2.5’’...
-
Page 32: Hardware Component
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 11-2 HARDWARE COMPONENT SPECIFICATION/ DESCRIPTION IMAGES MATERIAL HOST COMPUTER POWER SUPPLY OUTPUT12V/12.5A POWER AMPLIFIER GC-2.2 BOARD MAIN BOARD Ver2.2 20100130-6A RELAY LJQX-38F/40A RELAY BASE LJQX-38F-11A FIXED PLATE BLACK WOOD “U”... - Page 33 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM MAIN CONTROL I/O PCB KCC-US-002 TRUNK Ver2.2 20100130-6A MAIN POWER SUPPLY KCC-US-003 TRUNK OUTPUT12V/12.5A POWER AMPLIFIER PCB KCC-US-004 TRUNK GC-2.2 RELAY AND BASE KCC-US-005 TRUNK SETLJQX-38F/40A KCC-US-006 AUDIO CABLE Q-562A TRUNK KCC-US-007 LINK CABLE USB Q-515...
- Page 34 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM GAS PEDAL KCC-US-018 FLOOR INSIDE ASSEMBLY PROTECTION SKIRT KCC-US-019 BOTTOM PVC BLACK FRONT LAMP COVER KCC-US-020 FRONT LA8020B(CHROMING) KCC-US-021 FRONT LAMP LED PCB FRONT FRONT LAMP SET KCC-US-022 FRONT SQ-17 YELLOW BACK LAMP SET SQ-17 KCC-US-024...
- Page 35 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM TICKET/DBV OPTION LEFT OF KCC-US-035 FRAME SET/DBV门 MONITOR COIN BOX AND COIN RIGHT OF KCC-US-036 MECH FRAME SET MONITOR FLOOR PLATE; KCC-US-037 FLOOR AREA DECORATION PATTERN THRESHOLD STEP KCC-US-038 COVER RIGHT AND ENTEANCE/EXIT LEFT...
- Page 36 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM KCC-US-051 DRIVEN CHAIN WHEEL BASE FRAME KCC-US-052 MOTION BEARING BASE FRAME KCC-US-053 ECCENTRIC BLOCK A BASE FRAME KCC-US-054 ECCENTRIC BLOCK B BASE FRAME KCC-US-055 GU0711 TRUNK DEEO GROOVE BALL KCC-US-056 TRUNK BEARING 6202...
- Page 37 LABEL KCC-US-073 SERIAL NO. LABEL STING INTERNATIONAL, P.O. BOX 455, ELK GROVE VILLAGE, IL 60007 USA E-mail: sting2 @ rcn.com. FOR ALL PARTS, SERVICE, AND TECHNICAL SUPPORT PH O N E: 708-598-3720 FAX: 708-598-3720 W W W .FAM ILYFU N CO M PAN IES.CO M...
