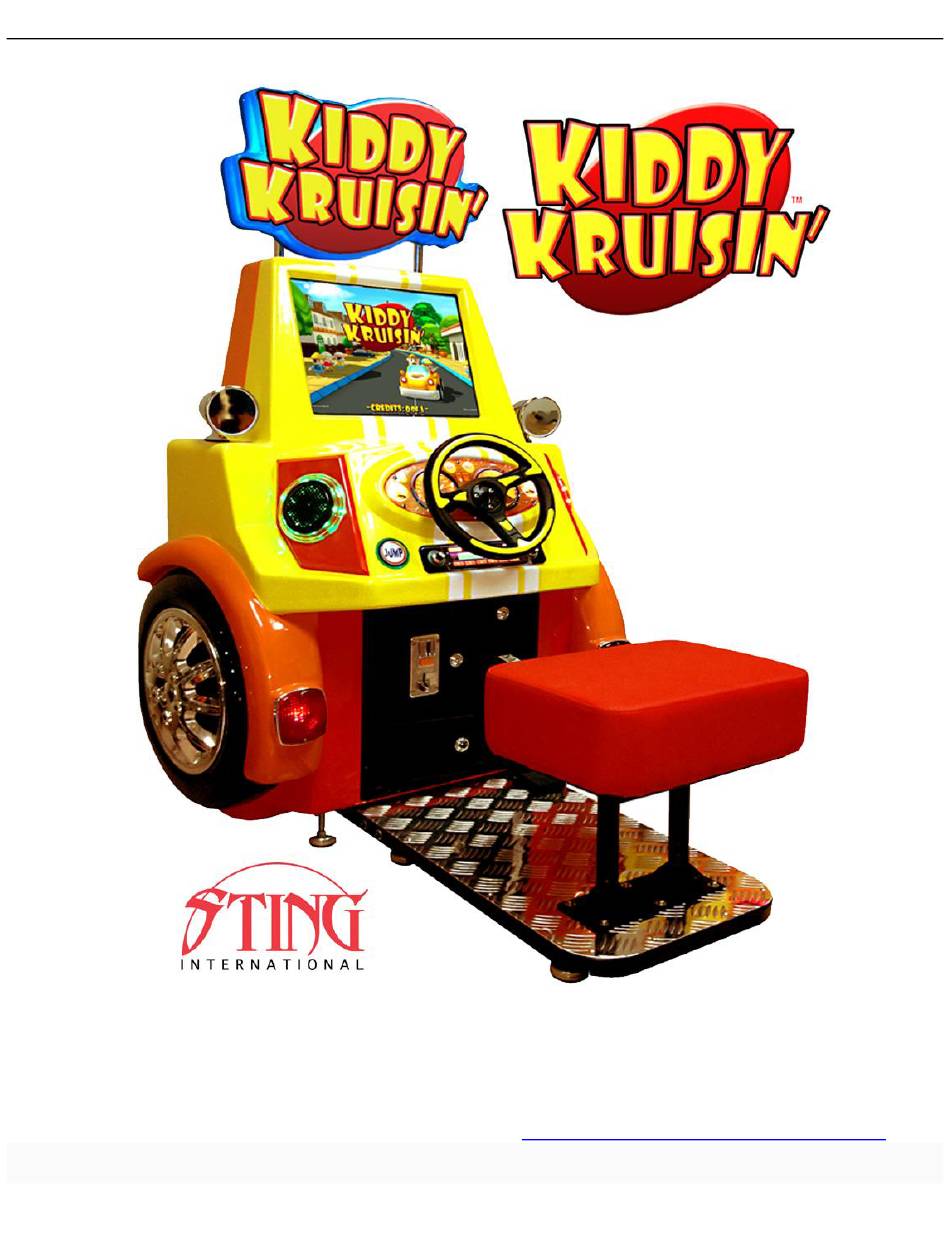

- Page 1 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM GAME OPERATION & INSTRUCTION MANUAL FOR ALL PARTS, SERVICE, AND TECHNICAL SUPPORT PHONE: 708-598-3720 FAX: 708-598-3720 WWW.FAMILYFUNCOMPANIES.COM STING INTERNATIONAL, © 2013 ALL RIGHTS RESERVED...
-
Page 2: Table Of Contents
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM “KIDDY KRUISIN UPRIGHT” TABLE OF CONTENTS 1. GAME FEATURES .…………..……………………………………………………3 2. PLAY INSTRUCTIONS .………..………………………………………………….3 3. DIMENSIONS & TECHNICAL PARAMETERS .…..…………………………..4 4. PARTS OF THE MACHINE .……….…………………………..……………...5 5. INTEGRAL STRUCTURE OF THE GAME ..…………………….……………...7 6. -
Page 3: Game Features
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 1. GAME FEATURES 1. FULL GELCOAT FIBERGLASS CABINET IS RICHLY DETAILED AND FEATURES MANY CUSTOMIZED PARTS AND HIGHLIGHTS SUCH AS WORKING TURN SIGNAL LAMPS, and LIGHTED DASH PANEL. 2. INTUITIVE VIDEO GAME PLAY FEATURES A 3D PC DATABASE AND FULLY INTERACTIVE COURSE WITH CHALLENGES FOR ALL AGES. -
Page 4: Dimensions & Technical Parameters
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 3. DIMENSIONS & TECHNICAL PARAMETERS (1) GAME DIMENSIONS： OCCUPIED AREA: W85CM * D107CM * H150CM (W33.5” * D42.1” * H59”) MAIN CABINET ASSY: W85CM * D55CM * H150CM (W33.5” * D21.7” * H59”) SEAT BASE AND ASSY : W40CM * D75CM * H45CM (W15.8”... -
Page 5: Parts Of The Machine
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 4. PARTS OF THE MACHINE REFER TO THE CHART BELOW FOR THE MACHINE PARTS LOCATIONS AND THE CONTENTS OF THE SPARE PARTS KIT SUPPLIED WITH THE GAME. SPARE PARTS KIT CONTENTS DESCRIPTION SIZE UNIT... - Page 6 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 4.1 “U”-DISC SYSTEM BACK UP [GAME SOFTWARE REINSTALL] IN THE UNLIKELY EVENT YOUR GAME SOFTWARE SHOULD BE INTERRUPTED AND THE GAME FAIL TO LOAD PROPERLY, THIS “U” DISC INCLUDED WITH YOUR GAME MAY BE USED TO RESTORE THE GAME SOFTWARE OPERATING SYSTEM.
-
Page 7: Integral Structure Of The Game
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 5. INTEGRAL STRUCTURE OF THE GAME LIGHTING BOX MAIN PC & I/O ACCESS LID (LOCKING, BACKSIDE) 19” LCD MONITOR MIRROR (2) SPEAKERS (2) STEERING WHEEL DASHBOARD “JUMP” BUTTON TICKET COIN MECHANISM DISPENSER FRONT LIGHT... -
Page 8: Installation Of The Game
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 6. INSTALLATION OF THE GAME (1) INSTALLATION GUIDANCE. THE MACHINE MAY ONLY BE USED IN A SAFE, INDOOR ENVIRONMENT. USE OF THE GAME OUTDOORS IS PROHIBITED. -
Page 9: Power Supply
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 7.POWER SUPPLY (1) POWER SUPPLY INPUT; MAIN POWER SWITCH FUSE HOLDER TUBE AND COVER AC CORD INLET (2) THIS MACHINE USED FOR POWER 110V/AC 50/60Hz, (or, 220V±5% 50HZ). FOR THE SPECIFIC VOLTAGE USE, PLEASE REFER TO THE GAME’S NAME PLATE. -
Page 10: Hardware Components
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 8. HARDWARE COMPONENTS POWER AC ADAPTOR SUPPLY AC ADAPTOR FOR FOR LCD HOST PCSUPPLY MONITOR HOST PC I/O BOARD AUDIO AMPLIFIER... -
Page 11: Driving Video Game Software Description
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 9. DRIVING VIDEO GAME SOFTWARE DESCRIPTION (1) GAME ATTRACT & DEMO SCREEN:... - Page 12 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM CURRENT PLAY TIME SCORE REMAINING GAS TANK PLAYER’S TURBO VEHICLE REWARD BONUS (TIME EXTENDED) CURRENT SPEED COINS = 1 PT. SCORE...
- Page 13 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM WHEN THE TICKET FUNCTION IS ENABLED AND A TICKET MECHANISM IS INSTALLED [NO DBV], GAME SCORES ARE TOTALLED AND CONVERTED INTO TICKET AWARDS WHICH ARE DISPENSED AT THE END OF THE GAME ACCORDING TO THE DESIRED TICKET PAYOUT SETTING WITHIN THE OPERATOR MENU AND ADJUSTMENTS.
- Page 14 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM OPEN THE COIN DOOR AND YOU WILL SEE THE SETTING/METER PANEL AT THE TOP OF COIN BOX; TO ENTER THE MENU STATE ON SCREEN- PRESS: “MENU” INSIDE THE DOOR ON THIS SETTING/METER PANEL, THEN YOU WILL SEE THE SCREEN AS BELOW.
- Page 15 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM AVAILABLE. PRESSING “OPTION”, WHEN IN ANY GIVEN MENU, WILL HIGHLIGHT THE OPTION DESIRED AND STEP THROUGH THE OPTIONS OF THAT MENU. WHEN ALL OF THE MENU OPTIONS ARE CHOSEN- OR AT ANY TIME- THE OPERATOR SIMPLY CAN PRESS THE “JUMP”...
- Page 16 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM...
-
Page 17: Wiring Diagrams
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 10. WIRING DIAGRAM... -
Page 18: Parts List
SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM 11. GAME PARTS LIST AND LOCATION PART PART'S LOCATION IMAGE UNIT NAME INSIDE BACK KKU-001 HOST PC CABINET UPPER INSIDE BACK KKU-002 I/O BOARD CABINET UPPER INSIDE BACK AUDIO AMP KKU-003 CABINET LOWER... - Page 19 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM INSIDE BACK SIGNAL KKU-007 CABINET CABLE UPPER SPEAKER FRONT KKU-008 LAMP LED SPEAKER(S) LEFT & RIGHT FRONT FRONT LEFT KKU-009 FENDER & RIGHT SIDE LAMP LED OF CABINET INSIDE THE HEADER HEADER KKU-010...
- Page 20 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM INSIDE BACK POWER KKU-014 CABINET SUPPLY UPPER INSIDE BACK ADAPTOR KKU-015 CABINET FOR LCD UPPER MONITOR INSIDEBACK ADAPTOR KKU-016 CABINET FOR HOST UPPER POWER LOWER BACK KKU-017 SUPPLY OF CABINET INPUT REAR INSIDE OF...
- Page 21 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM ENTROPY INSIDE KKU-021 TICKET FRONT DISPENSER TICKET DOOR INSIDE COIN KKU-022 FRONT COIN SELECTOR DOOR FOOT PLATE KKU-023 GAS PEDAL BELOW THE TICKET DOOR INSIDE CABINET KKU-024 SPEAKER LEFT & RIGHT SIDE "JUMP"...
- Page 22 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM "JUMP" CONTROL KKU-028 BUTTON PANEL FRONT FRONT LEFT KKU-029 LAMP & RIGHT SIDE COVER FENDER UNDERNEATH FRONT THE FRONT KKU-030 LAMP LAMP FRAME COVERS LEFT & RIGHT THREE IN KKU-031 FRONT ONE DOOR...
- Page 23 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM SEAT METAL SEAT BASE KKU-035 SUPPORT PART PILLAR SEAT BASE METAL KKU-036 PLATE SEAT BASE FLOOR ASSY FRONT STEERING BEHIND THE KKU-037 WHEEL STEERING METAL SET WHEEL ASSY BACK HAND KKU-038 CABINET...
- Page 24 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM UNDERNEATH CASTOR KKU-042 THE MAIN WHEEL CABINET BETWEEN HEADER THE HEADER SIGN KKU-043 SIGN AND SUPORT MAIN POST CABINET COIN BOX KKU-044 3157 LOCK DOOR COIN SELECTOR DOOR & KKU-045 3172 LOCK TICKET...
- Page 25 SERVICE AND TECHNICAL SUPPORT CALL: FAMILY FUN COMPANIES (708) 598-7320 WWW.FAMILYFUNCOMPANIES.COM SEAT KKU-049 SEAT PART CUSHION HEADER HEADER MARQUEE KKU-050 LIGHT BOX COVER GRAPHIC VACUUM FORM FRONT DASHBOARD KKU-051 CONTROL GRAPHIC PANEL FRONT RADIO KKU-052 CONTROL GRAPHIC PANEL SERIAL NO. KKU-053 BACK SIDE LABEL...
- Page 26 LABEL ABOVE THE KKU-058 WARNING LABEL STING INTERNATIONAL, P.O. BOX 455, ELK GROVE VILLAGE, IL 60007 USA E-mail: sting2 @ rcn.com. FOR ALL PARTS, SERVICE, AND TECHNICAL SUPPORT PHONE: 708-598-3720 FAX: 708-598-3720 WWW.FAMILYFUNCOMPANIES.COM STING INTERNATIONAL, © 2013 ALL RIGHTS RESERVED...
