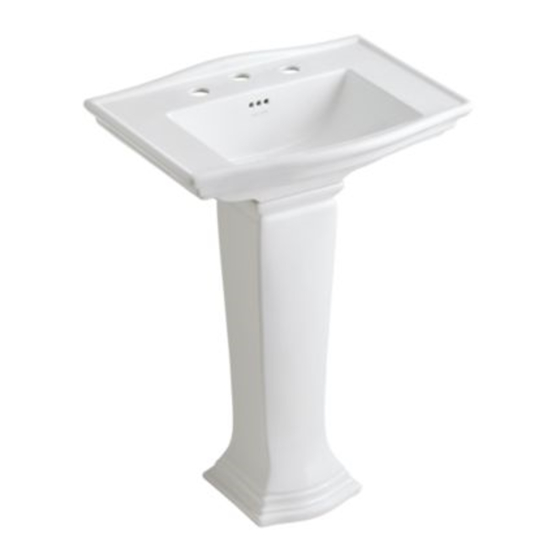

Pedestal bathroom sinks

Advertisement

Installation Guide
Pedestal Bathroom Sinks
P72000, P72016, P72021,
P72030, P72034
1008428-2-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P72000 and is the answer not in the manual?

Questions and answers

Ben Simmons
August 8, 2025

Kallista p24713-00 how do I rough in plumbing for this tub valve?

Summary of Contents for Kallista P72000

  • Page 1 Installation Guide Pedestal Bathroom Sinks P72000, P72016, P72021, P72030, P72034 1008428-2-C...
  • Page 2 The appearance of your pedestal sink may differ from what is shown in these instructions, however, the installation procedure is the same. KALLISTA reserves the right to make revisions in the design of products without notice, as specified in the Price Book. 1008428-2-C...
  • Page 3 4" (102 mm) Finished Wall Finished Wall Finished Floor P72000 P72016 P72021 P72030 P72034 19-3/4" 18-5/16" 17" 21-1/2" 22" (502 mm) (465 mm) (432 mm) (546 mm) (559 mm) 7" 8" 8" 8-3/4" 8-1/2" (178 mm) (203 mm) (203 mm)
  • Page 4 To level the sink, apply self-adhesive gaskets as needed where the pedestal contacts the sink. Locate the two sink anchoring holes, and mark the hole locations on the finished wall. Carefully remove the sink from the pedestal and set aside. Move the pedestal from the area. 1008428-2-C Kallista...
  • Page 5 Carefully set the sink on the pedestal so the hanger bolts extend through the sink anchoring holes. Position the sink as desired. Install the nuts (provided) to the hanger bolts. Level the sink, and carefully tighten the nuts until secure. Do not overtighten. Kallista 1008428-2-C...
  • Page 6 Connect and tighten the trap to the drain. Complete the water supply connections to the faucet according to the faucet manufacturer’s instructions. Run water into the sink and check all connections for leaks. Optional: Apply silicone sealant around the pedestal foot to stabilize. 1008428-2-C Kallista...
  • Page 7 1008428-2-...
  • Page 8 USA/Canada: 1-888-4-KALLISTA Fax: 1-888-272-3094 kallista.com ©2012 KALLISTA 1008428-2-C...

This manual is also suitable for:

P72016P72021P72030P72034
