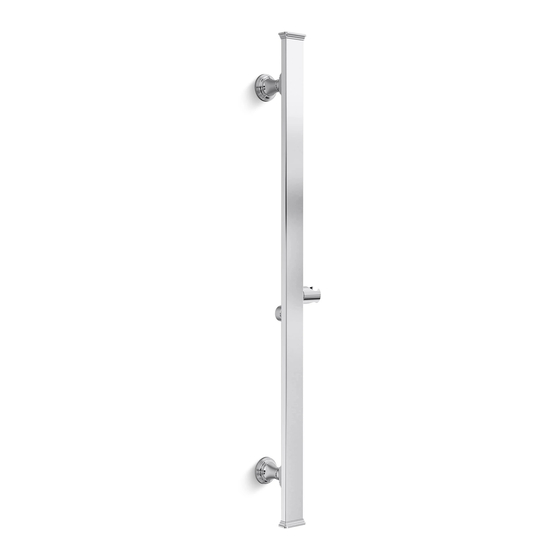

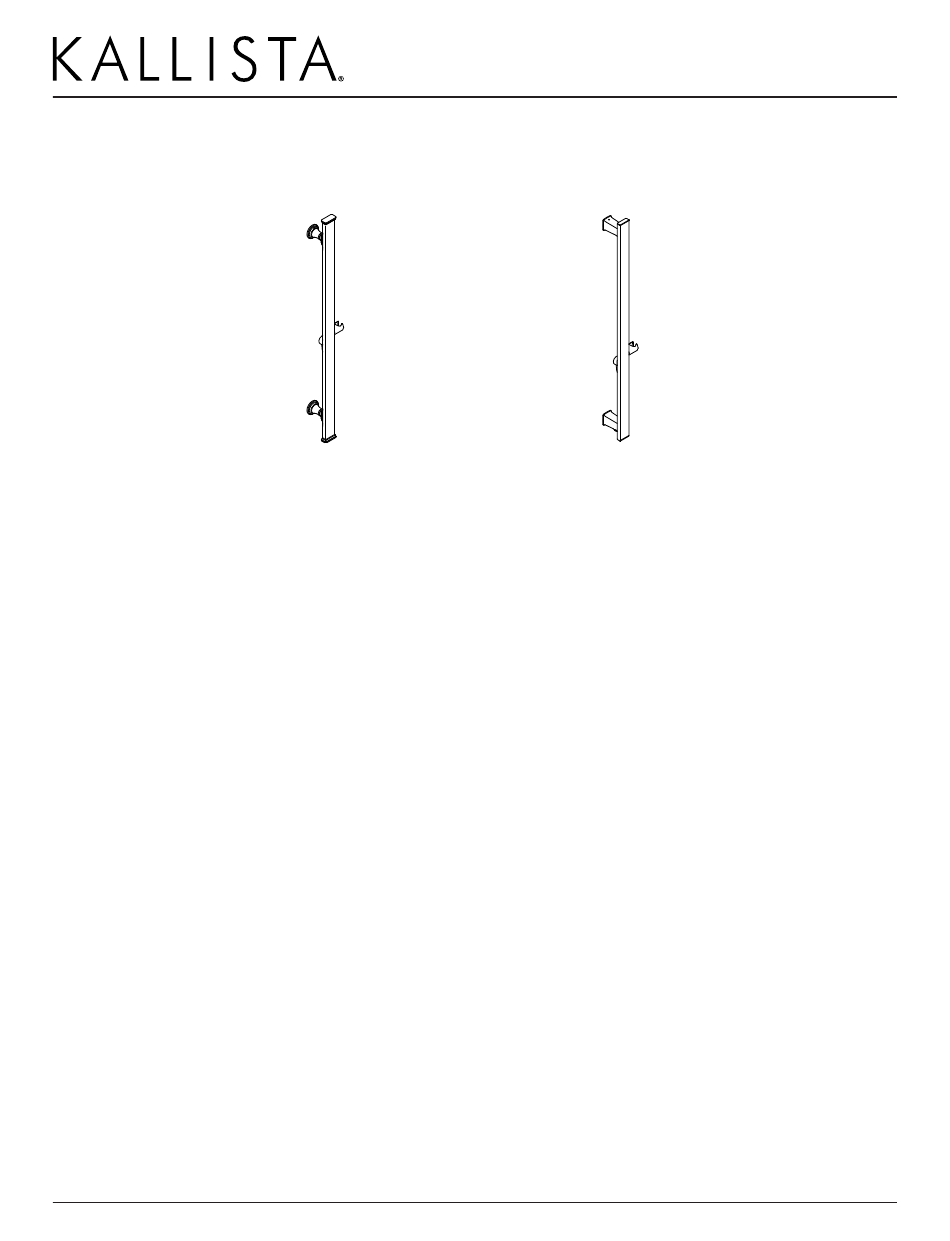

- Page 1 Slidebar INSTALLATION INSTRUCTIONS P21654 P21664 1238521-2-C Questions? Problems? For additional assistance, please contact KALLISTA’s Customer ©2015 KALLISTA 1 of 6 Service Department at 1-888-4-KALLISTA (1-888-452-5547) or kallista.com.
- Page 2 Wood screws must be corrosion-resistant and capable of 300 lbs (136 kg) load bearing per screw. Observe all local plumbing and building codes. Shut off the water supply. KALLISTA reserves the right to make revisions in the design of products without notice, as specifi ed in the Price Book. TOOLS AND MATERIALS 1/2", 3/32"...
- Page 3 Apply sealant tape to the exposed threads on the nipple. Thread the adapter onto the nipple. Tighten the adapter using a 1/2” hex wrench. 1238521-2-C Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 3 of 6 Service Department at 1-888-4-KALLISTA (1-888-452-5547) or kallista.com.
- Page 4 Setscrew Supply NOTICE: These instructions are for P21664 (with integrated supply). For P21654, proceed to the next section. Measure and mark 29-7/8” (759 mm) vertically from the center of the adapter. Make sure the top post adjustment screws are centered in their slots so adjustment can be made in either direction.
- Page 5 ADA = 38" (965 mm) - 41" (1041 mm) From Finished Floor NOTICE: These instructions are for P21654. For P21664 (with integrated supply), go to the previous sections. NOTE: The standard height for supply installation is 48” (1219 mm) from the fi nished fl oor. For ADA applications, the supply height must be between 38”...
- Page 6 If necessary, fi rmly pull the handle counterclockwise to lock the gripping mechanism at the desired height. 1238521-2-C Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 6 of 6 Service Department at 1-888-4-KALLISTA (1-888-452-5547) or kallista.com.
