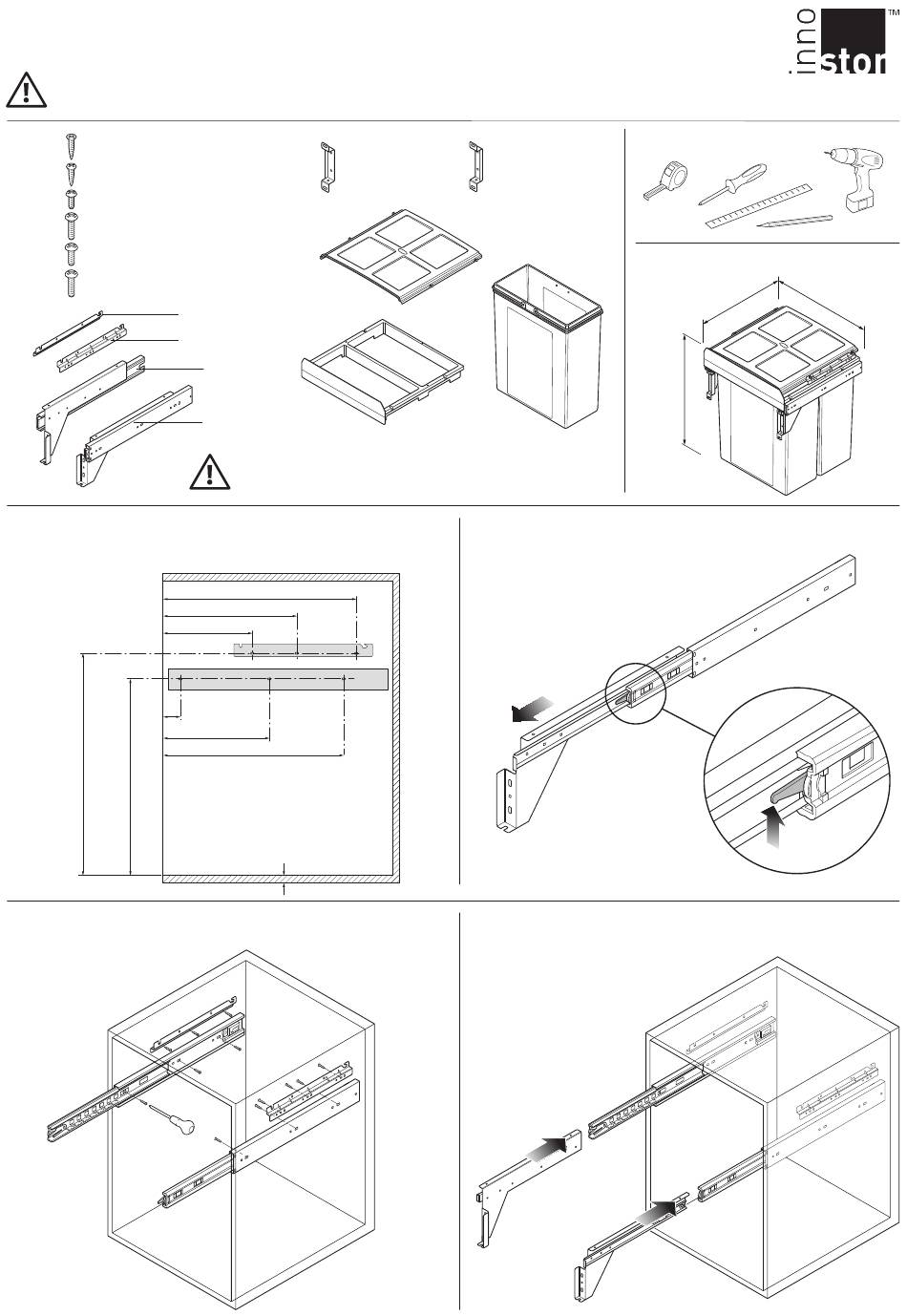

BIN 30
Fitting instructions
IMPORTANT - The unit has a maximum loading limit of 25kg including door.
Bin to suit 450mm wide cabinet using 18mm thick carcase material.
All fixings supplied must be used for installation.
Parts
A
x12 3.5 x 16mm screw
B
x4
3.5 x 14mm screw
C
x4
Screw (M4 x 8mm)
D
x2
Screw (M6 x 15mm)
E
x2
Screw (M5 x 8mm)
F
x4
Screw (M5 x16mm)
G
H
J
K
1
Mark screw positions for lid brackets and runners on
both cabinet sides.
478mm
422mm
3
Fit the lid brackets and runners to cabinet sides using
screws A.
Issue date: 23.08.12
L
Door bracket LH x1
N
Lid x1
Lid bracket LH x1
Lid bracket RH x1
P
Runner LH x1
Runner RH x1
Please ensure that all the above fittings are present before
installation begins.
418mm
290mm
194mm
37mm
229mm
389mm
Note: Dimensions are for
horizontal slotted holes.
18mm
G
J
H
K
M
Door bracket RH x1
Q
Frame x1
Container x2
2
Lift the locking levers and remove the front part of
each runner.
Ensure shoulder of bracket
faces outwards.
4
Assemble each runner until the locking levers are
securely attached.
Tools required
Dimensions
- maximum
484mm
492mm
J and K
J
K
414mm
