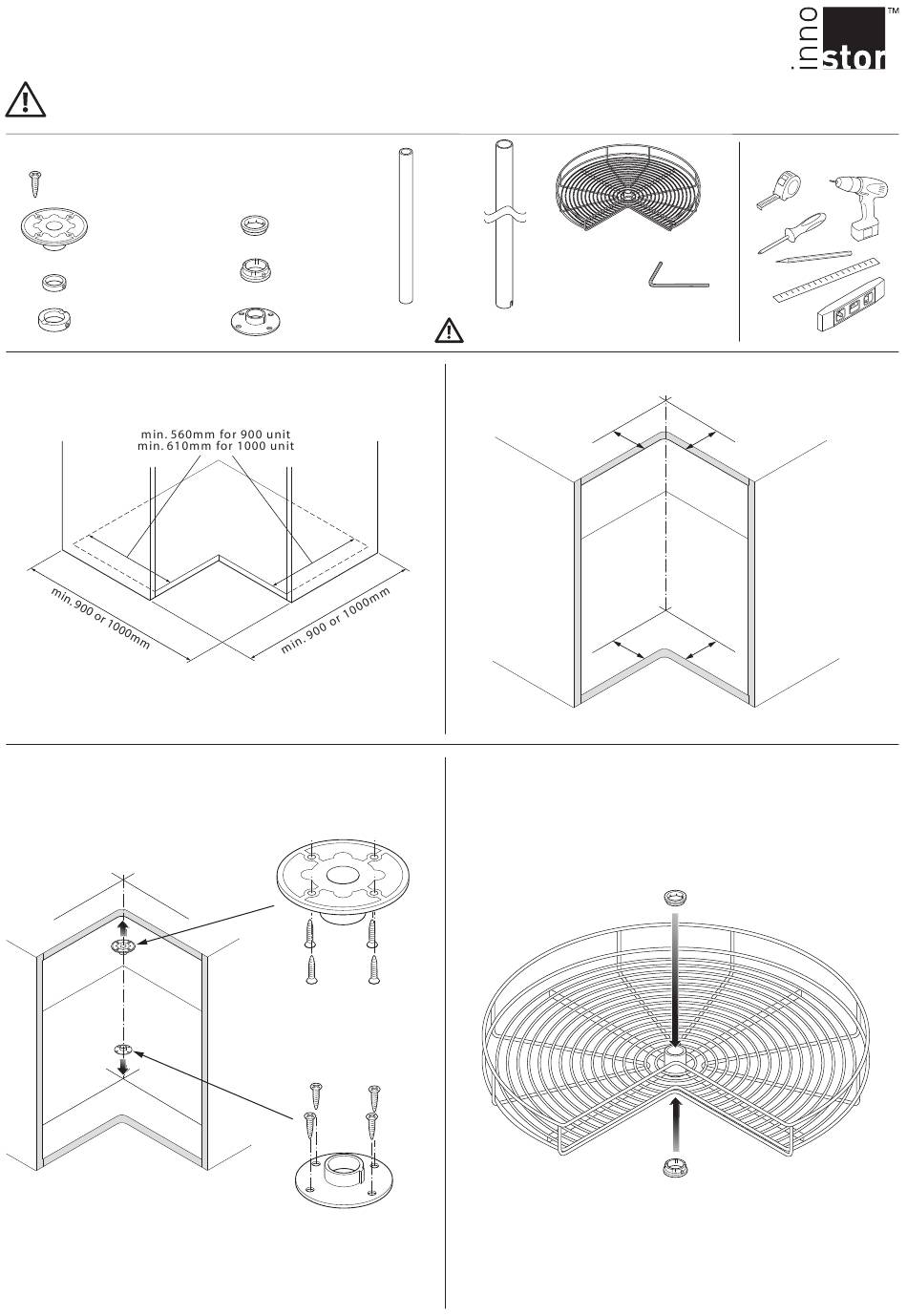

CAROUSEL SET - 900/1000mm LH/RH
Fitting instructions
IMPORTANT - Each basket has a maximum loading limit of 10-15 kg. The unit has a total loading limit of 20kg.
All fixings supplied must be used for installation.
Parts
A
x8 3.5 x 16mm screw
Top mounting
B
bracket x1
Top pole
C
locking ring x1
Basket
D
locking ring x2
1
Minimum cabinet dimensions
3
Fit the top and bottom mounting brackets to cabinet.
B
G
Issue date: 30.08.12
Basket top
E
nylon ring x2
Basket lower
F
nylon ring x2
Bottom
G
mounting bracket x1
A
A
A
A
A
A
A
A
H
J
Top pole x1
Bottom pole x1
Please ensure that all the above fittings are
present before installation begins.
2
Measure and mark centres for the top and bottom mounting
brackets.
4
Fit the top and bottom basket nylon rings to both baskets
B
K
G
K
Basket x2
L
Allen key x1
95mm
95mm
95mm
95mm
E
F
Tools required
