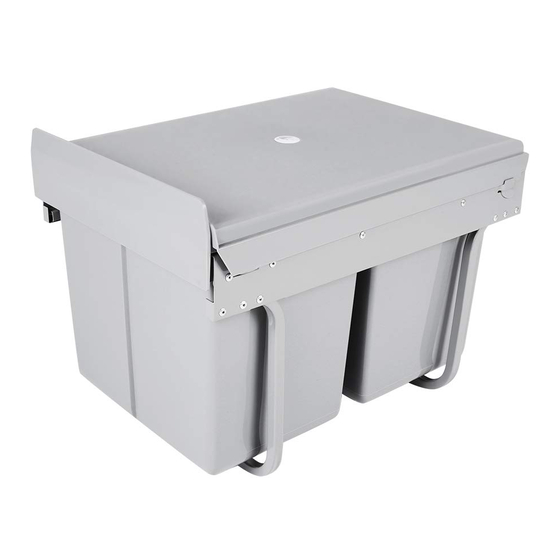

Innostor BIN 18 Assembly And Fitting Instructions

Table of Contents

Download this manual

IMPORTANT - The unit has a maximum loading limit of 30kg including door.

Parts

x16 M4 x 16mm screw

x2 Containers

Please ensure that all the above fittings are present before

installation begins.

If a door is NOT to be fitted to the bin, remove the

door fixing brackets by releasing the 6 attached

screws and nuts.

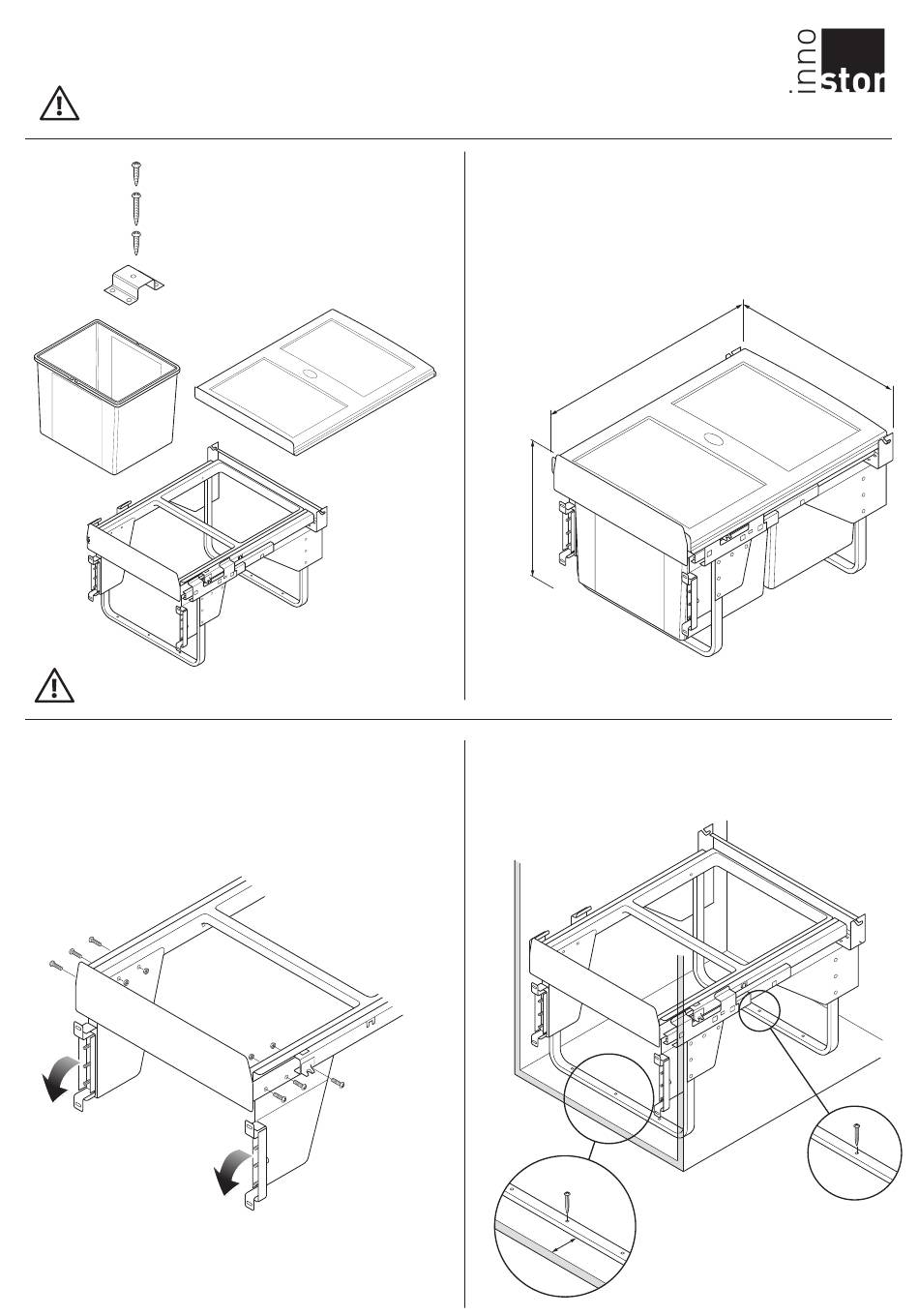

Assembly and fitting instructions

M4 x 25mm screw

M4 x 16mm screw (for attaching door)

Brackets

x1 Lid

x1 Frame

BIN 18

IMPORTANT:

This bin can be installed behind a standard hinged door

or with the door fitted to the bin.

Dimensions

313mm

Measure 56mm from the cabinet front face and

position the frame allowing for any obstruction from

above or the sides. Fit the two long screws through

the central holes

56mm

- maximum

490mm

393mm

Table of Contents

Do you have a question about the BIN 18 and is the answer not in the manual?

Page 1 BIN 18 Assembly and fitting instructions IMPORTANT - The unit has a maximum loading limit of 30kg including door. Parts x16 M4 x 16mm screw IMPORTANT: This bin can be installed behind a standard hinged door M4 x 25mm screw or with the door fitted to the bin.
Page 2 Before permanent attachment to the cabinet base, fit Attach the four brackets to the cabinet base using x4 containers and lid and test for ease of opening and bin short screws and x1 long screw to each bracket. removal. Ensure the unit is clear of door hinges and other obstructions during operation.
