Refrigerator Liner Parts - Whirlpool GC5NHAXVQ00 Parts Manual

Whirlpool refrigerator parts list
Hide thumbs

Advertisement

For Models: GC5NHAXVQ00, GC5NHAXVB00, GC5NHAXVS00, GC5NHAXVY00
W10202400

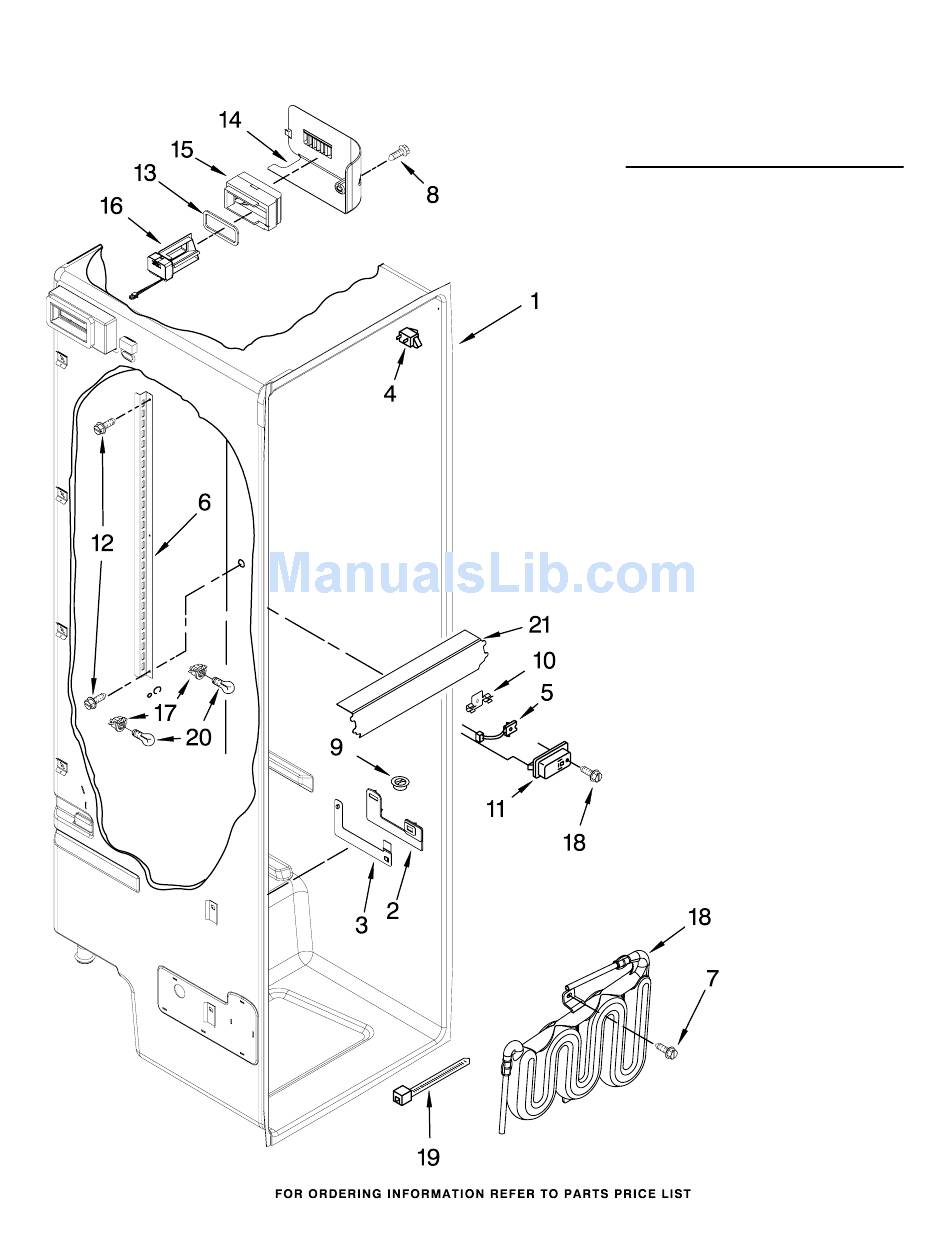

REFRIGERATOR LINER PARTS

(White)
(Black)
(Stainless) (Monochromatic Stainless)
3
Illus.
Part
No.
No.
DESCRIPTION
1
Liner (Not A
Serviceable Part)
2
2223524 Escutcheon, Meat
Pan Control
3
2223339 Slide Meat
Pan Control
4
1118894 Switch, Rocker
Arm
5
2188820 Thermistor
6
2223456 Ladder, Shelf (2)
7
488280 Screw
8
489084 Screw
9
2171846 Release Valve
10
2209204 Clip, Thermistor
11
1116793 Cover, Thermistor
12
489478 Screw
13
2304597 Gasket,
Air Baffle
14
2223403 Cover,
Air Baffle
15
2224076 Air Diffuser
Assembly
16
2220377 Air Baffle
17
2162085 Socket
18
2307107 Reservoir
19
2307062 Strap
20
2255743 Light Bulb
21
2223663 Light Lens
