For Models: GC5NHAXVQ00, GC5NHAXVB00, GC5NHAXVS00, GC5NHAXVY00
Illus.
Part
No.
No.
DESCRIPTION
1
2182120 Fan Scroll
2
2223733 Retainer,
Fan Motor
3
2223298 Air Scoop
4
2223303 Air Duct, Upper
5
2223297 Air Duct Freezer
6
2321799 Bi−Metal, Defrost
7
2259385 Fan Motor
8
2169142 Fan Blade
9
2304241 Gasket, Evaporator
Cover (2)
10
2223986 Fan Grommet (2)
11 W10129813 Harness, Fan
Evaporator
(Includes #6)
12
2155789 Gasket, Fan Scroll
13
2203876 Gasket
14
2223413 Cover, Evaporator
(Includes #9)
15
8281159 Screw
16
489478 Screw
17
2223395 Support, R.S
18
2203596 Support, L.S
W10202400

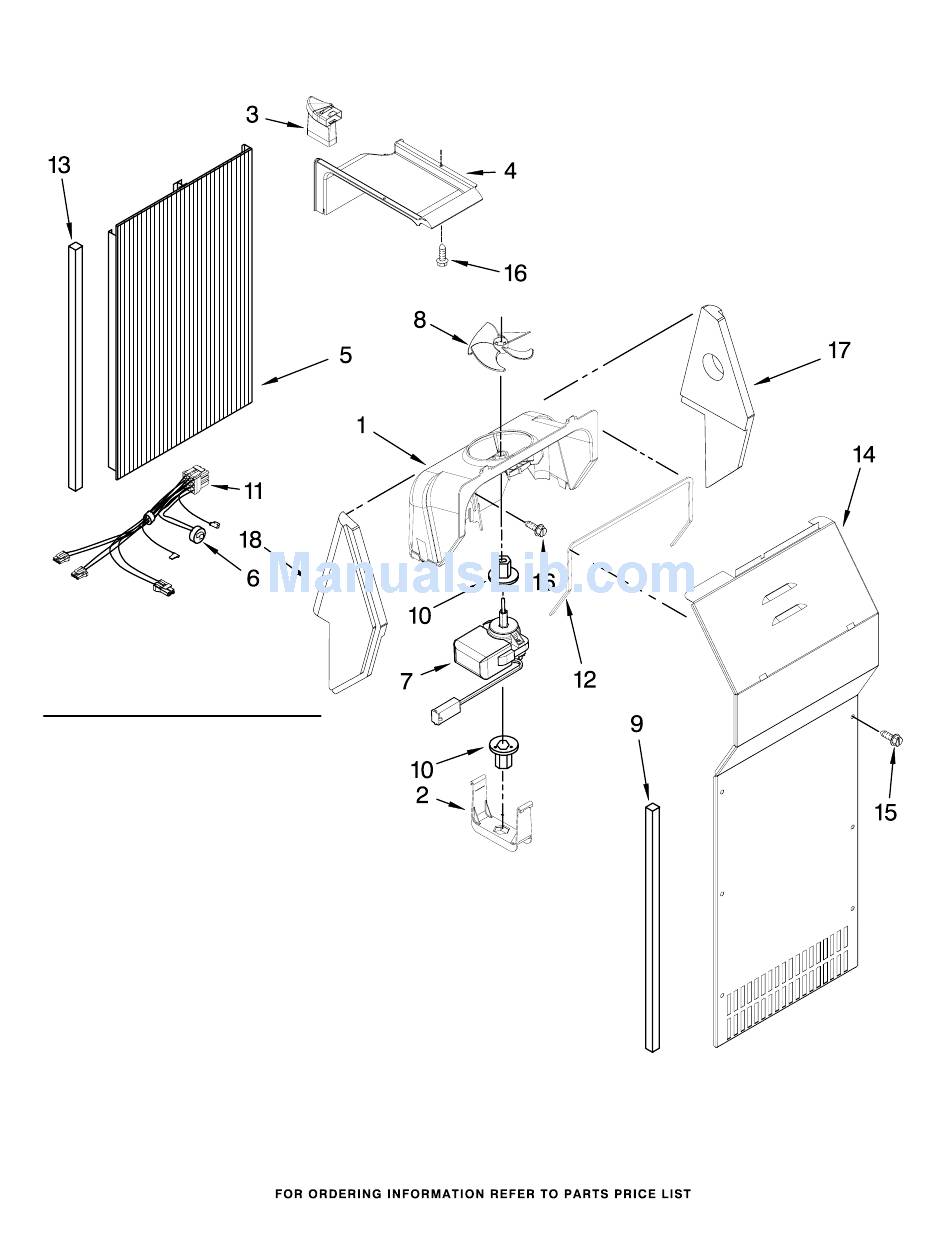

AIR FLOW PARTS
(White)
(Black)
15
(Stainless) (Monochromatic Stainless)
