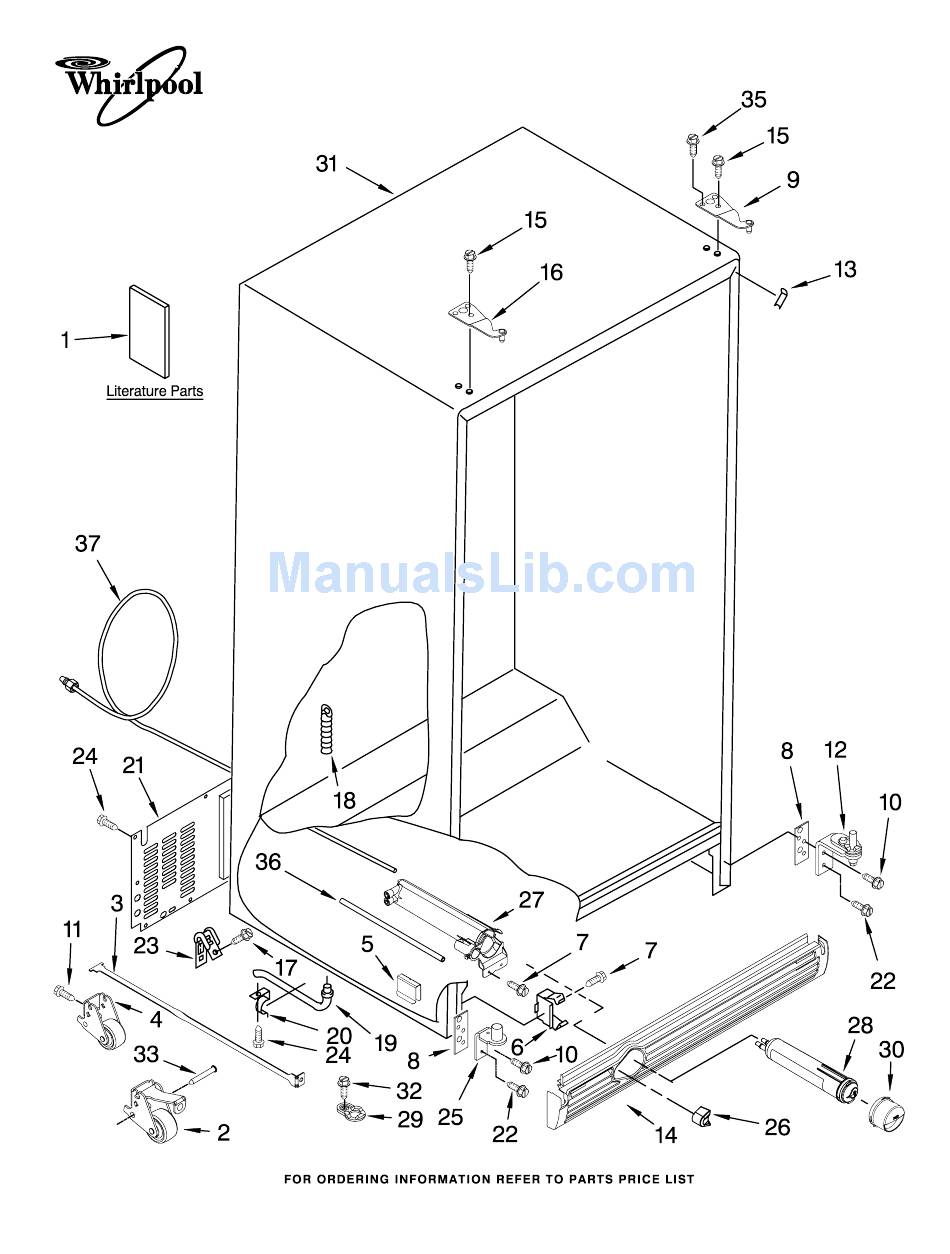

- Page 1 CABINET PARTS REFRIGERATOR For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 10−05 Printed In U.S.A. (kdr) Part No. 8199361 Rev. A...
- Page 2 For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION Literature Parts 2306981 Use & Care Guide 2223419 Service & Wiring Sheet 2223519 Energy Guide 628370 Modular Icemaker Service Sheet 2223996 Installation Instructions Front Roller Asm 2306950 Left Side 2306951 Right Side...
- Page 3 REFRIGERATOR LINER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 8199361 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223338 Escutcheon, Meat Pan Control 2223339 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2)
-
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part 2223288 Pan Assembly 2223309 Button, Humidity 2223308 Slide, Humidity 2223525 Cover, Meat Pan 2223261 Snack Pan 2223592 Cover, Crisper 2223591 Glass, Cover 2174478 Eyelet, Roller... - Page 5 FREEZER LINER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361...
- Page 6 For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223690 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2223782 Front, Basket Shelf Track 2223787 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) Illus. Part 2223317 Ice Bin 2255574 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361... - Page 10 REFRIGERATOR DOOR PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) Illus. Part 2223248W White 2223248T Biscuit 2223248B Black 2224115SB Stainless Steel 2203087K Trim, Shelf 2255421 Dairy Door 2255411 Clip, Mounting 2223326 Mist Beige 2223909 Black 2305993W White 2305993T Biscuit...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361... - Page 12 FREEZER DOOR PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) Illus. Part 2223424W White 2223424T Biscuit 2223424B Black 2224190SB Stainless Steel 2305993W White 2305993T Biscuit 2305993B Black 2255411 Clip, Mounting 489491 Screw 3400012 Screw 8533920 Screw 2171157K Shelf Bin...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361... - Page 14 DISPENSER FRONT PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White...
- Page 15 For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2188824 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2223986 Fan Grommet (2)
- Page 16 CONTROL PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) Illus. Part 2306990 Control Box 2223877 Latch 2306952 Trim, Control Box 2223512 Spring, Torsion 2223882 Heat Shield Asm 2307037 Control Board Asm 2223506 Light Lens, 2223857 Light Socket...
- Page 17 UNIT PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361...
- Page 18 For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION 777070 Screw 2225834 Fan, Blade 2223315 Condenser Assembly 8281197 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 2301979 Plate, Mounting 8281196 Screw 2215676 Cover, Terminal 2185788 Clamp, Cable...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) (Black) (Stainless Steel) 8199361... - Page 20 ICEMAKER PARTS For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 (White) (Biscuit) Illus. Part 489084 Screw 2256096 Fitting, Water 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater 628356 Cup, Water Fill...
- Page 21 For Models: GC5SHEXNQ02, GC5SHEXNT02, GC5SHEXNB02, GC5SHEXNS02 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz. Spray Can) 350930 Enamel, White (12 Oz. Spray Can) 350956 Enamel, Almond (12 Oz.
