Summary of Contents for Kogan KIDS RIDE-ON FIRE ENGINE

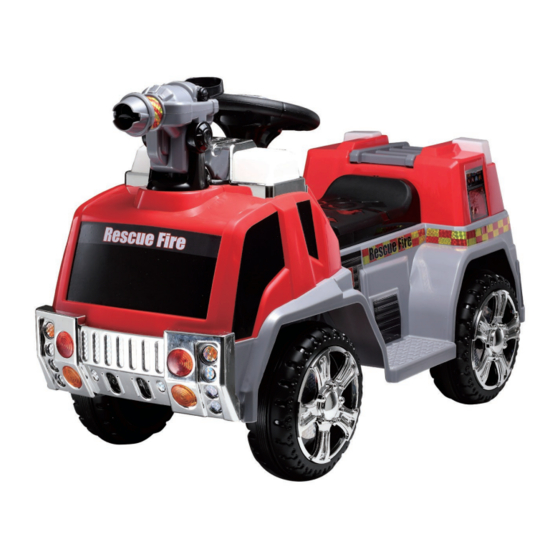

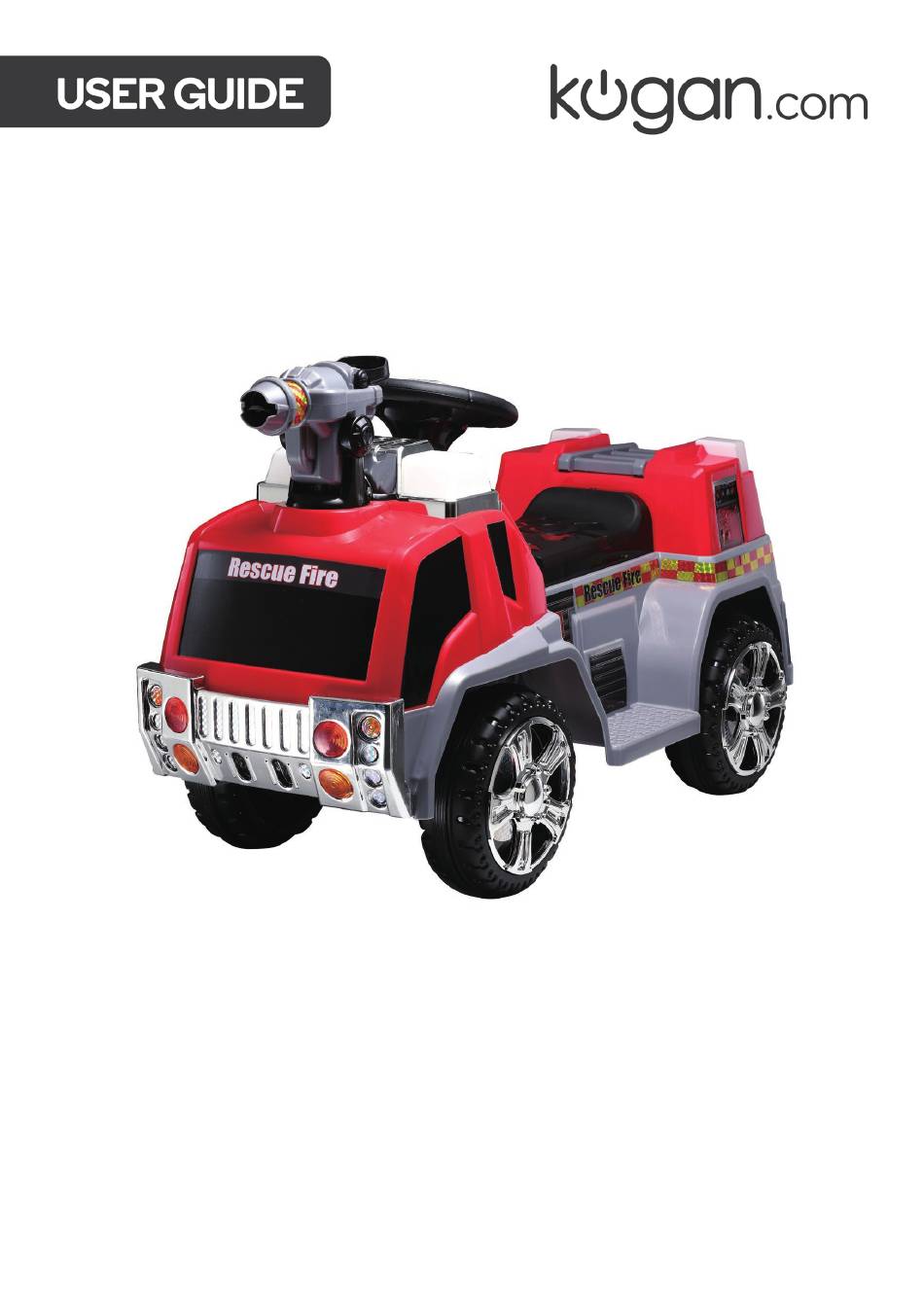

- Page 1 KIDS RIDE-ON FIRE ENGINE KARDONFRENA...
- Page 3 • Do not attempt to repair this product yourself. If the product or its power supply experiences any malfunction or damage, stop using it immediately and contact Kogan.com to arrange a repair. Caution for Safety • The product must be assembled by adults. Before use, check whether the adult assembles correctly according to the instructions.
- Page 4 • Use only the supplied compatible battery and charger and charge at a stable voltage to ensure safety when charging and extend battery life. • Spare parts should only be replaced by an adult. The battery is very heavy and any contact with liquid must be avoided, especially if there is any leakage.
- Page 5 OVERVIEW Exploded Diagram...
- Page 6 Body x1 ① Wheel x3 ② Driving wheel x1 ③ Round of shares x1 ④ Steering wheel x1 4x45 Machine screws x1 ⑤ 4MM nut x1 10mm spacer x7 ⑥ 8 MM NUT x4 ⑦ Motor x1 ⑧ Bubble gun x1 ⑨...
- Page 7 ASSEMBLY Assembly Chart Attach the Bubble bottle to the Bubble Gun...
- Page 8 Attention: Before assembling the steering wheel, connect the parts on the steering wheel with the matching parts on the car body. When assembling the bubble gun, connect the plug on the bubble gun to the body and align the card buckle on the bubble gun with the card slot on the body. Then rotate clockwise to attach the bubble gun to the body.
- Page 9 OPERATION Charging Connect the charger from the vehicle’s charging port to a stable AC power point. Note: • Charging should only be performed by adults. • Charge for 8-12 hours before first use. • Do not charge the battery for over 15 hours. •...
- Page 10 Product Functions Step on the pedal switch to engage the vehicle. Press the forward/backward switch to move the vehicle front and back. Use the power switch for to turn the car on or off. See other functions as labelled below: Bubble Gun Switch Power Forward Backward...
- Page 11 CLEANING & CARE • Use a soft, dry cloth to wipe the exterior of the product. Do not wash the product with water or allow it to be exposed to rain. Do not use abrasive cleaners as they may lead to corrosion or damage the electrical systems. •...
- Page 12 TROUBLESHOOTING Vehicle does not move • Ensure forward and back switch is not in neutral (middle) position • Ensure the power’s positive and negative cord is connected firmly • Check for the fuse for damage • Ensure the product is disconnected from the charger •...
- Page 13 IN THE BOX Driving Wheel*1 Wheel*3 Body*1 Round of shares*4 Steering wheel*1 4*45 Machine screw*1 10mm spacer*7 4MM nut*1 8MM nut*4 Bubble gun*1 Motor*1 Bubble Bottle*1 Charger*1...
- Page 14 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
