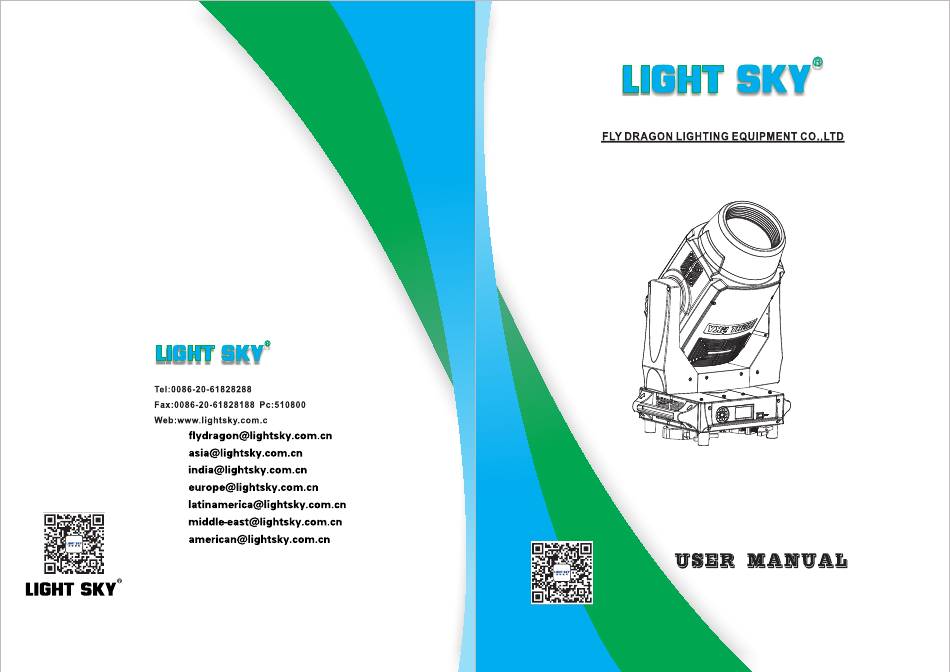

- Page 1 E-mail: AURORA Add:No.51 Yunfeng Rd,Xinhua Industrial Zone,Xinhua Street, Huadu District,Guangzhou,China. Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information.......................2 2. Technical information....................4 Attachment and body size..................7 4. Installation and connecting..................8 5. Control panel......................11 6. Menu setting.......................12 7. Channel function......................17 8. Circuit connecting diagram..................25 9. Cleaning and maintenances..................26 10.Troubeshooting......................26 11.Duty exonerative and copyright protection............28 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
SAFETY INFORMATION ■This lighting fixture is for professional use only - it is not for household use. ■ Installtion Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 ■ Temperature of the external surface The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is 100℃. ■ Maintenance Before starting any maintenance work or cleaning the projector, cut off power from the mains supply. After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
-
Page 5: Technical Information
TECHNICAL INFORMATION IP set Power supplies available ● ● -A C100~240V~ 50/60Hz - Automatic chang battery,IP could be set without Power ● electricity. 620W PF0.988 Software upgrade ● Lamp ● - Insert USB upgrade software. - Brand：OSRAM S IRIUS HRI 471W SN ：... - Page 6 Movable pattern White location （Effect disk） Rotating gobo wheel White Color wheel Static gobo wheel CMY color mixing system...
- Page 7 distance, spot diameter and illumination diagram（Beam model） Lux（fc） 21°Lux(照度) 3552(330.1) 930(86.4) 228(21.2) 170（15.8） 120(11.2) 95(8.8) 61(5.7) 408(37.9) 2°Lux(照度) 422000(39219) 105600(9814) 45600(4238) 25200(2342) 15840(1472) 11760(1093) 9000(836.4) 6880(639.4) 2° 21° Distance(m) 2° Diameter(m) 0.62 0.92 1.26 1.91 2.18 2.45 21° Diameter(m) 3.46 6.95 10.42 13.75...
-
Page 8: Attachment And Body Size
Four prism14° Magnetic column Straight line six prism Eight prism22° Eight prism12° Prism wheel 1 Prism wheel 2 ATTACHMENT AND BODY SIZE power cord... -
Page 9: Installation And Connecting
INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 10 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The stage lighting power supply can not be more than 2pcs pre line ● connection to the eiectricty mains must be carried out by a qualified electrical ●...
- Page 11 DMX512 in signal end DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected all the projectors are together The projector dn’t touch each other or plinth).
-
Page 12: Control Panel
CONTROL PANEL D is p la y US B ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ●... -
Page 13: Menu Setting
Main Ⅰ menu Ⅱ menu Ⅲ menu menu Address → Address :001-512 Power: :****(h) Totel Time → Lamp ON: :****(h) Total :****(h) Lamp hours → Lamp open :****(h) PVG_TEM :000.0 Temperature → Board :000.0 RDM UID → Undistributed MOTOR UID →... - Page 14 Main Ⅰ menu Ⅱ menu Ⅲ menu menu 13.Effect of rotation *** 14.Fixed pattern disc *** 15.Rotating pattern plate *** 16.Pattern rotation DMX live → 17. Prism1 18.Prism1 rotating 19.Prism2 20.Prism2 rotating 21.Prism macros 22.Prism macro rotation *** 23.Frost 24.Zoom 25.zoom tuning 26.Focus 27.Focus fine...
- Page 15 Main Ⅰ menu Ⅱ menu Ⅲ menu menu → English Language → Chinese Open Back Light → Auto close(15s) Persona l Display → Normal Reversal → Rota.180 Backlight blink → Return(ESC) Return(ESC) 1.Pan 2.Pan Fine 3.Tilt 4.Tilt Fine 5.P/T 6.Function of the channel *** 7.Cyan *** 8.Magenta *** 9.Yellow ***...
- Page 16 Main Ⅰ menu Ⅱ menu Ⅲ menu menu 27.Focus fine 28.Focus 2 29.Automatic focus 30.Shutter 31.Dimmer 32. dimmer fine 33.Uniformity Return(ESC) The machine system reset is reset Pan/Tilt reset Gobo reset Colour reset Reset → Dimmer reset Zoom reset Effect reset Return(ESC) Test P/T →...
- Page 17 Main Ⅰ menu Ⅱ menu Ⅲ menu menu Cyan 000-255 Magenta 000-255 Yellow 000-255 Return(ESC) Defualt Power up time Time clean Lights on time Factory Service → → Developer Firmware update Return(ESC) Standard mode Fan mode altitudes 3000-4000M altitudes 4000-5500M return (ESC) Lamp...
-
Page 18: Channel Function
CHANNEL FUNCTION(V1.0) Percentage Function Channel 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 Tilt 0-255 0-100 Tilt fine speed , Pan/Tilt Pan/Tilt time Standard mode (0=default) Max. Speed Mode 2-255 Speed from max. to min. Power/Special functions Reserved (0=default) Reserved 10-14 15-19 Reserved... - Page 19 Percentage Function Channel 160 - 169 Gobo wheels reset 170 - 179 Dimmer/Shutter reset 180 - 189 Zoom/focus/frost/prism wheels reset 190 - 199 Effect wheel reset 200 - 209 Total reset 210 - 229 Reserved 230 - 239 Lamp Off 240 - 244 Reserved 245 - 249...
- Page 20 Percentage Function Channel 158 -161 Pink 162 -166 Yellow 167 -171 Magenta 172 -176 Cyan 177 -180 CTO 3200K CTO 2 181 -185 CTO 2700K CTO 1 186 -189 Dark blue 190 - 215 Forwards rainbow effect from fast to slow 216 - 217 No rotation 218 - 243...
- Page 21 Percentage Function Channel 76 -81 Gobo 9 82 -87 Gobo 10 Shaking gobos from slow to fast 88 -95 Beam reducer 1 96 -103 Beam reducer 2 reducer 104 -111 Beam reducer 3 112 -119 Beam reducer 4 120 -127 Gobo 1 128 -135 Gobo 2...
- Page 22 Percentage Function Channel 197 -208 Gobo 8 209 -220 Gobo 9 221 -249 Open/hole 250 -255 Auto random gobo selection from fastto slow Rot. gobo indexing and rotation 0 - 127 Gobo indexing 128 - 187 Forwards gobo rotation from fastto slow 188 -195 No rotation 196 - 255...
- Page 23 Percentage Function Channel 129 -255 Backwards prism rotation from slow to fast Pattern sellection Open position/hole(0=default) Index - set indexing on channel 2 2 Prism macro Index 1 4-14 15-25 Prism macro Index 2 26-36 Prism macro Index 3 37-47 Prism macro Index 4 48-58 Prism macro Index 5...
- Page 24 Percentage Function Channel 64 -73 Pulse opening from fastto slow 74 -83 Ramping from fastto slow 84 -86 Open Medium Frost Max. time of Medium frost movement 0 -->100% (100% -->0) is10 sec. 87 -136 Medium Frostfrom 0% to100% 137 -139 100% Medium Frost 140 -149 Pulse closing from slow to fast...
- Page 25 Percentage Function Channel Shutter/ strobe 0 - 31 Shutter closed 32 - 63 Shutter open (32=default) 64 - 95 Strobe -effect from slow to fast 96 - 127 Shutteropen 128 - 143 Opening pulse in sequences from slow to fast 144 - 159 Closing pulse in sequences from fast to slow 160 - 191...
-
Page 26: Circuit Connecting Diagram
CIRCUIT CONNECTING DIAGRAM 100V~240V- 50/60Hz Electronic ballast Lamp 28V IN 28V OUT P-7QD P-ZJ P-6QD P-8QD... -
Page 27: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. - Page 28 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
-
Page 29: Duty Exonerative And Copyright Protection
DUTY EXONERATIVE AND COPYRIGHT PROTECTION ◇The lamp belongs to consumption products that is not guarantee to keep it in good repair. ◇Any products broken that didn't according to the instruction is not guarantee to keep it in good repair. ◇The commentary for all the instruction belongs to the supplier in final. ◇No authorize can't copy.
