In the event of a fire activation occurring the panel's audible buzzer will commence

piping. The FIRE lamp will illuminate constantly and the ZONE location lamp will

illuminate.

The panel will also display the location details on the LCD display as follows:-

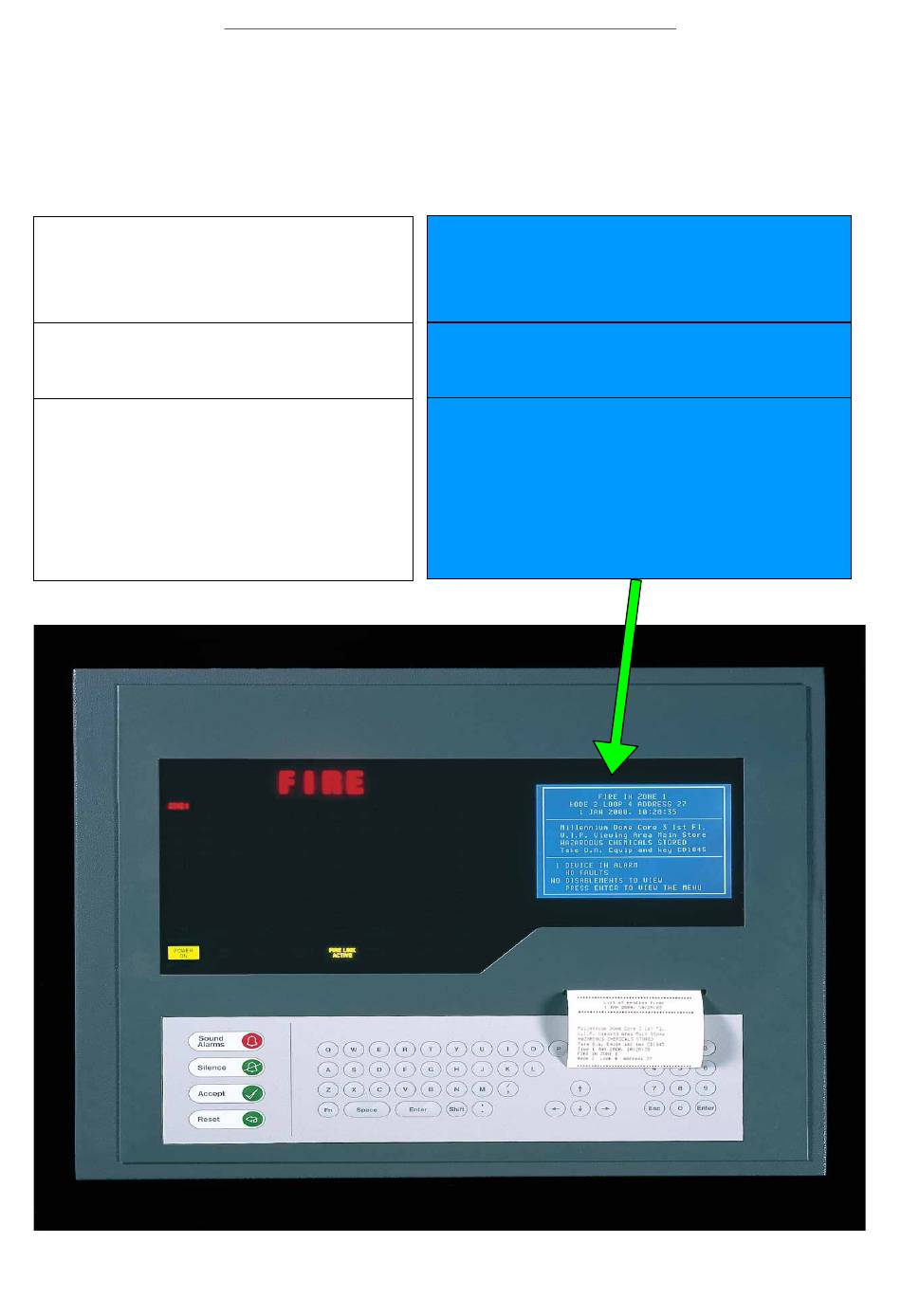

Comparing the zone number displayed on the

panel to the building zone plan will assist you

in identifying the location of the room/area in

detection to investigate

This part of the panel display is telling you that

a detector has activated in circulation area of

the building A.0.100 in zone 10

This part of the panel display is telling you that

only 1 device is in alarm

There are no faults

No parts of the alarm system are disabled

Pressing the enter button on the control panel

will allow you to view further information should

there be moor than I device in alarm

PROTEC 6400 FIRE ALARM PANEL

FIRE IN ZONE 10

SCHOFIELD LOOP 1

29 JULY 2008

DETECTOR, CIRC A.0.100

ZONE 10

DEVICE IN ALARM

NO FAULTS

NO DISABLEMENTS TO VIEW

PRESS ENTER TO VIEW THE MENU

OP – HT

12: 20:15

Table of Contents

Need help?

Do you have a question about the 6400 and is the answer not in the manual?

Page 1 PROTEC 6400 FIRE ALARM PANEL In the event of a fire activation occurring the panel’s audible buzzer will commence piping. The FIRE lamp will illuminate constantly and the ZONE location lamp will illuminate. The panel will also display the location details on the LCD display as follows:-...
Page 2 SILENCING FIRE EVENTS After establishing the cause of the fire event confirming a false alarm Using your panel key open the front cover to expose the function buttons Press the ‘SILENCE’ key. This will cause the ‘ALARMS SILENCED’ lamp to illuminate and the alarms to silence.
Page 3 RESETTING FIRE EVENTS AFTER SILENCING THE ALARMS Press the ‘RESET’ button. Any fire indications will be extinguished. Note The fire condition will re-start if an automatic detector or manual call point remain active.
Page 4 DEVICES LED LIGHT CONFIRMING THAT THEY HAVE BEEN ACTIVATED SMOKE / HEAT SENSOR If the Red LED (Light) is illuminated constantly on the smoke/heat sensor, it means that this device has activated. Manual Call Point (MCP) If the Red LED (Light) is illuminated on the manual call point, the glass is most likely to have been broken.
