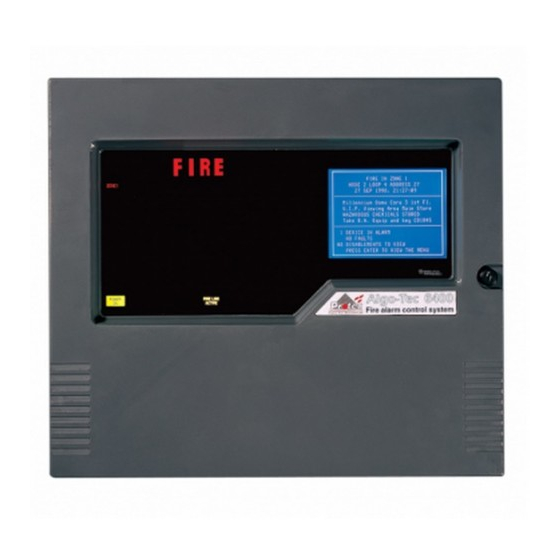

Protec Algo-Tec 6400 Installation Manual

Protec Algo-Tec 6400 Installation Manual

Interactive digital addressable fire control system
Hide thumbs Also See for Algo-Tec 6400:

Advertisement

Algo-Tec™ 6400
INTERACTIVE DIGITAL
ADDRESSABLE FIRE CONTROL
SYSTEM
INSTALLATION MANUAL
www.acornfiresecurity.com
(1-4 LOOPS)
www.acornfiresecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Algo-Tec 6400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Protec Algo-Tec 6400

  • Page 1 www.acornfiresecurity.com Algo-Tec™ 6400 INTERACTIVE DIGITAL ADDRESSABLE FIRE CONTROL SYSTEM (1-4 LOOPS) INSTALLATION MANUAL www.acornfiresecurity.com...
  • Page 2 This manual covers 4400, 5400 and 6400 fire alarm systems. The differences are described in the appropriate sections. This manual also covers General Alarm and Cell Call systems. 6400 Installation Manual - Issue 4 Rev 5 Page 2 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 3: Table Of Contents

    7.1 CONTROL EQUIPMENT ............................26 7.2 FIELD EQUIPMENT ............................. 26 7.3 ALARM CIRCUITS ............................... 26 7.4 FIRE STATION OUTPUT............................26 7.5 FAULT OUTPUT ..............................26 6400 Installation Manual - Issue 4 Rev 5 Page 3 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 4 6400 INSTALLATION MANUAL 6400 Installation Manual - Issue 4 Rev 5 Page 4 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 5: 6400 Network Overview

    An RS232 opto-isolation unit = Liquid crystal display repeater. is fitted to provide isolation = Power supply unit. between the 6400 panel and other equipment. 6400 Installation Manual - Issue 4 Rev 5 Page 5 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 6: Rs485 Network

    Each DCN node has all of the mandatory manual controls and indicators required by En54-2 2.2 ‘6000 SERIES’ LOOP Each 6400/LPN has the capability to communicate with Protec ‘6000 series’ loops. Each addressable loop device has a unique Serial Number. The 6400 panel communicates with each device by this Serial Number, and the device replies with an analogue value.
  • Page 7: 6000 Series' Double Addressing

    6000/HEAT, 6000/ION, 6000/OPT, 6000/OPHT, 6000/COHEAT, 6000/OPHTCO 2.3 ‘5000 SERIES’ LOOP Each 5400/LPN has the capability to communicate with Protec ‘5000 series’ loops. Each addressable loop device must have a unique address. The address is assigned using the eight way dil switch on the device.
  • Page 8: Delays To Outputs

    50 devices in total can be connected on a loop due to the larger current drawn by these devices. Contact Protec Fire Detection if it is intended to mix cell call with another discipline eg fire or pegging on the same LPN.
  • Page 9: Power Supply Cabling

    Note that earlier 6400 systems used a charger inhibit signal ‘CI’ from the panel to the charger. The latest 8A 6400 charger does not require this signal. 6400 Installation Manual - Issue 4 Rev 5 Page 9 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 10: Serial Communications Cabling (Rs485)

    PAIR. THE SCREENS MUST BE EARTHED AND CONTINUOUS OVER THE CABLE RUN. THE EARTH CONTINUITY MUST BE MAINTAINED AT ALL LOOP DEVICES. 6400 Installation Manual - Issue 4 Rev 5 Page 10 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 11: Guide To Loop Cable Conductor Sizes (Mm2)

    Load Alarm (mA) Loop Length (metres) 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 Total Loop Load Alarm (mA) 6400 Installation Manual - Issue 4 Rev 5 Page 11 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 12: Alarm Cabling

    I/O Interface Units A 6400/Network/LCD requires an external +24V power supply that is usually provided by a fourth RS485 core, refer to PID 153. 6400 Installation Manual - Issue 4 Rev 5 Page 12 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 13: Panel Current

    Interface Units (refer to note 2 of table 3). The alarm loop current figures may differ from the figures quoted in other Protec literature. The figures here assume a limit on the number of devices lighting their fire led so this reduced led current is averaged across all the loop devices.
  • Page 14 OUTPUT BOARD - 6000/MICCO CLEAN CONTACT OUTPUT BOARD 6000/CCO MONITORED INPUT BOARD 0.65 6000/MIP MONITORED INPUT WITH CLEAN CONTACT OUTPUT - 6000/MIPCCO 6400 Installation Manual - Issue 4 Rev 5 Page 14 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 15 LED Beacon 6000Plus Heat Detector with Talking Sounder 17.53 and LED Beacon 6000Plus Talking SSR 6000Plus Talking SSR with LED Beacon 0.45 14.42 6400 Installation Manual - Issue 4 Rev 5 Page 15 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 16 6000/CPRO LOCAL CONTROL MODULE 0.7 + detectors + EOL 67mA Figure assumes a supply fault, buzzer on and both LCD backlights on 6400 Installation Manual - Issue 4 Rev 5 Page 16 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 17: Current Details

    The peak values occur when the beacon is at its ‘on’ stage during flashing. There are variants of this product depending upon the monitoring requirements. 6400 Installation Manual - Issue 4 Rev 5 Page 17 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 18 6000/FIU BOXED ISOLATOR UNIT 0.12 0.12 6000/IU DUAL ISOLATOR BASE 0.12 0.12 6000/DIB STANDARD BASE 6000/BASE RELAY BASE 0.05 6000/RBNC or 6000/RBNO 6400 Installation Manual - Issue 4 Rev 5 Page 18 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 19: 6400 / 8A Charger

    Do not connect any other wiring to the charger. 7) Re-fitting the Door Re-fit the inner door (re-fit is reversal of 3) ENSURE THAT ALL EARTHING POINTS ARE RE-CONNECTED. 6400 Installation Manual - Issue 4 Rev 5 Page 19 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 20: 6400 Panel (Dcn/2Lpn Or Dcn/4Lpn)

    9) Re-fitting the Plastic Door Re-fit the outer plastic door by offering the door up to the hinges and inserting the two hinge pins. 6400 Installation Manual - Issue 4 Rev 5 Page 20 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 21: 6400 Lpn Panel

    ARE RE-CONNECTED. Do not connect any other wiring to the panel. 7) Re-fitting the Door Re-fit the inner door (re-fit is reversal of 3). ENSURE THAT ALL EARTHING POINTS ARE RE-CONNECTED. 6400 Installation Manual - Issue 4 Rev 5 Page 21 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 22: 6400 Dcn Panel

    9) Re-fitting the Plastic Door Re-fit the outer plastic door by offering the door up to the hinges and inserting the two hinge pins. 6400 Installation Manual - Issue 4 Rev 5 Page 22 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 23: 6400 Rdn Panel

    9) Re-fitting the Plastic Door Re-fit the outer plastic door by offering the door up to the hinges and inserting the two hinge pins. 6400 Installation Manual - Issue 4 Rev 5 Page 23 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 24: 6400 Network Lcd

    All metal termination boxes and detector bases should be securely fastened to the mounting surface and earth bonded. FIELD EQUIPMENT MUST NOT BE CONNECTED AT THIS STAGE. 6400 Installation Manual - Issue 4 Rev 5 Page 24 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 25 Great care must be taken during insulation tests to discharge the cables, since charged cable may damage the control equipment upon connection. 6400 Installation Manual - Issue 4 Rev 5 Page 25 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 26: Control Equipment

    The 6400/8A charger has volt free fault contacts intended for a general purpose fault signal but to maintain EN54-4 compliance these terminals must not be used. 6400 Installation Manual - Issue 4 Rev 5 Page 26 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 27: Www.acornfiresecurity.com

    Note: The Fire Alarm Commissioning Application form must be completed and returned 14 days before a commissioning engineer can attend. 6400 Installation Manual - Issue 4 Rev 5 Page 27 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 28 Maximum of 2 per 6400 system (Only available on a DCN) Appendix A details optional functions of En54-2 that are available on a 6400 system. 6400 Installation Manual - Issue 4 Rev 5 Page 28 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 29 Test Condition Outputs : Fire alarm devices Fire alarm routing equipment Automatic fire protection equipment Fault warning routing equipment Standardized I/O interface 6400 Installation Manual - Issue 4 Rev 5 Page 29 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 30 0.2mA 28mA NOTE:- When using Zone Interfaces the current per detector must be added to the current requirement of the Interface Units. 6400 Installation Manual - Issue 4 Rev 5 Page 30 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 31 Output Unit 0.72mA 3.3mA Input / Output Unit 1.2mA 4.5mA NOTE:- Only addresses 1 to 126 are valid on ‘4000’ series loop devices. 6400 Installation Manual - Issue 4 Rev 5 Page 31 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 32 6400 INSTALLATION MANUAL 6400 Installation Manual - Issue 4 Rev 5 Page 32 of 33 Copyright Protec Fire Detection plc www.acornfiresecurity.com...
  • Page 33 6400 INSTALLATION MANUAL CE Marking Information 0832 Protec Fire Detection plc, Nelson, Lancs 0832 – CPD – 1434 (6400/DCN) 0832 – CPD – 1435 (6400/2LPN) 0832 – CPD – 1436 (6400/4LPN) 0832 – CPD – 1437 (6400/DCN/2LPN) 0832 – CPD – 1438 (6400/DCN/4LPN)
