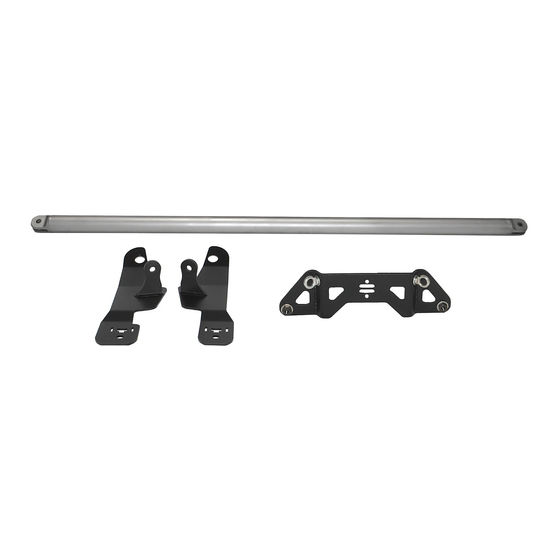

Part # 41583000 - 1997-2004 C5 Corvette Harness Bar
1997-2004 C5 Corvette Harness Bar
Installation Instructions
Table of contents
Page 2......... Included components and Hardware List
Page 8......... Template
SOME INTERIOR PANELS WILL NEED TO BE MODIFIED TO INSTALL THIS HARNESS BAR.
Installation
Instructions
Recommended Tools
www.ridetech.com
812-482-2932
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ridetech 41583000
Summary of Contents for Ridetech 41583000
- Page 1 Installation Instructions Part # 41583000 - 1997-2004 C5 Corvette Harness Bar Recommended Tools 1997-2004 C5 Corvette Harness Bar Installation Instructions Table of contents Page 2..Included components and Hardware List Page 3..Getting Started Page 4..Bracket Installation Page 5..Panel Modifi cation Page 6..
- Page 2 Harness Bar to Bracket 49990009 1/2”-20 Locking Flange Nut Harness Bar to Bracket 99433006 7/16” MIL Spec Washer Eye Bolt to Bracket 99432002 7/16”-20 Nylok Nut Eye Bolt to Bracket 99503001 1/2” SAE Flatwasher Lap Belt Bracket Nut www.ridetech.com 812-482-2932...
- Page 3 Kick Panel and both B-Pillar Panels. These panels are all held in by clips that are reusable. Refer to the Fac- tory Service Manual for Removal & Install Procedure. DO NOT DISCARD ANY HARDWARE OR PARTS. A second Lap Belt Bracket can be purchased for the Passenger Side from your Ridetech Dealer or Ridetech, The Kit number is 41583002.
- Page 4 Bolt and SNUG the Shoulder Belt Bolt, it will CLAMP need to be removed and reinstalled later. 5. The Hole for the OEM Shoulder Harness Bolt will need to be enlarged to 1”. This can be done with a Uni-Bit or using a Die Grinder. www.ridetech.com 812-482-2932 812-482-2932...
- Page 5 Panel, aligning it with the Bottom Edge and against the Inside Front Edge of the Panel. Mark the Hole in the Template on the Panel. This Marked Hole will get Cut Out. Take your time and make a clean Cut. www.ridetech.com BOTTOM EDGE 812-482-2932 812-482-2932...
- Page 6 Align the Harness Bar Mounting Holes with the Tab Holes. Apply Anti-Sieze to the 1/2”- 20 x 1 1/2” Bolts[9] and insert them into the holes. Next, install the 1/2”-20 Flange Nuts[10] on the Bolts and Torque them to 75 ftlbs. www.ridetech.com 812-482-2932 812-482-2932...
- Page 7 Hex up. The Shank side of the Nut will Thread onto the Studs with the Shank going through the Bracket and Spacer. Tighten Both Nuts. If you purchased a 2nd Bracket for the Passenger side, install in now following FRONT Steps 12-14. www.ridetech.com 812-482-2932 812-482-2932...
- Page 8 2” 1” 0”...
