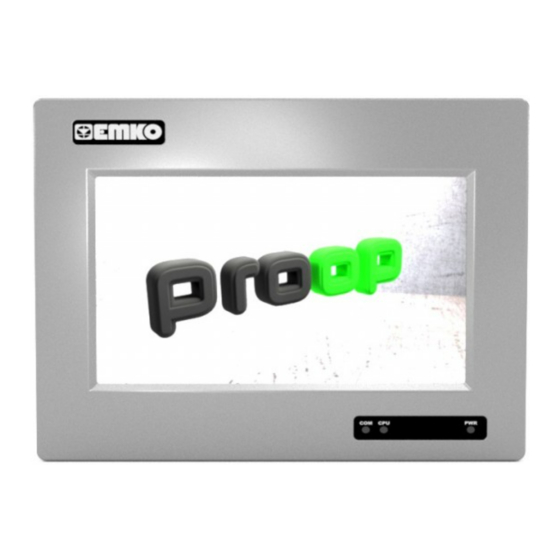

- Page 1 PROOP Quick Start Guide...
-
Page 2: General Features
Preface PROOP, is designed to provide interaction between the user and the automation systems based on industrial PLC systems. This document will be helpful the user to install and connect PROOP. Before begin the installation of this product, please read the instruction manual. •... - Page 3 PROOP 10’’ SERIES Models PROOP-10L PROOP-10L.E PROOP-10C PROOP-10C.E PROOP-10P Display Type 10” wide TFT Display Colors 16M colors Resolution 1024 x 600 LCD Backlight LED Backlight Touch Method Resistive Analog Luminance(cd/m Backlight life(hours) min. 50000 hours at 25°C ARM Cortex-A9, 800Mhz Flash Memory 4 GB 512 MB DDR3 SDRAM...
- Page 4 Dimensions PROOP 7’’ Series PROOP 10’’ Series Quick Start Manual EN PROOP 03 V03 05/18...
-
Page 5: Panel Mounting
Panel Mounting 1- Before mounting the device in your panel, make sure that the cutout is of the right size. 2- Check front panel gasket position. 3- Insert the device through the cut out. 4- Insert the mounting clamps to the holes of device 5- Screw up the fixing screws until the unit completely immobile within the panel. -
Page 6: Installation
Installation Before beginning installation of this product, please read the instruction manual and warnings below carefully. A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product. - Page 7 PROOP Builder Program Setup Please, follow the steps on the below for installation the PROOP Builder Software Program. Step 1: It is strongly recommended that before proceeding, you ensure that no other Windows programs are running. Step 2: Run the setup.exe included in the installation package. Step 3: Continue the installation by following the dialog boxes on the screen and choose where to install.
- Page 8 Pin Connections Supply (For PROOP 7 and 10) COM4 (For PROOP 7 and 10) Terminal Terminal 2- Rx 3- Tx 5- GND 7- RTS 8- CTS COM1 (For PROOP 7) COM2 - COM3 (For PROOP 7) Terminal Terminal COM1 - COM2 (For PROOP 10) COM3 (For PROOP 10) Terminal Terminal...
- Page 9 Analog/Digital Inputs (For PROOP 10) Terminal Açıklama Bağlantı Şeması Analog Input 2 Analog Input 1 Digital Inputs NPN / PNP Selection of Digital Inputs Analog/Digital Outputs (For PROOP 10) Terminal Açıklama Bağlantı Şeması Analog Output Supply + Analog Output Supply - Analog Outputs Dijital Output Supply -...
-
Page 10: Warranty
Do not clean the case with hydrocarbon based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Other Informations Manufacturer Information: Emko Elektronik Sanayi ve Ticaret A.Ş. Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:616369 BURSA Phone : (224) 261 1900 Fax : (224) 261 1912 Repair and maintenance service information: Emko Elektronik Sanayi ve Ticaret A.Ş.
