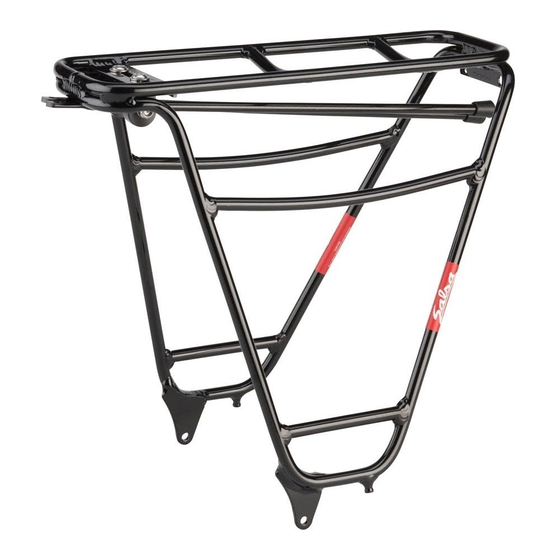

SALSA Alternator Low Deck 135 Instructions

At Salsa, we believe that a sense of adventure makes life better.
The bicycle can be so much more than just a bike; it's a path
to new places, new people, and amazing experiences.
Thank you for your purchase. We hope it makes a good riding
experience even better!
Salsa. Adventure by bike.
®
WARNING: CYCLING CAN BE DANGEROUS. BICYCLE
PRODUCTS SHOULD BE INSTALLED AND SERVICED BY
A PROFESSIONAL MECHANIC. NEVER MODIFY YOUR BICYCLE
OR ACCESSORIES. READ AND FOLLOW ALL PRODUCT
INSTRUCTIONS AND WARNINGS INCLUDING INFORMATION
ON THE MANUFACTURER'S WEBSITE. INSPECT YOUR BICYCLE
BEFORE EVERY RIDE. ALWAYS WEAR A HELMET.
WARNING: The Alternator Rear Rack is designed and intended
for use as a rear rack only. DO NOT USE AS A FRONT RACK.

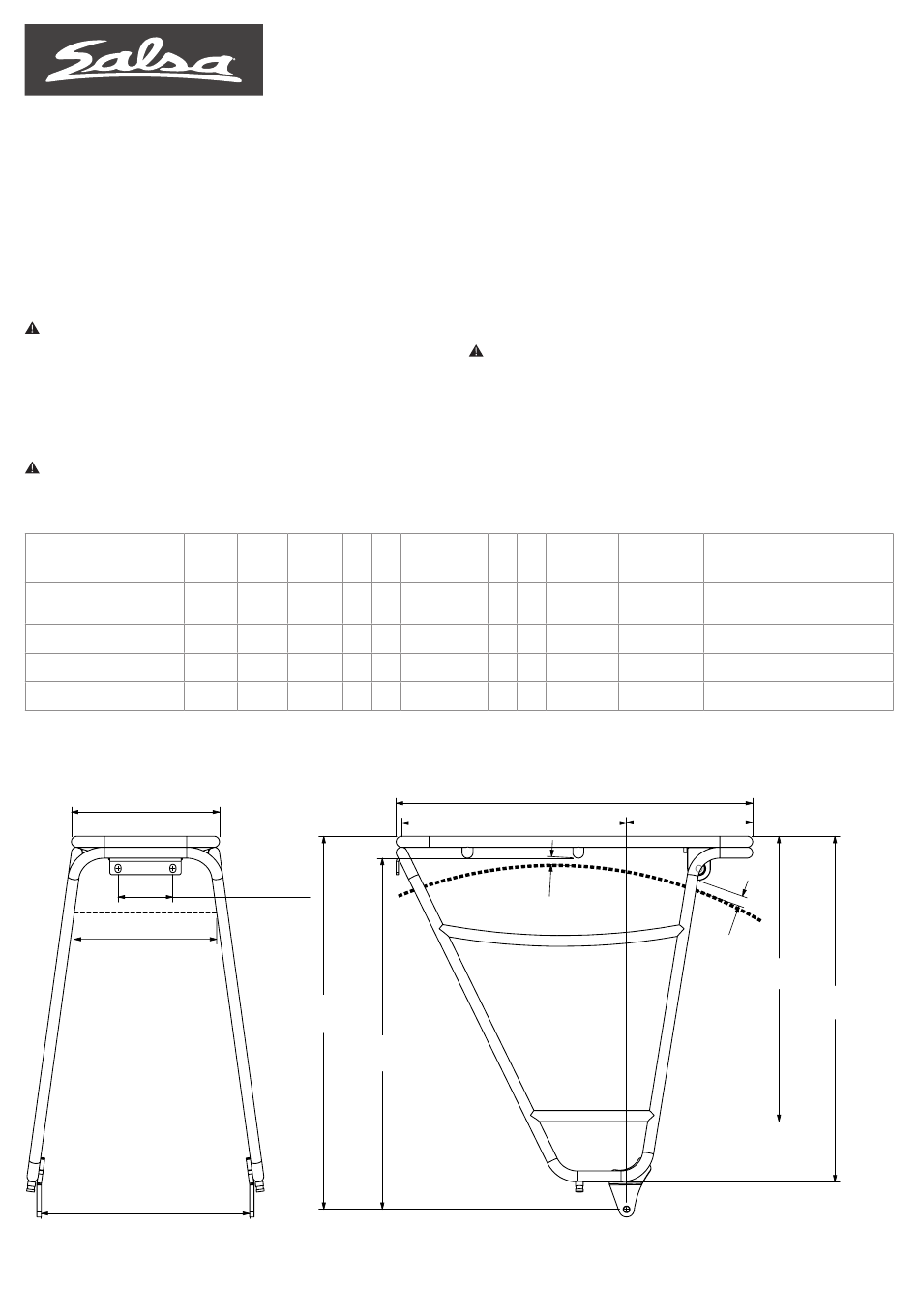

RACK MODEL HEIGHT
Alternator Low Deck 135/148 325
Alternator Plus 135/148 340
Alternator 170/177 340
Alternator 190/197 340
All measurements in mm unless noted.
Note A: Proper installation requires at least 6 mm of clearance to be maintained between any rotating wheel component and all portions of the rack.
Note B: Mount width "A" may be adjusted up to 10 mm in either direction to fit frame. if required adjustment is more than 10, select next size rack.
W
(DECK WIDTH)
B
(CLEARANCE WIDTH)
A±10
(MOUNT WIDTH)
SEE NOTE B
24855 7/17 | 85-000256_INST_C
ALTERNATOR REAR RACK INSTRUCTIONS
WIDTH LENGTH L1 L2
110 340 135 210 190 100 305 260 300 27 kg (60 lb)
135 325 115 210 190 135 320 260 315 27 kg (60 lb)
135 325 115 210 230 140 320 260 315 27 kg (60 lb)
135 325 115 210 250 146 320 260 315 27 kg (60 lb)
50
(DIN-STANDARD
LIGHT MOUNT)
H
(HEIGHT)
C
(CLEARANCE HEIGHT)
For additional product and safety information go to salsacycles.com/safety
Compatibility & Intended Use
The Salsa Alternator Rack is designed specifically for mounting
to Salsa frames equipped with Alternator and Alternator 2.0
dropouts. Alternator Racks are available in the four versions
shown below.
Check to make sure the rack version you are attempting to install
is the correct match for the frame and maximum tire fitment.
WARNING: Alternator racks are designed specifically to be
mounted only to frames equipped with Alternator dropouts.
DO NOT USE WITH OTHER BIKES. Mounting to other frames may
result in an over-expansion or over-compression of the rack
lowers to fit the width of the frame, which may compromise the
structural integrity of the rack, or possible contact between the
rack and the wheel/tire due to variations in the rack-mounting
boss locations. All versions of the Alternator rack have a load
capacity of 27 kg (59.4 lb). Do not exceed this load limit.
LOAD
A B C C E CAPACITY
L
(LENGTH)
L2
SEE NOTE A
FITS FRAMES
WITH REAR
SPACING FITS FRAMES WITH MAX TIRE SIZE
29 x 2.1" (700 x 51 mm) w/o fender
135–148 O.L.D.
29 x 1.65" (700 x 42 mm) w/ fender
135–148 O.L.D. 29 x 3.0" / 27.5 x 3.25"
170–177 O.L.D. 29 x 3.0" / 27.5 x 3.25" / 26 x 4.3"
190–197 O.L.D. 29 x 3.0" / 27.5 x 3.25" / 26 x 4.8"
L1
SEE NOTE A
D
(HOOK SPACING #1)
(HOOK SPACING #2)
E
1
