SALSA TIMBERJACK Manual

RETAILER: This framesheet MUST BE provided to the end user.
At Salsa, we believe that a sense of adventure makes life better.
The bicycle can be so much more than just a bike; it's a path
to new places, new people, and amazing experiences.
Thank you for your purchase. We hope it makes a good riding
experience even better!
Salsa. Adventure by bike .
®

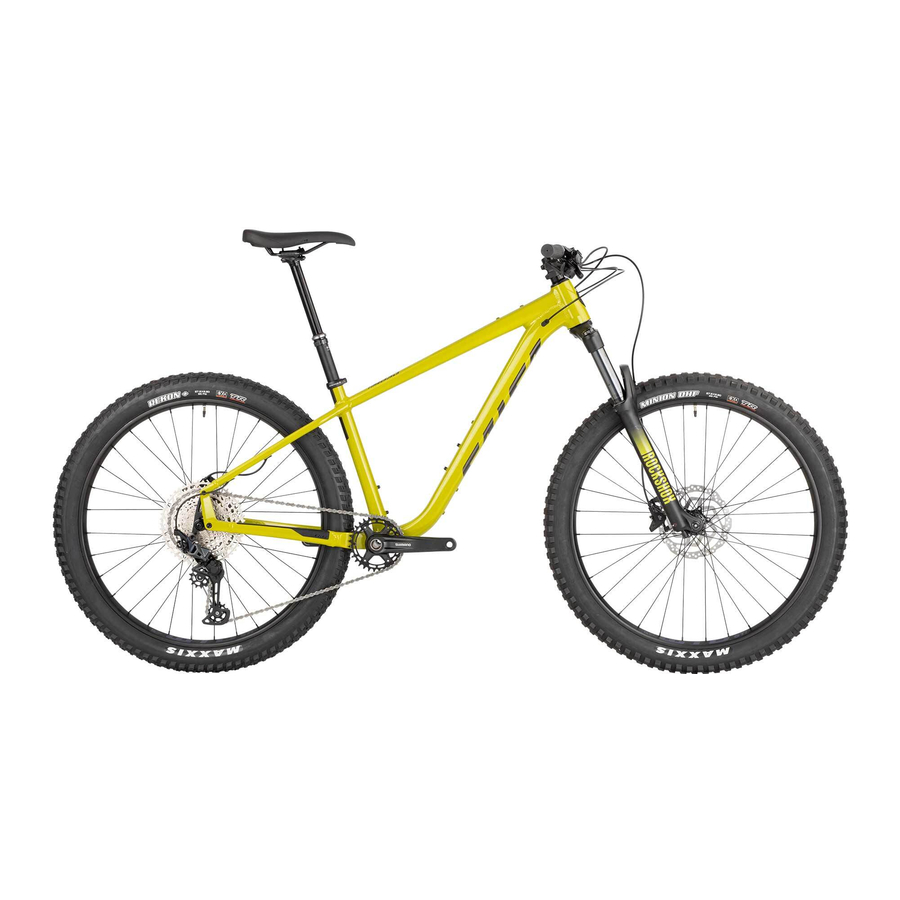

Thank you for purchasing a Salsa Timberjack! We want to give
you important information about your bike...
WARNING: Cycling can be dangerous. Bicycle products
should be installed and serviced by a professional mechanic.
Never modify your bicycle or accessories. Read and follow all
product instructions and warnings including information on the
manufacturer's website. Inspect your bicycle before every ride.
Always wear a helmet.
Intended Use: Condition 3
CONDITION DESCRIPTION
This is a set of conditions for the operation
of a bicycle on a regular paved surface
where the tires are intended to maintain
ground contact.
This is a set of conditions for the operation
of a bicycle that includes Condition 1 as well
as unpaved and gravel roads and trails with
moderate grades. In this set of conditions,
contact with irregular terrain and loss of tire
contact with the ground may occur. Drops are
intended to be limited to 15cm (6") or less.
This is a set of conditions for operation
of a bicycle that includes Condition 1 and
Condition 2 as well as rough trails, rough
unpaved roads, and rough terrain and
unimproved trails that require technical
skills. Jumps and drops are intended to
be less than 61cm (24").
This is a set of conditions for operation of a
bicycle that includes Conditions 1, 2, and 3,
or downhill grades on rough trails at speeds
less than 40km/h (25 mph), or both. Jumps
are intended to be less than 122cm (48").
This is a set of conditions for operation of
a bicycle that includes Conditions 1, 2, 3,
and 4; extreme jumping; or downhill grades
on rough trails at speeds in excess of 40km/h
(25 mph); or a combination thereof.
302951 6/19 | 85-000563_D
SALSA MODEL
Timberjack
For additional product and safety information go to salsacycles.com/safety
TIMBERJACK FRAMESHEET
Frame Compatibility
Tire Size Range for
622/700c/29" Wheels*
Tire Size Range for
584/650b/27.5" Wheels*
Tire Size Range for 559/26"
Wheels*
Maximum Wheel/Tire
Diameter**
Minimum Wheel/Tire
Diameter***
Suspension Fork Length
(Travel)
Rigid Fork Length
Fork Offset
Headset-Upper
Headset-Lower
Seatpost
Seat Collar
Dropper Compatible (Routing)
Front Derailleur Mount
Bottom Bracket
Crankset (Max Ring)
Rear Brake (Rotor)
Rear Spacing
Rear Axle Size
Derailleur Hanger
Rack Mounts
Fender Mounts
56–66mm (2.2–2.6")*
66–76mm (2.6–3.0")*
Not Compatible
780mm (30.7")
717mm (28.2")
511–541mm (100–130mm)
483–502mm
45–51mm
ZS44
Aluminum: ZS56, Ti: EC44
Aluminum: 30.9mm, Ti: 31.6mm
35mm
Yes
Aluminum: N/A
Ti: 148mm rear spaced: high direct
mount (29mm offset) Problem Solvers
Bracket (FS1328)
142mm rear spaced: high direct mount
(26.5mm offset) via 34.9mm clamp
Problem Solvers Bracket (FS1323)
73mm BSA, threaded
Aluminum: 1x crankset: 32t max Boost,
30t max non-Boost
Ti: 1x crankset: 32t max Boost or 30t
max non-Boost, 2x crankset: 36/24t max
51mm I.S., (160–180mm)
148mm, 142/135mm capable with
Alternator Reduction Plates (FS2360)
148mm rear spaced: 12 x 180L,
TP = 1.75, TL = 20
142mm rear spaced: 12 x 174L,
TP = 1.75, TL = 20
135mm rear spaced: quick-release
QR = FS1312; TA = FS1374;
SS = FS1318; SSTA = FS1375;
L Rohloff = FS1371
Yes, via Salsa Alternator Rack (RK8051)
& Salsa 35.0mm Rack-Lock Seat Collar
(ST8092)
No
