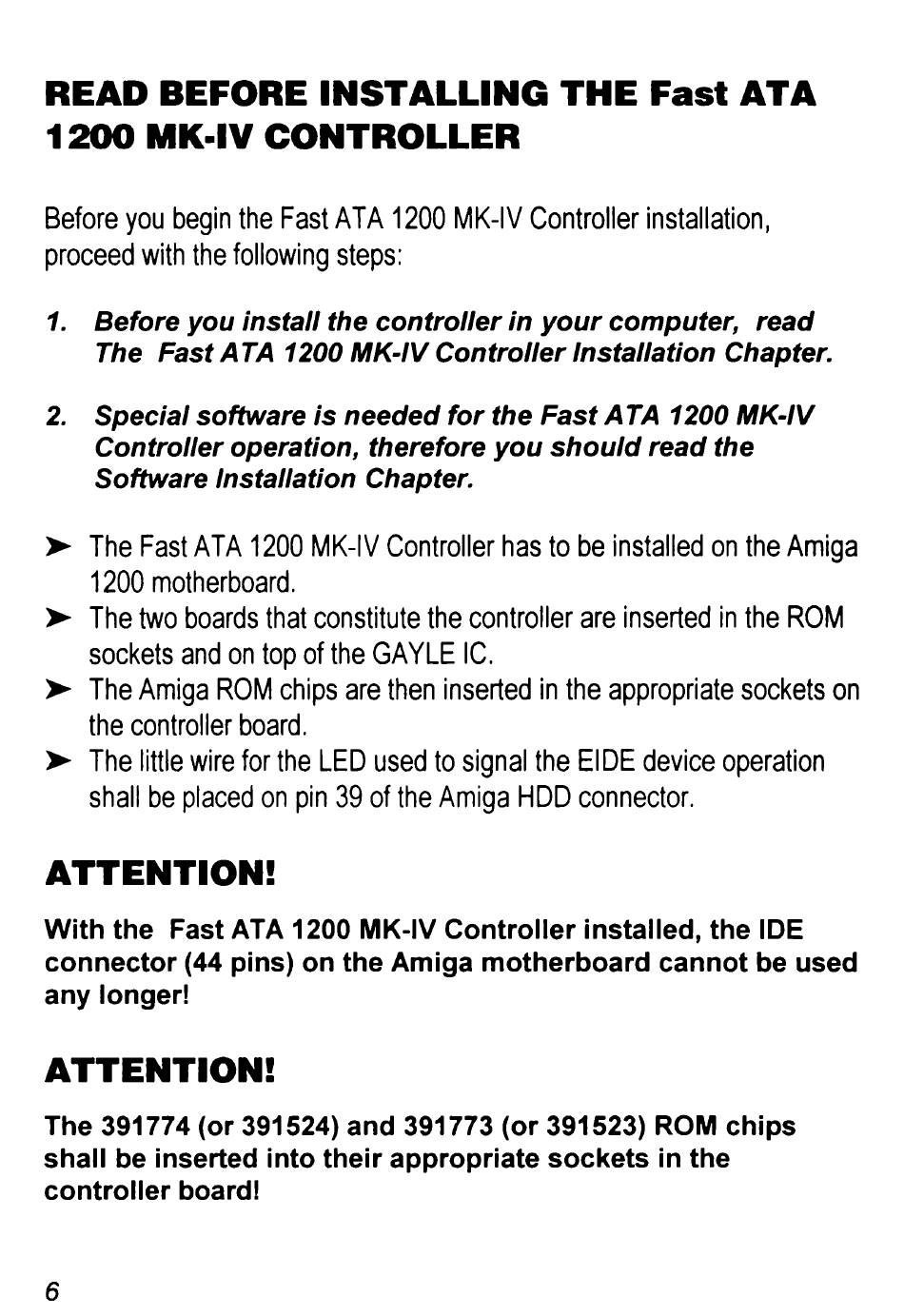

READ BEFORE INSTALLING THE Fast ATA
1200 MK-IV CONTROLLER
Before you begin the Fast ATA 1200 MK-IV Controller installation,
proceed with the following steps:
1. Before you install the controller In your computer, read
The Fast ATA 1200 MK-IV Controller Installation Chapter.
2. Special software is needed for the Fast ATA 1200 MK-IV
Controller operation, therefore you should read the
Software Installation Chapter.
>
The Fast ATA 1200 MK-IV Controller has to be installed on the Amiga
1200 motherboard.
>
The two boards that constitute the controller are inserted in the ROM
sockets and on top of the GAYLE IC.
>
The Amiga ROM chips are then inserted in the appropriate sockets on
the controller board.
>
The little wire for the LED used to signal the EIDE device operation
shall be placed on pin 39 of the Amiga HDD connector.
ATTENTION!
With the Fast ATA 1200 MK-IV Controller installed, the IDE
connector (44 pins) on the Amiga motherboard cannot be used
any longer!
ATTENTION!
The 391774 (or 391524) and 391773 (or 391523) ROM chips
shall be inserted into their appropriate sockets in the
controller board!
