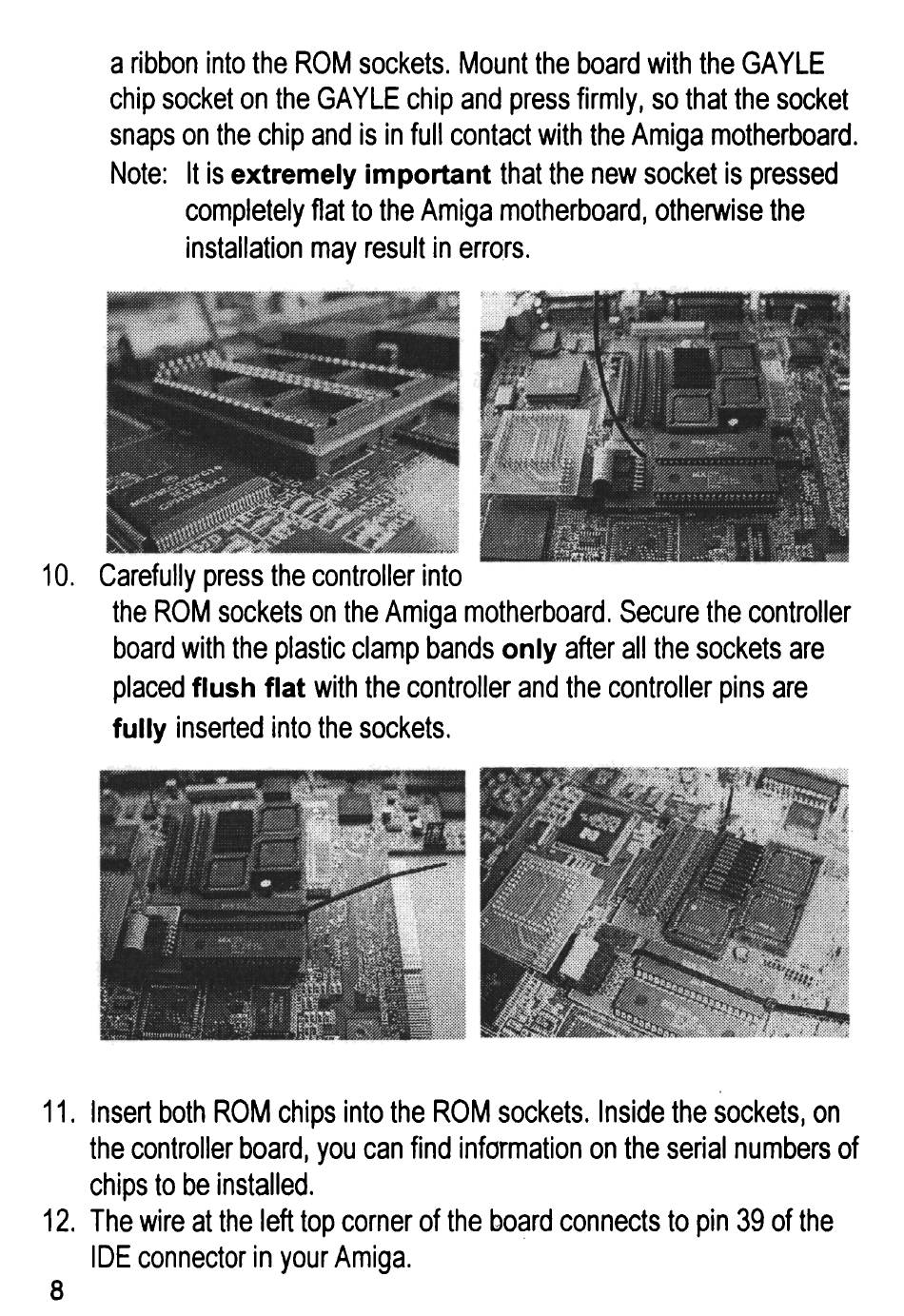

ELBOX Fast ATA 1200 MK-IV User Manual page 10

a ribbon into the ROM sockets. Mount the board with the GAYLE
chip socket on the GAYLE chip and press firmly, so that the socket
snaps on the chip and is in full contact with the Amiga motherboard.
Note: It is
extremely important
that the new socket is pressed
completely flat to the Amiga motherboard, otherwise the
installation may result in errors.
11. Insert both ROM chips into the ROM sockets. Inside the sockets, on
the controller board, you can find information on the serial numbers of
chips to be installed.
12. The wire at the left top corner of the board connects to pin 39 of the
IDE connector in your Amiga.
10
.
Carefully press the controller into
the ROM sockets on the Amiga motherboard. Secure the controller
board with the plastic clamp bands
only
after all the sockets are
placed
flush flat
with the controller and the controller pins are
fully
inserted into the sockets.
