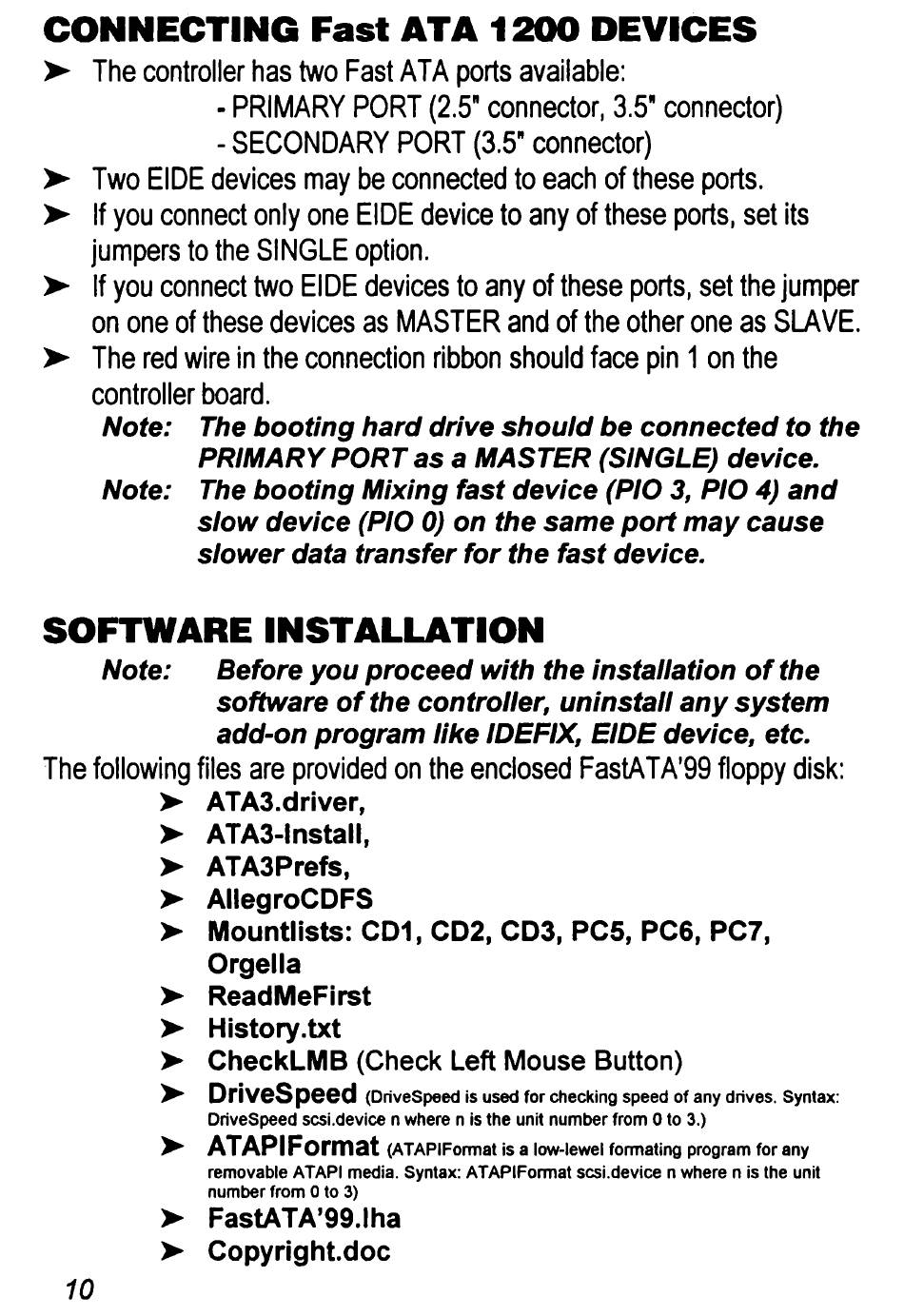

CONNECTING Fast ATA 1200 DEVICES
>■
The controller has two Fast ATA ports available:
- PRIMARY PORT (2.5" connector, 3.5" connector)
- SECONDARY PORT (3.5" connector)
>
Two EIDE devices may be connected to each of these ports.
>
If you connect only one EIDE device to any of these ports, set its
jumpers to the SINGLE option.
>
If you connect two EIDE devices to any of these ports, set the jumper
on one of these devices as MASTER and of the other one as SLAVE.
>
The red wire in the connection ribbon should face pin 1 on the
controller board.
Note: The booting hard drive should be connected to the
PRIMARY PORT as a MASTER (SINGLE) device.
Note: The booting Mixing fast device (PIO 3, PIO 4) and
slow device (PIO 0) on the same port may cause
slower data transfer for the fast device.
SOFTWARE INSTALLATION
Note: Before you proceed with the installation of the
software of the controller
,
uninstall any system
add-on program like IDEFIX, EIDE device
,
etc.
The following files are provided on the enclosed FastATA'99 floppy disk:
>
ATA3.driver,
>
ATA3-lnstall,
>
ATA3Prefs,
>
AllegroCDFS
>
Mountlists: CD1, CD2, CD3, PC5, PC6, PC7,
Orgella
>
ReadMeFirst
>
History.txt
> ► CheckLMB (Check Left Mouse Button)
>
Drives peed
(DriveSpeed is used for checking speed of any drives. Syntax:
DriveSpeed scsi.device n where n is the unit number from 0 to 3.)
>
ATAPIFormat
(ATAPIFormat is a low-lewel formating program for any
removable ATAPI media. Syntax: ATAPIFormat scsi.device n where n is the unit
number from 0 to 3)
>
FastATA'99.lha
>
Copyright.doc
10
