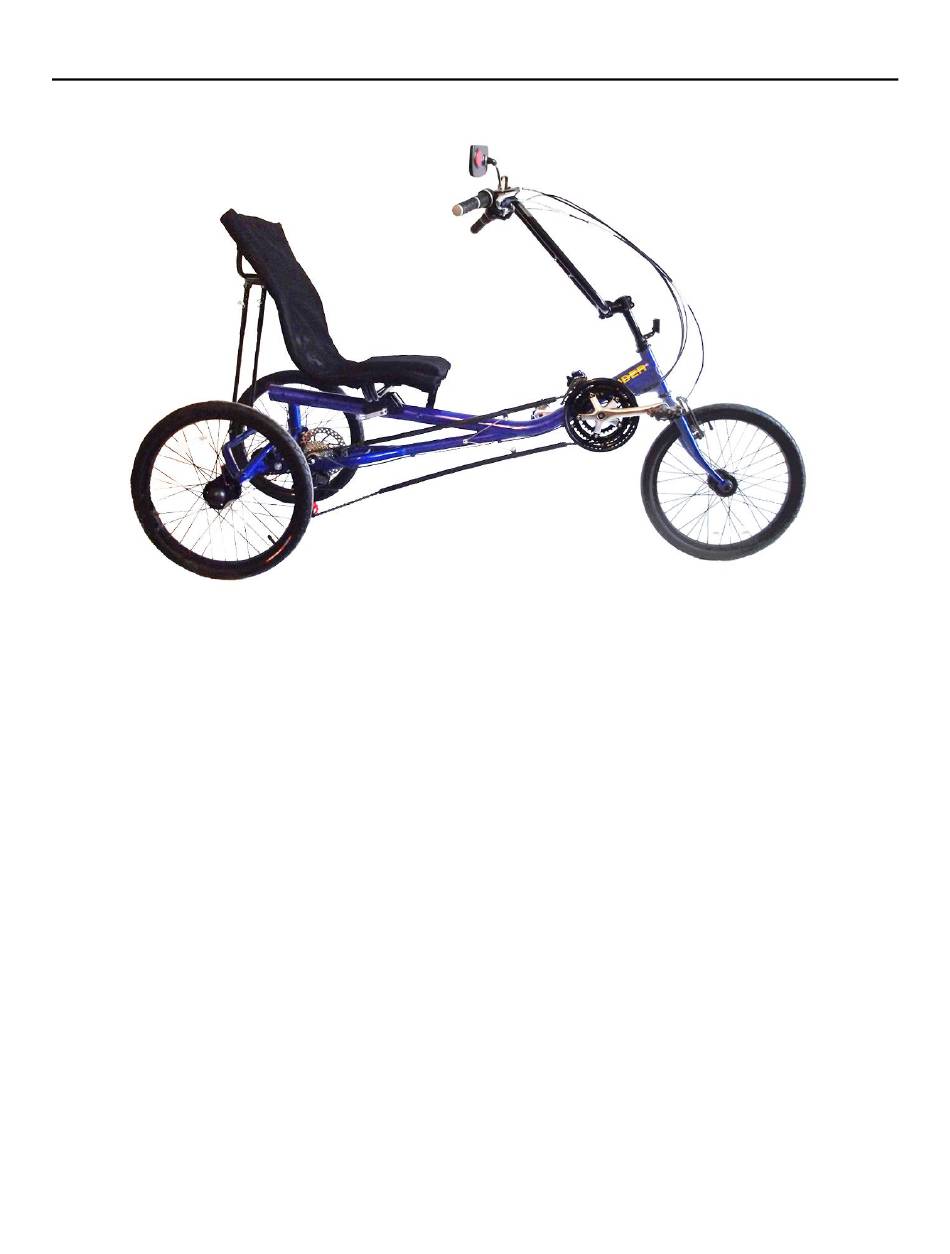

BELIZE BICYCLE

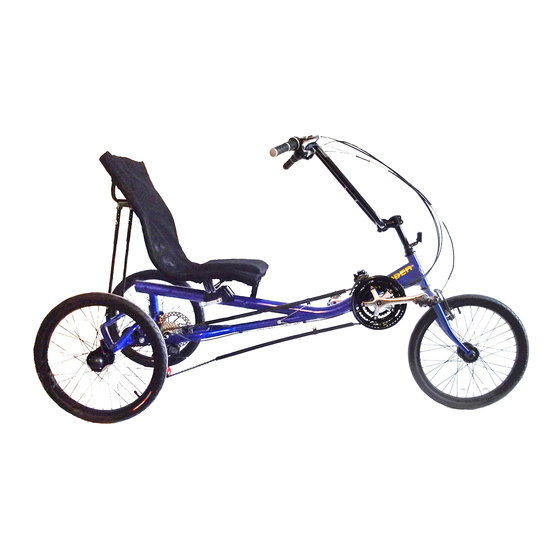

TRI-RIDER R-2 Recumbent Trike Assembly Guide
PREPARATION
1.
Read this assembly manual BEFORE commencing assembly.
2.
Carefully remove all the components and packaged hardware from the shipping box.
3.
Check the contents of the box and confirm that you have received a complete
package. The contents should include:
Contents:
(1)
A main frame assembly with fork, crankset, and drivetrain, pre-installed
One 20" left rear wheel assembly
(2)
One 20" right rear wheel assembly
(3)
One 20" front wheel assembly
(4)
Two 20" rear fenders
(5)
One 20" front fender
(6)
(7)
Rear seat support cage and mesh
(8)
Main seat platform
(9)
Handlebar with Shimano 3x6 twist shifters pre-installed.
(10)
Hardware and accessories
(11)
Small box containing hardware and accessories
Revision 2020-01-09
Page 1 of 8
Advertisement
Related Manuals for Belize Bicycle TRI-RIDER R-2
Summary of Contents for Belize Bicycle TRI-RIDER R-2
- Page 1 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 PREPARATION Read this assembly manual BEFORE commencing assembly. Carefully remove all the components and packaged hardware from the shipping box. Check the contents of the box and confirm that you have received a complete package.
- Page 2 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 Small box contents ITEM INSTALLATION Install in greased fork steering Gooseneck extension and stem tube Brake levers, Promax, V-brake 1 pair Install on handlebars Install between brake lever and V-brake cable, front, 27.5”...
- Page 3 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 ASSEMBLY Open the plastic bag containing mounting hardware. Group all similar nuts and bolts in preparation for assembly. Prop the front frame assembly vertically and align the rear frame section perpendicular to it.
- Page 4 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 Tighten all six bolts that hold the two frame sections together making sure that the rear is perpendicular to the front. The nuts will face to the outside and will be tightened from the outside.
- Page 5 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 by hand. Overtightening will side-load the bearings and cause premature wear and bearing failure. A clicking noise from the left wheel bearing while driving is a symptom of overtightening. Install the front wheel assembly making sure that the tabs on the safety washers fit into the holes on the fork and that the rim is centered in the fork arch before tightening the axle nuts.
- Page 6 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 Install the white reflector on the front steering stem. Install wheel reflectors on all three wheels (red on the rear wheels, orange or white on the front wheel). Install cable crimps after adjusting and trimming cables.
- Page 7 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 Page 7 of 8...
- Page 8 BELIZE BICYCLE TRI-RIDER R-2 Recumbent Trike Assembly Guide Revision 2020-01-09 V-Brake Assembly Note: For your own safety it is recommended that you bring the assembled tricycle to a competent bicycle mechanic for an inspection before using it. Page 8 of 8...
