BELIZE BICYCLE
Tri-Rider Tandem Assembly Guide
PREPARATION
Correct assembly is critical to avoid damaging components. Please review these
instructions BEFORE starting the assembly and refer to them during the assembly
process.
1.
Carefully remove all the components and packaged hardware from the shipping boxes.
2.
Check the contents of the two boxes and confirm that you have received a complete
package. The contents should include:
(a) Main box:
(1)
derailleur pre-installed
(2)
shifter and handlebar grips pre-installed
(3)
(4)
(5)
(b) Secondary box:
(1)
drive cog pre-installed
(2)

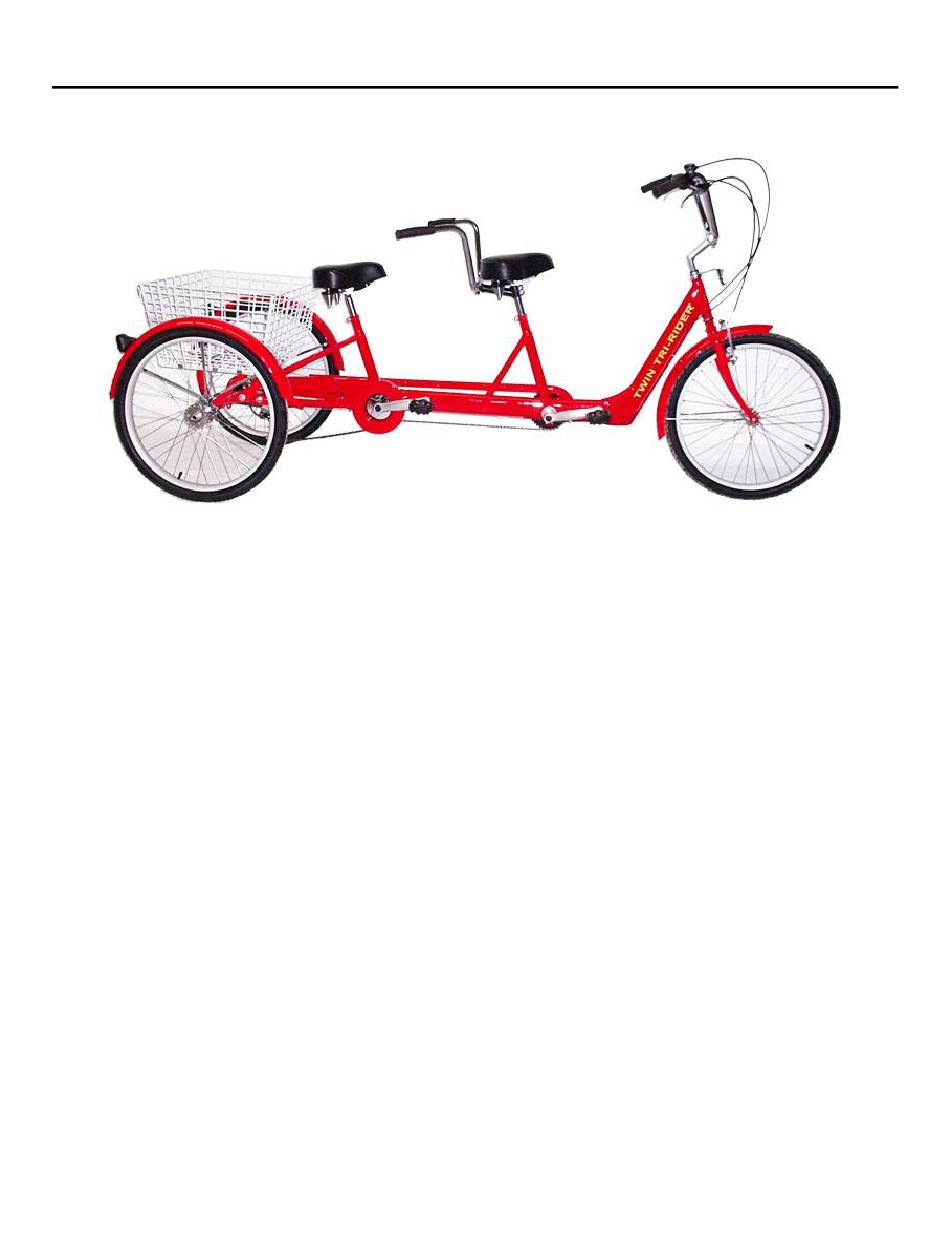

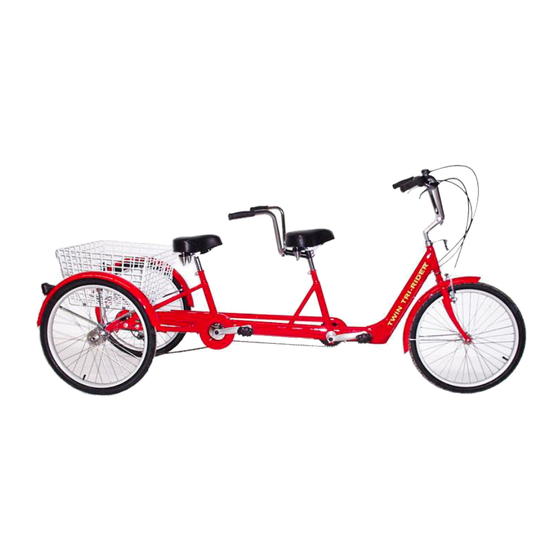

Twin Tri-Rider Tandem
A main frame assembly with cranks, chain, chainguards and Shimano
Two handlebars and quill stems with brake levers, Shimano 6-speed
Two seat and seat post assemblies
One stem to mount stoker handlebar on captain's seat post
Two 24-inch rear wheels, one 24-inch front wheel
Rear frame assembly and rear axle assembly with drum brake and final
Two rear fenders and one front fender / with fender stay installed
Revision 2019-06-11
Page 1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Belize Bicycle Twin Tri-Rider Tandem
Summary of Contents for Belize Bicycle Twin Tri-Rider Tandem
- Page 1 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Twin Tri-Rider Tandem PREPARATION Correct assembly is critical to avoid damaging components. Please review these instructions BEFORE starting the assembly and refer to them during the assembly process. Carefully remove all the components and packaged hardware from the shipping boxes.
- Page 2 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Two fender stays for rear fenders Plastic bag containing mounting hardware Two sets of pedals Two rear reflectors ASSEMBLY Correct assembly is critical to avoid damaging components. Please review these instructions BEFORE starting the assembly and refer to them during the assembly process.
- Page 3 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Used to cap rear brake cable after installation Cable end crimp Install on rear fenders using hardware Rear reflectors already installed on rear of reflector Chain and chain-link Install and tension the secondary drive chain...
- Page 4 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Important: To insure an optimal chain line for the secondary drive chain, loosen the grub screw anchoring the gear on the rear axle to permit it to float sideways. Install and tension the secondary drive chain and then re-tighten the grub screw.
- Page 5 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Install the gooseneck and handlebar assembly using the headset cover found in the small parts box (g) to hide the headset. Brake levers, shifter and grips are pre-installed on the handlebar. Complete the rear drum brake cable installation by passing the cable through the rear cable adjustment assembly.
-
Page 6: Care And Maintenance
BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Inflate the tires. The recommended tire pressure in marked on the tire sidewall. Adjust the handlebar angle and the seat height. Note: For your own safety it is recommended that you bring the assembled tricycle to a competent bicycle mechanic for an inspection before using it. - Page 7 BELIZE BICYCLE Tri-Rider Tandem Assembly Guide Revision 2019-06-11 Reflectors: Replace broken or missing reflectors. Chain guard: Replace if damaged or missing. REGULAR MAINTENANCE: Bi-Monthly 1. Keep all painted components clean and waxed. 2. Spray all chrome parts with protective spray (LPS-1, WD-40, etc.) 3.
