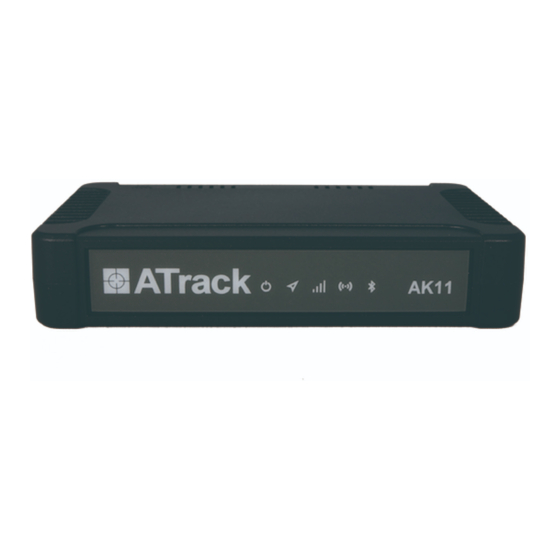

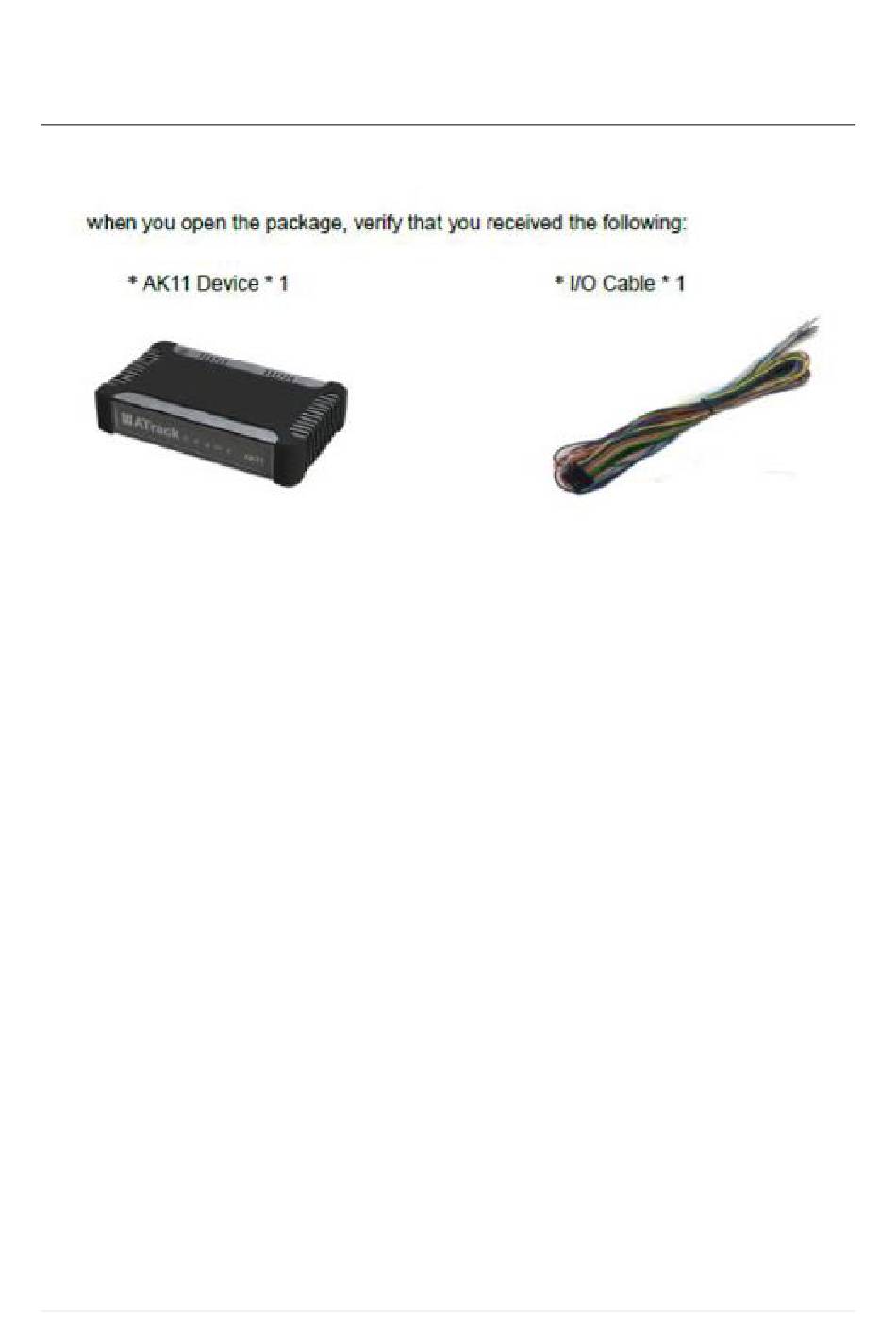

ATrack AK11 Installation Guide
1 Wiring Summary for Standard Tracking
Wiring:
Main Power –
RED
Connect to a direct and constant power supply.
NOTE: If the vehicle has an isolator, please run the connection before the isolator so that it
does not interfere with the main power of the unit when the engine is OFF.
Ignition – YELLOW wire (PIN 1)
Connect to ignition.
Pins 3-12 – Various Coloured wires
Do not connect unless instructed otherwise. Wires for use with other inputs/outputs.
Location:
• Install the unit inside hidden areas of the dashboard or behind the glovebox.
• Where possible, place the unit with LED lights facing OUT.
• The GPS signal will not travel through metals – Avoid placing the unit under closed
metal surfaces. The GPS signal will travel through NON ferrous materials. EG: Glass,
Plastics
1 |
P a g e
and BLACK wires (PIN 13 and PIN 14)
Advertisement
Table of Contents
Related Manuals for ATrack AK11
Summary of Contents for ATrack AK11
- Page 1 ATrack AK11 Installation Guide 1 Wiring Summary for Standard Tracking Wiring: Main Power – and BLACK wires (PIN 13 and PIN 14) Connect to a direct and constant power supply. NOTE: If the vehicle has an isolator, please run the connection before the isolator so that it does not interfere with the main power of the unit when the engine is OFF.
- Page 2 2 Power I/O Pin Assignment P a g e...
