Page 1: User Manual
User Manual Revision: 04 Revision Date: 2016/03/28 ATrack Technology Inc. Tel: +886-2-27975852 4F., No. 12, Wunhu St.,Neihu Dist., Fax: +886-2-27974030 Taipei City 11445, Taiwan (R.O.C.) http://www.atrack.com.tw... -
Page 2: Table Of Contents
2.4. Device Installation ........................8 Firmware Upgrade ......................... 9 3.1. Firmware Upgrade via RS232...................... 9 AT$IOCG Command Reference..................13 Appendix ..........................14 5.1. Hardware Specification ......................14 5.2. FCC Regulations ........................15 © ATrack Technology Inc. All Rights Reserved. Page 2 of 15... -
Page 3: Notification
ATrack Technology Inc. products shall be avoided. ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries. Any or all parts of this document shall not be exposed to non-authorized party without any form of approval from ATrack Technology Inc. -

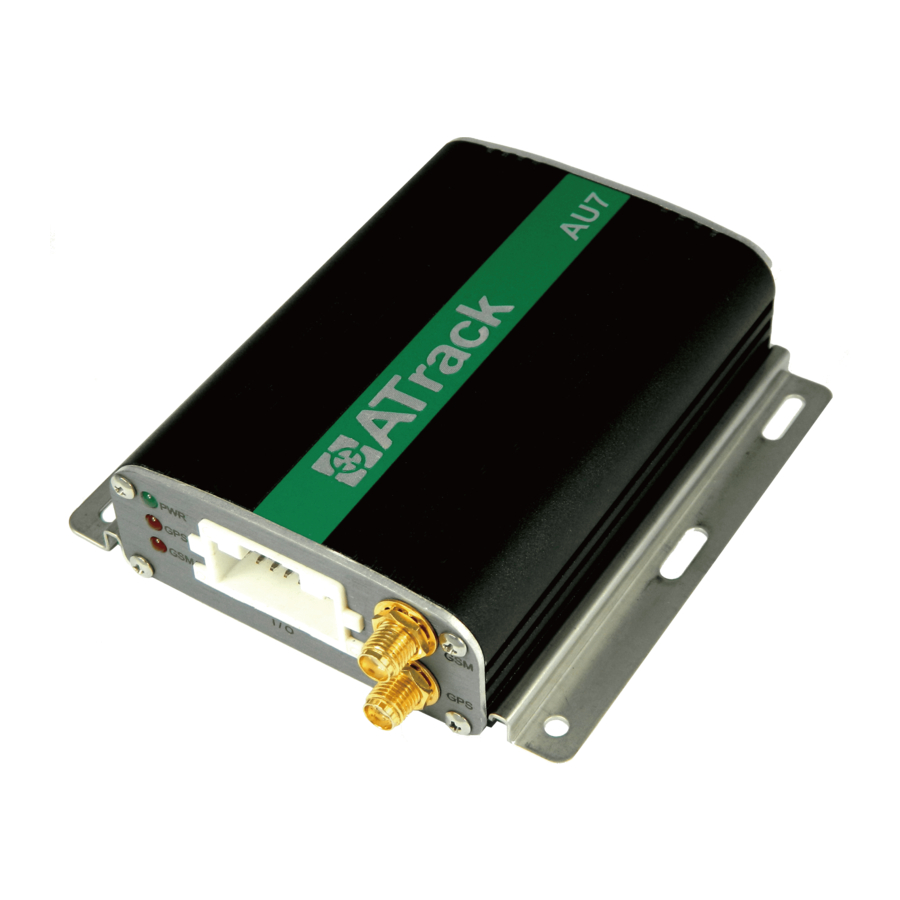

Page 4: Hardware
Each package contains the following device/accessories: Device * 1 GSM/UMTS Antenna * 1 GPS Antenna * 1 Power/IO Cable * 1 Serial Cable * 1 © ATrack Technology Inc. All Rights Reserved. Page 4 of 15... -
Page 5: Pin Assignments
The Pin 9 is a power output port to provide a 5V, 300mA power source for accessory that connects to the serial port. If the connected accessory requires more power, please use external power source instead. To support a wide range of hardware applications, the AU7 is equipped with a large number of inputs and outputs. - Page 6 Confidential Document Compatible Devices Supported by 1-Wire Application Family Code Model DS1990A (iButton) DS18B20 (Temperature Sensor) 16-pin male on-board Power I/O Connector 16-pin female Power I/O Cable © ATrack Technology Inc. All Rights Reserved. Page 6 of 15...
-
Page 7: Led Indications
SIM card will be locked. Once the SIM is locked, you need to contact your GSM carrier for the PUK in order to unlock the SIM card using your cell phone. © ATrack Technology Inc. All Rights Reserved. Page 7 of 15... -
Page 8: Device Installation
Confidential Document When installing the AU7 onto a vehicle, please make sure that the XYZ-position of the device follows the exact same directions as shown below. The G-Sensor operates in such a way in order to detect harsh driving events. The forces in each axis are used to determine the status of harsh driving events. If the following installation is not practicable, it is advised to use the GPS for detecting harsh driving as an alternative. -
Page 9: Firmware Upgrade
Confidential Document In this section, we are going to demonstrate how to do firmware upgrade on the AU7 via the serial connection. Before doing the upgrade, connect the serial cable between the JST XHP-4 output connector and the serial communication port (e.g. COM1 or COM2) on your PC. You may use a USB to serial port converter in case your PC doesn’t have any COM port. - Page 10 (3) Set the console baud rate to 57600. (4) Un-tick the check box next to Rest Parameter. (5) Click on the […] button to browse the firmware file where you saved. © ATrack Technology Inc. All Rights Reserved. Page 10 of 15...
- Page 11 Confidential Document (6) Select the firmware file “AU7_0.06.dat”. Click on the [Open] button. (7) Click on the [Open] button and power on the AU7. In this example, the AU7 is connected to a DC 12V power supply. © ATrack Technology Inc. All Rights Reserved.
- Page 12 Confidential Document (8) The firmware is being uploaded. (9) The AU7 is going to reboot after the firmware is uploaded. (10) Once the upload process is completed, the current version shows the latest firmware version. Click on the [Exit] button to exit the program.
-
Page 13: At$Iocg Command Reference
(1) Change Digital Output 4 to Analog Input 3 AT$IOCG=2 (2) Change Analog Input 3 to Digital Output 4 AT$IOCG=1 (3) Check the current state of the port AT$IOCG=? Remark MEMO SERIAL GPRS © ATrack Technology Inc. All Rights Reserved. Page 13 of 15... -
Page 14: Appendix
1 software configurable as either a digital output or an analog input 1-Wire Interface Supported up to 1 iButton and 4 temperature sensors Buzzer Output RS-232 Interface 1 (Configurable Baud Rate 1200bps~115200bps) Audio Interface 1 (Speaker and Microphone) © ATrack Technology Inc. All Rights Reserved. Page 14 of 15... -
Page 15: Fcc Regulations
FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. © ATrack Technology Inc. All Rights Reserved. Page 15 of 15...
