DAYTEK Laundry Quick Lock Fold Down Clothesline Installation Instructions

INSTALLATION INSTRUCTIONS

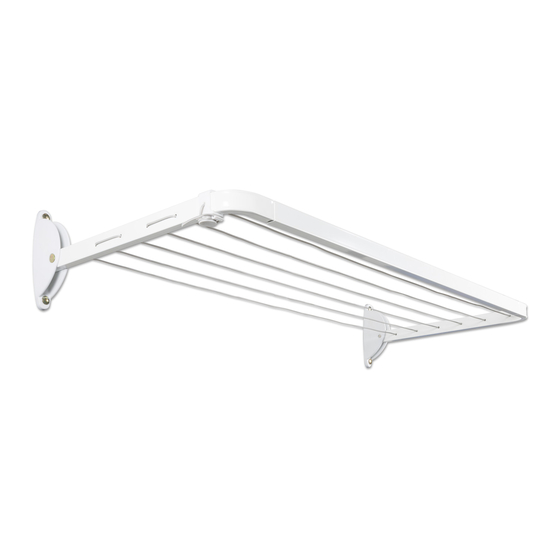

Laundry Quick Lock Fold Down Clothesline

Please check the carton contains all the required parts before assembly.

Your carton should contain the following:

1. Pre-assembled side-arms x 2

2. Front bar x 1

3. String (PVC line cord)

4. Wall Fixings x 4 (The fixings included with this clothesline are suitable for masonry

or timber only. For fixing to other materials please consult your local hardware

store or builder)

100% Australian Owned Company

daytek.com.au

Table of Contents

Need help?

Do you have a question about the Laundry Quick Lock Fold Down Clothesline and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS Laundry Quick Lock Fold Down Clothesline Please check the carton contains all the required parts before assembly. Your carton should contain the following: 1. Pre-assembled side-arms x 2 2. Front bar x 1 3. String (PVC line cord) 4.
Page 2 Incorrect installation could damage your wall or cause injury. Daytek bears no responsibility for improper mounting that results in accident, injury or damage. Always choose screws or fittings which are suitable for your wall material and have sufficient holding power.
Page 3 FOLD DOWN INSTALLATION PROCEDURE OPTIONAL SIZE ADJUSTMENT You can reduce the width of your clothesline to suit your space needs. TO REDUCE WIDTH: Determine your required wall bracket centres (distance between fixing points). Deduct the measured distance from the standard length (1200mm). The difference will need to be cut off the FRONT BAR. Example: If your required width is 900mm then you will need to reduce the overall length of the FRONT BAR by 300mm (1200mm - 900mm = 300mm).
Page 4 Any evidence of misuse or incorrect adjustment will void the to have the goods repaired or replaced if the goods fail to warranty. To claim a product warranty, please contact Daytek be acceptable quality and the failure does not amount to a Australia directly.
