Hitachi iH-110 Series User Manual

Hitachi iH-110 Series User Manual

Cash counter & discriminator
Hide thumbs Also See for iH-110 Series:

Advertisement

Cash Counter & Discriminator
Are you searching for a high efficient banknote detector?
Then look no further!
iH-110 is a machine to obtain all your needs and requirements.
It can accurately count notes and safely detect counterfeit all at high speed operation.
This compact machine performs more than you might imagine.
Experience one for yourself and you will find your search is finally over!
Rev. 2.0.0
Date: 2017. 10. 23

Advertisement

Table of Contents
loading

Summary of Contents for Hitachi iH-110 Series

  • Page 1 Cash Counter & Discriminator Are you searching for a high efficient banknote detector? Then look no further! iH-110 is a machine to obtain all your needs and requirements. It can accurately count notes and safely detect counterfeit all at high speed operation. This compact machine performs more than you might imagine.
  • Page 2: Table Of Contents

    4-4. Comm. Info......................... 41 4-5. USER Setting ........................47 4-6. Local Setting ........................48 4-7. Machine Info........................49 5. Machine Status ........................50 6. Specification..........................52 7. Error Code ..........................53 8. Maintenance ..........................55 Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 3: Introduction

    It denotes the contents in which mishandling of the product by Warning neglecting this indication may cause people serious injury. It denotes the contents in which mishandling of the product by Caution neglecting this indication may cause people light injury or, physical damage. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 4 Never try any prohibited matters. This symbol denotes that there are indication matters which should be done without fail. Please read the indicated matters thoroughly and always perform them as shown. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 5 1m or less from heating apparatus such as stoves, heaters etc. Any place with direct winds blown from air conditioners, ventilating openings etc. There are safety problems and deterioration of the product may be accelerated, which leads to any cause for failure. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 6 Do not use or put the combustible materials such as thinner, combustible gas, or a high-volatile object around/inside the product. Otherwise, it may cause explosion and/or fire due to heating from the product or flashing from power supply.. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 7 2. The product should be used at the specified frequency. If it is used at other than the specified frequency, it may cause an accident. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 8 4. Do not turn off air heating suddenly when the product is completely cold. Moisture may adhere inside the product due to sudden air heating and it may cause electric shock. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 9 3. When working ensure that all doors of the machine are locked. If a door is left open it may cause body injury or damage to property. Do not touch the gear etc. It may cause injury. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 10 2. The socket-outlet shall be installed near the equipment and shall be easily accessible. 3. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 11: Packing List

    Accurate recognition of serial voucher with full color Image and Sorts notes by fitness parameters number with full color image and OCR of MICR. accurate recognition of OCR for Barcode recognition with full color serial number. image. Hitachi Terminal Solutions Korea Co., Ltd.

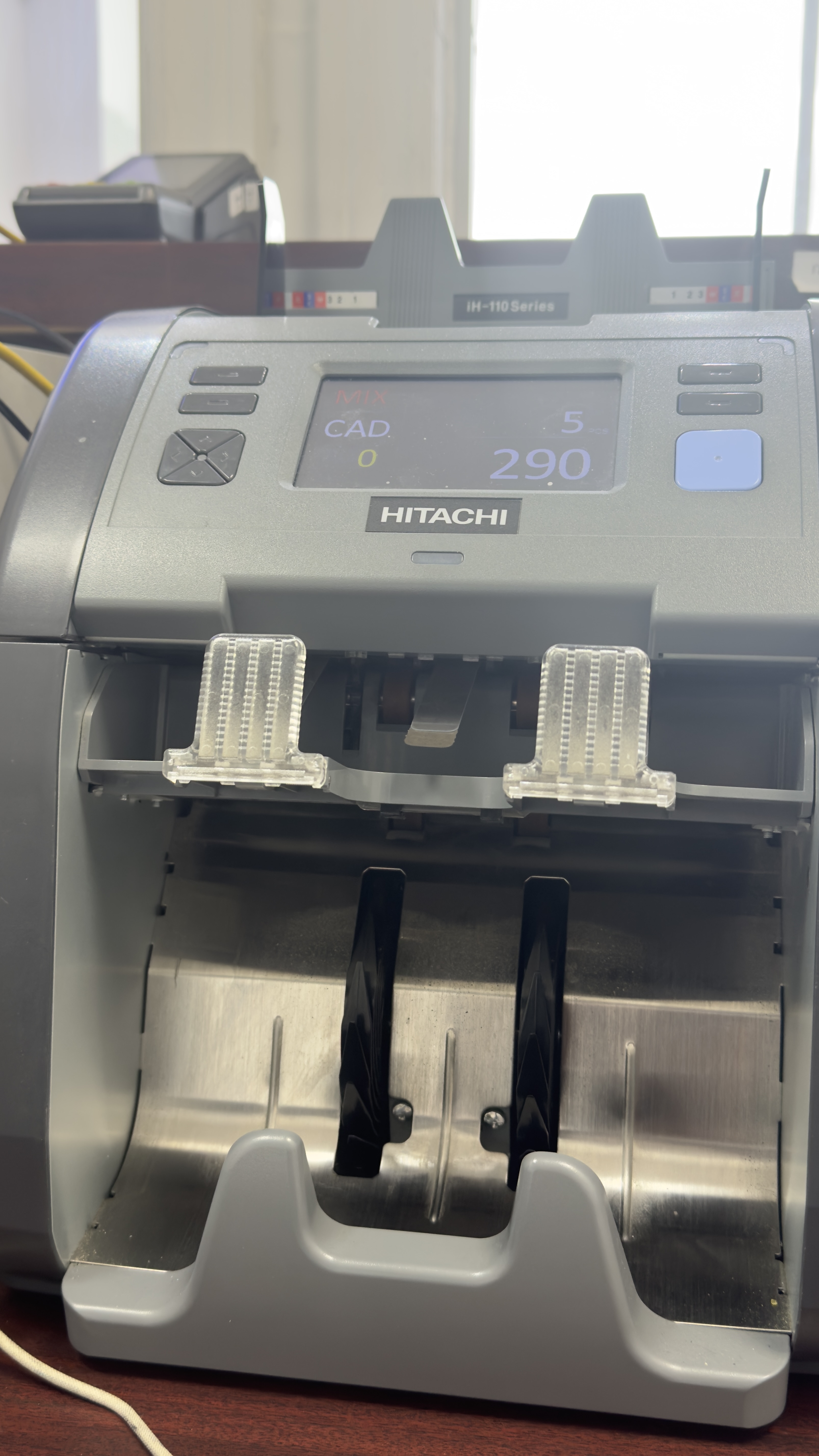

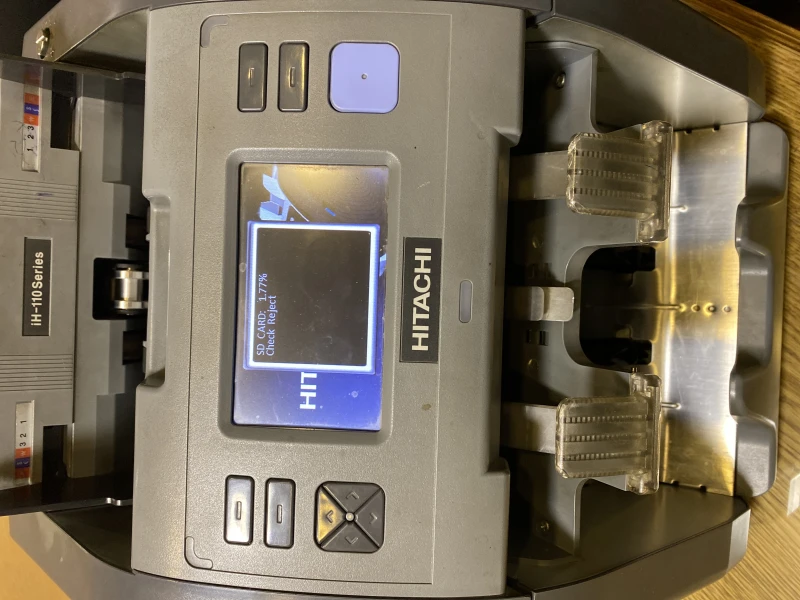

  • Page 12: Appearance

    User Guide Appearance <Front View> LCD Display Hopper Hopper Guide Operation Keys Reject Pocket Stacker <Rear View> Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 13: Before Using

    Socket USB-H Power Switch (PC) External USB-S Printer Display (Devices) Before Using Avoid counting wet, excessively dirty or spoiled notes. Check for foreign matter (paper chips, rubber bands, clips, dust etc.) mixed with notes. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 14: Key Operation

    1. Key Operation LED (L) LED (R) RS1 Key LS1 Key RS2 Key LS2 Key Start Key Arrow Key LED (B) Explain Short Key Change Mode and select Teller 1. Long Key View Operation. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 15 Green(Reject). ※ Special Key or Drag Pattern Operation ( Pincode is needed for some patterns. Screen Menu Mode(screen) Combination Drag Pattern Location 4-6. Local Setting L1 + R1 4-5. USER Setting L1 + R2 Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 16 User Guide 4-4. Comm. Info. L2 + R1 4-4. Comm. Info. L2+ R2 4-2. Operation None 3-1. Basic Count Mode None 3-7. Bookmark Long press L1 None Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 17: Display Operation

    User Guide Long press L2 None 2. Display Operation Hitachi Terminal Solutions Korea Co., Ltd.

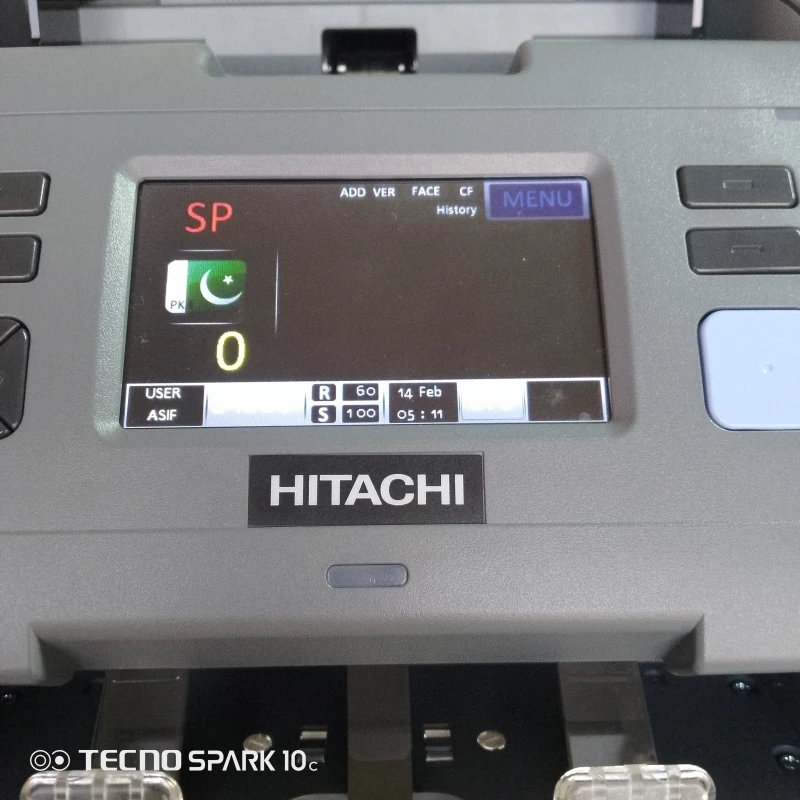

  • Page 18: Normal Operation

    Display and change Speed. Display and change Batch quantity of Reject and Stacker. Enter Menu screen. User Setting Mode. Date&Time Display and set date and time. User Display the current user. 3. Normal Operation Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 19: Basic Count Mode (Mix/Sp/Sg)

    If you want to see counting result in details with the image, please enter pincode first. ③ View counting result from Reject Pocket. If you want to see reject counting result in details with the image, please enter pincode first. SG Mode Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 20 User Guide A user can select the version and denomination which he counts. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 21: Sn Reading

    When order machines, you need to inform local currency that you want to install SN function. In SN mode, you can check the serial numbers about all counted notes on screen. If you want to see the image of serial numbers, please enter pincode first. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 22: Barcode Reading

    3-3. Barcode Reading (Only for iH-110B model) By long touch of Currency area, a user can select Barcode mode directly. In this mode, a user can count Barcode tickets and check the recognized Barcode directly. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 23: Check Reading (Micr)

    In this mode, a user can count Checks and see the recognized information directly. 3-5. Fitness (Only for IH-110F model) According to fitness parameters, iH-110 sorts clean banknotes. After select Currency, press LS1 Key for select FIT MIX or FIT SP. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 24 User Guide * How to set fitness parameters (Pincode is needed.) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 25 When touch the screen, user can change the denomination and version. ③ Fitness parameters There are 3 modes for adjusting Fitness Parameters. FIT 1 – MAX Area & Length Adjust Tear, Hole and Dog-Ear sensitivity about the largest damaged area of the note. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 26 FIT 2 – Total Area & Length Adjust Tear, Hole and Dog-Ear sensitivity about the whole(total) damaged area of the note. FIT 3 – FITNESS Level Adjust fitness parameters except Tear, Hole and Dog-Ear. Hitachi Terminal Solutions Korea Co., Ltd.

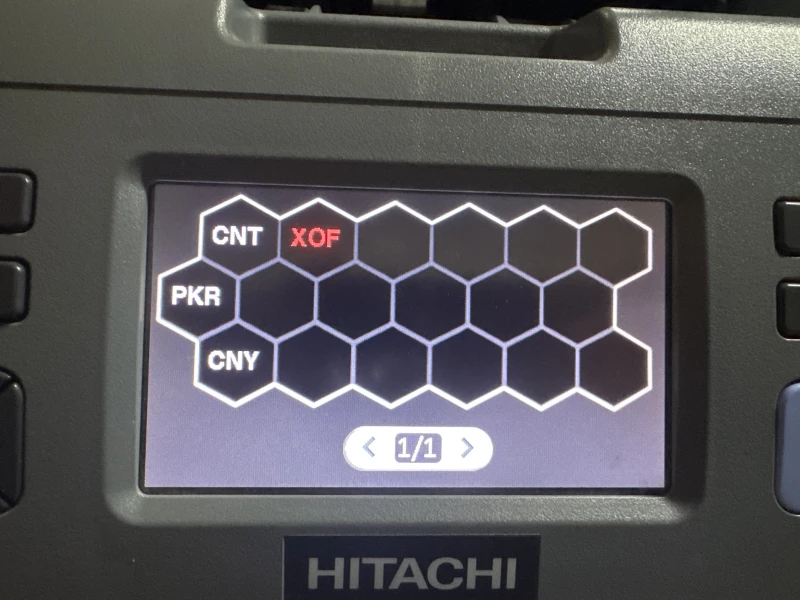

  • Page 27: Multi Mix

    (Max 16 currencies are available.) A user can also check the counting result in detail about each currency separately. When touch left or right side of Display, a user can see the details counting result of each currency. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 28: Multi Sc

    From Multi(Mix) screen, user can enter Multi SC mode. In Multi SC mode, the first recognized currency is accepted only and the others are rejected. Error code of the rejected other currencies is DIFF CURRENCY. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 29: Bookmark

    - Verify - During counting in ADD mode, use can verify counting result which already counted. - User Add - If this function is turned on, when remove the notes from Stacker, the machine asks you to add the counting result or not Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 30: Machine Settings

    After select currency first and enter ETC menu for setting the functions. 1) CF Set counterfeit detection method. The default function is UV, MG and IR are ON. If you want to change the functions, pincode is needed. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 31 When CF is detected, LED(B) is turned on. CF BUZZER When CF is detected, the warning buzzer is turned on. CF STOP when CF is detected, the machine is stopped. 2) Dispenser Count a batch of notes with being set amount. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 32 Enter Value of the batched notes. ③ The amount of the counted notes is reached to the set value, the machine is stopped. 3) SN Turn on or off SN Reading, SN Compare and SN Black-list. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 33 ③ rejected. ╋ : Enter serial number to black list. ━ : Delete serial number from black list. 4) GT User can clear Grand Total or send Grand Total to Printer, USD or ENET. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 34 USB(D) – GT result is exported via USB Port. ENET – GT result is exported via LAN port. ④ Current GT Result. 5) Batch Option ① ① WARNING If Batch is not completed, Warning ② message is shown with alarm. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 35 When next Batch is started, the displayed value is started from 0. When Batch is not complete, the machine makes the warning sound. 6) Manual ADD An arbitrary amount can be added to counting result by a user Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 36 Add counting result manually by entering coin values. ⑤ Total Value Total Amount after adding amount manually. 7) Deposit Enter the client information, account no, type of deposit and keep and print value of the deposit. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 37 - USB(H) – The result is saved to USB Stick by XML file. (D:\ih-110\deposit\xxx.XML) - ENET – The result is exported via LAN port. 8) Log Save counting result daily. ① ② ④ ③ ⑤ Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 38 From Main Screen, select Currency and enter Size Cal menu. Select denomination which you want to check Size. After put the note on Hopper, touch “Start” icon. The note is counted automatically and Size and Image data of the note is shown. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 39 User Guide 10) ETC A user can set the counting conditions by himself. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 40: Operation

    Stacker condition 2 A user can sort banknotes by Version, Direction and Orientation of the first counted note. ③ ADD function Turn on and off ADD function. ④ MANUAL START Start Counting operation manually. 4-2. Operation Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 41 When touch from Main Screen, the hidden menus are show. Select(or enter) Operation. 1) LCD-BRIGHT Adjust LCD brightness level. 2) DENON-disp Show the denomination info. On Main screen. 3) LANGUAGE Select the displayed language. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 42 Reject the withdrawn old and new version GBP. 8) JPY OLD - REJ Reject old version JPY. 9) SNC ALL DIGIT Compare all caracters of serial numbers when SN Compare is turned on. 10) PC-Protocol Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 43 User Guide Machine sends the counting result via USB Port to PC. 11) STACKER WARNING When Stacker Warning message is displayed, the machine is stopped to count for the selected time. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 44: System Setting

    User Guide 4-3. System Setting When touch from Main Screen, the hidden menus are show. Select(or enter) System Setting. 1) RTC Set date and time. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 45 - SN - A user can select the printed data type of Serial Number. OCR – Caracters by OCR are printed. Image – the scanned images are printed. The printing speed is very slow. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 46 The same screen of Machine is displayed on External Display. - Count/Value Only quantity and amount are displayed. - DENOM Count result by denominations is displayed. 4) KEY A user can change Key operation personally. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 47: Comm. Info

    User Guide 5) TACO User can see Tacometer of the machine. 4-4. Comm. Info (Comminication Setting) When touch from Main Screen, the hidden menus are show. Select(or enter) Comm. Info. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 48 Select – Select the file for special upgrading. ② Load – Load data and settings from USB to Machine. ③ For example, User Info, Exported data and etc. Export – Export data to USB. ④ Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 49 User Guide 2) ENET ① ② ③ ④ Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 50 After connect Machine to PC by ENET, click this button. ② Save Save button of MAC, IP and etc. ③ Load Load button for loading ENET information from USB. ④ Server Set Sever and HOST. 3) DATA Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 51 Including Note info, CIS Color Image is tranferred. 4) PIN Some modes and menues are hide only for engineers. You can enter the hidden screen by enterring Pincode. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 52 Before user 2 Teller mode, you need to add thesecond User to the machine first. (1) Press L1 and RS2 Key together from Main screen. (2) You can see Machine Information Screen as below. (3) Select User Number by pressing Arrow Key. (For example, USER2.) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 53 (4) Touch INFORMATION area and enter USER, BANK and BRANCH information. (5) After enter all information, press RS1 Key for saving. You can delete the information by pressing RS2 Key. When press START Key, you can exit the menu. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 54 User Guide Teller 2 Teller 1 LS 1: Select Teller 1. RS 1: Select Teller 2. LS 2: Print Counting result RS 2: Print Counting result of Teller 1. of Teller 2. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 55: User Setting

    4-5. USER Setting (Pincode is needed.) When touch from Main Screen, the hidden menus are show. Select(or enter) USER Setting. Enter User name, Bank name and Brach name for each user. The entered data can be printed to Receipt. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 56: Local Setting

    IR, UV, MG and DBL(Double Level). (Range 0 ~ 100) ② Changed Levels can be applied for all included currencies, version or denomination at once. ③ A user can load or export local levels. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 57: Machine Info

    By Network, USB Cable and USB Stick, Note Information, Data Acquistion and Scanned data are tranferred - LOCAL Check all installed currencies. - Multi Check the currencies which are availble int Multi-Mix mode. - SN Check the currencies with Serial Reading function. - HELP Under developing Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 58: Machine Status

    User Guide 5. Machine Status (Pincode is needed.) 5-1. MOTOR Test 3 kinds of Motor by a simple touch. 5-2. SOL Test Solenoid condition. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 59 Check the condtion of internal and external count sensors. 5-4. Monitor Check and monitor CPU internal power and temperature. If some problems are caused, warning message is shown on Main Screen. 5-5. FR-LED Test the conditions of 3 LEDs. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 60: Specification

    LAN, USB, (EX-DP), (Printer) Dimension 300(W) x 320(D) x 315(H) Weight Approx. 13 Kg Power Supply 100 ~ 240V~ AC, 50/60 Hz External Display, Thermal Printer, OSD(ON Screen Options Display) Operating 5 - 35℃ Temperature Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 61: Error Code

    X size is longer or shorter than the reference value. YSIZE Y size is longer or shorter than the reference value. XYSIZE reserved FAN X reserved FAN Y reserved FAN XY reserved SLOPE reserved Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 62 SN BLACK LIST (SN Black List - ON) BAR WRONG SIDE No Barcode is found. BAR SEARCH Failed to find the start position of the barcode. BAR WT reserved BAR NP reserved ERROR BARCODE reserved Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 63 UNFIT(000200) DOGEAR2 UNFIT(000400) DOGEAR3 UNFIT(000800) DOGEAR4 UNFIT(001000) HOLE1 UNFIT(002000) HOLE2 UNFIT(004000) HOLE3 UNFIT(008000) HOLE4 UNFIT(010000) TEAR1 UNFIT(020000) TEAR2 UNFIT(040000) TEAR3 UNFIT(080000) TEAR4 UNFIT(100000) TAPE_VERTICAL UNFIT(200000) TAPE_HORIZENTAL UNFIT(XXXXXX) Multi UNFIT Error ??????? Unregistered error occurred Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 64: Maintenance

    Users are recommended to clean the machine sensors at least once a day. Refer to following section and clean the machine regularly. ※ Please turn the power off before cleaning the machine. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 65 User Guide Up Sensor Module Down Sensor Module Lower Drive Body Hopper sensor Stacker sensor Dust Tray Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 66 User Guide Hitachi Terminal Solutions Korea Co., Ltd.
