Resistors - JOLIN LAB BATA Build Manual

resistors:

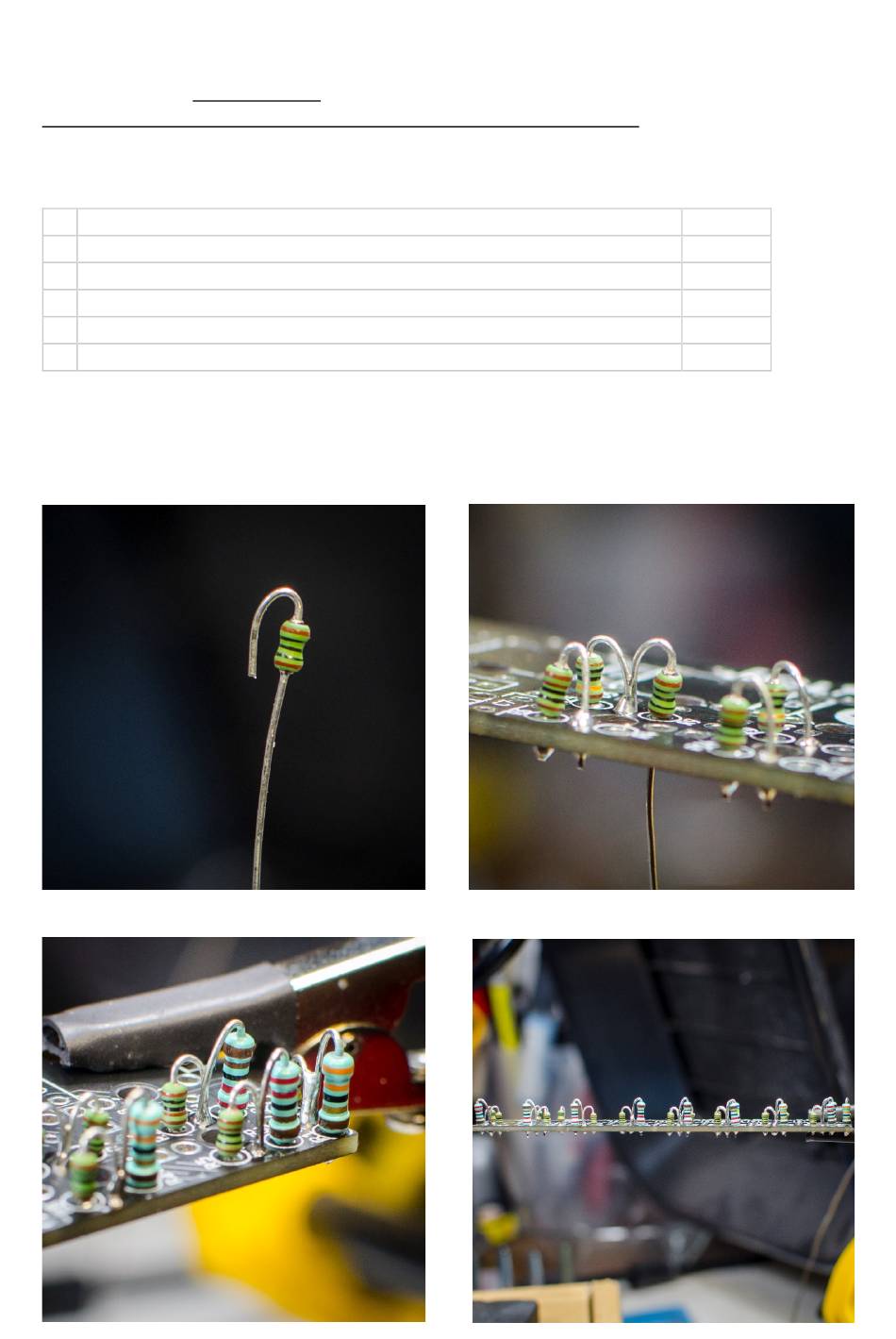

They are placed in vertical position.
The body of the resistor goes on top of the white circle marked on the PCB.
If two resistors are placed mirrored one in front of the other and both their legs don't fit into the hole
don't worry: cut the bent leg of one of the two resistors and solder it from the top.
tip: they don't have a polarity; this precaution is due to avoid them touching while soldered.
2 R19, R20
3 R7, R8, R9
1 R18
8 R2, R5, R6, R11, R14, R15, R17, R22
8 R1, R3, R4, R10, R12, R13, R16, R21
8 R23, R24, R25, R26, R27, R28, R29, R30
33r
100r
649r
1k
2.2k
100k
