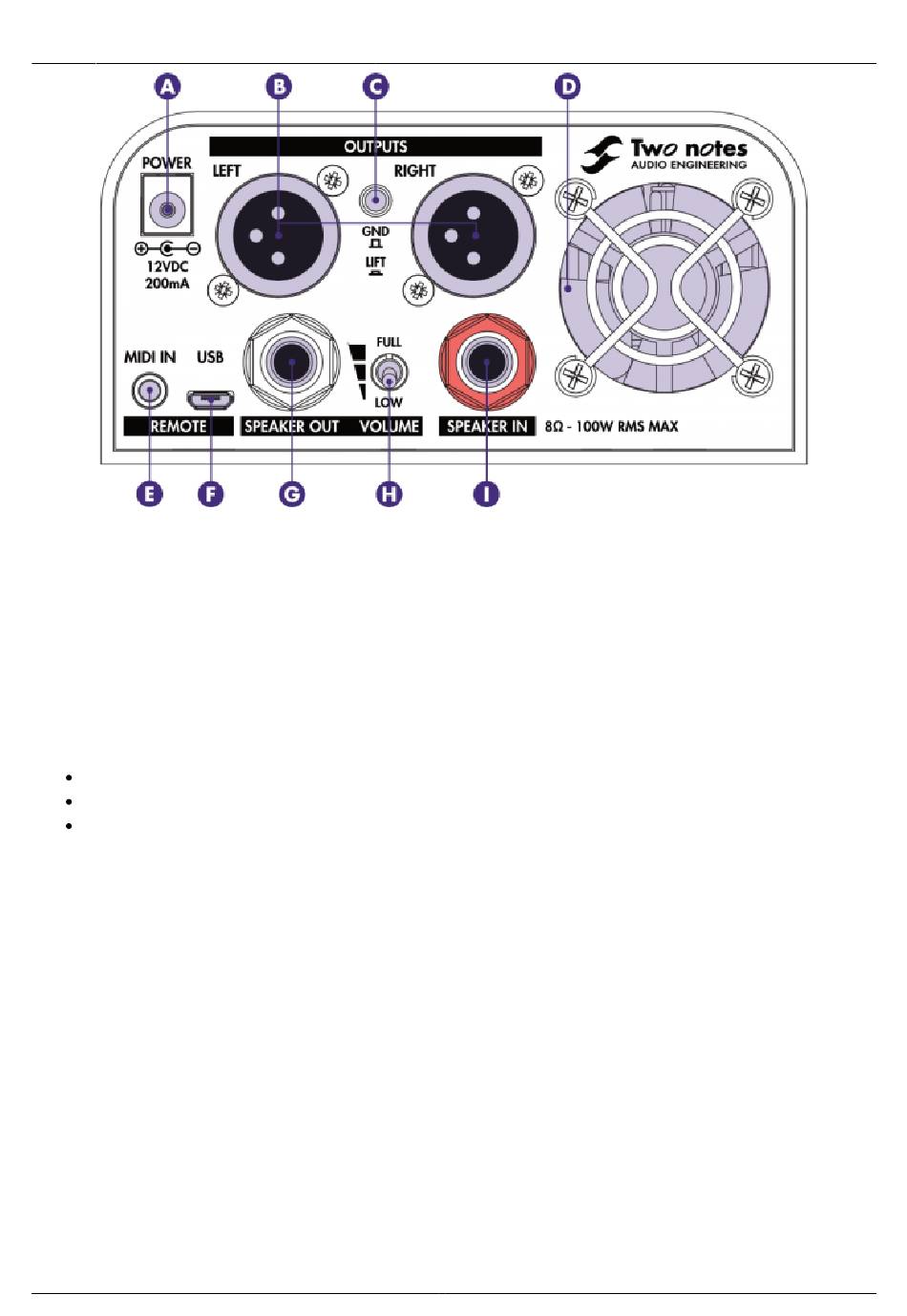

A- Power the unit with the supplied adapter (only use correctly rated power supply);
B- Send Stereo, Dual Mono or Dry/Wet signals through the XLR DI outputs;
C- Eliminate unwanted hum caused by ground loops;
D- Ensure the fan is kept clear;
E- Connect the supplied ⅛" jack to MIDI cable adapter for MIDI control;
F- Control Torpedo Captor X from a computer (Windows or macOS) via Torpedo Remote. USB cable
supplied;
G- Connect speaker cabinet here with a ¼" jack SPEAKER cable;
H- Choose your cabinet volume level:
Low position is "Home" level
Halfway position is "Club" level
Full position is "Stadium" level
I- Connect your amplifier's output here with a ¼" jack speaker cable (100W RMS max admissible
power)
3.5 Connecting the Torpedo Captor X
4. Configuring and using the Torpedo Captor
X
The Torpedo Captor X has several quick access knobs to make on the fly editing quick and easy. The
OUT LEVEL sets the global output level of the unit, VOICING is fast global EQ, PRESET allows you to
have access to 6 presets straight from the unit. To edit all the parameters of the Torpedo Captor X,
you will need to use Torpedo Remote on your computer (USB connection) or your mobile device
