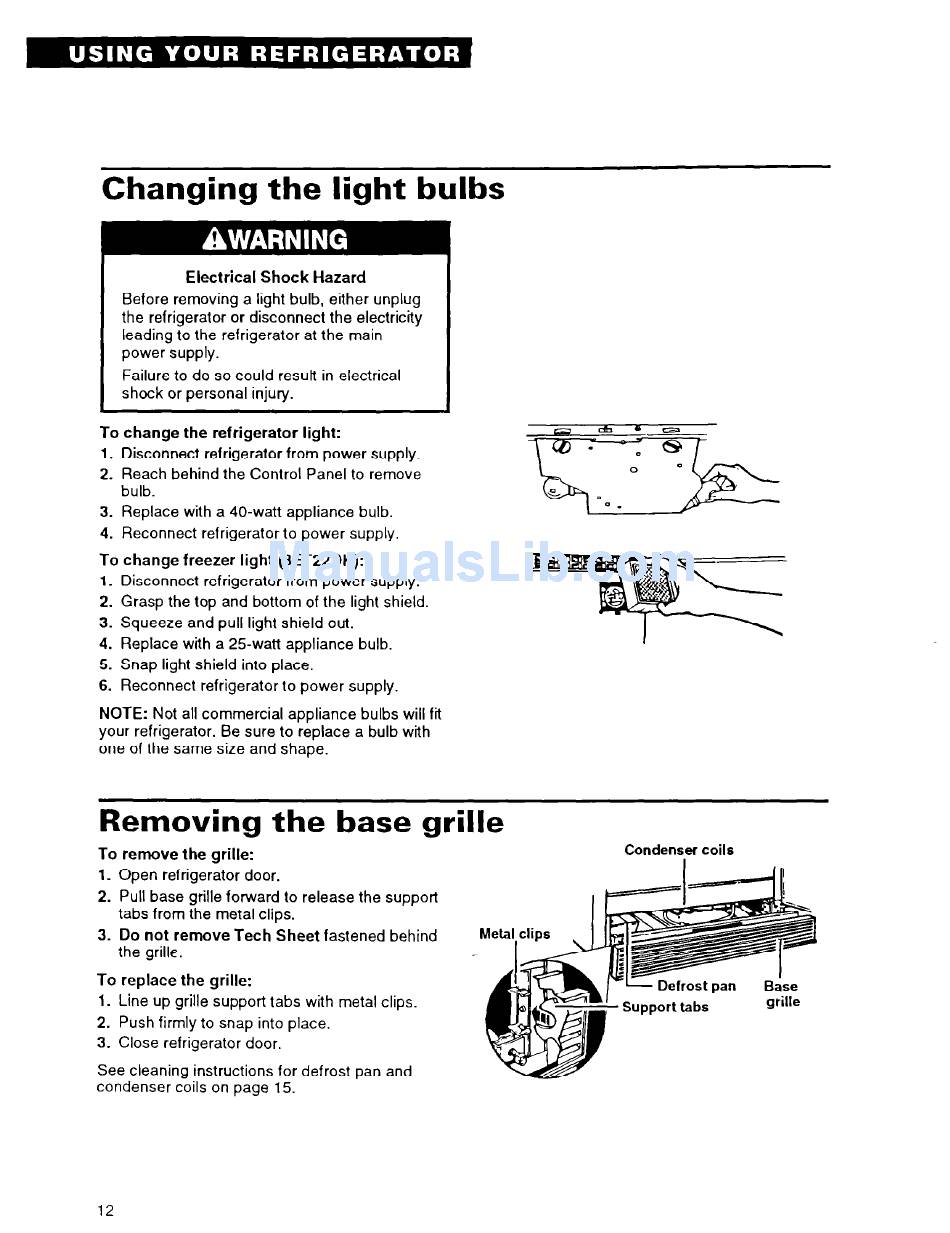

The Light Bulbs; The Base Grille - Whirlpool 3ET22DK Use And Care Manual

Changing the light bulbs
Electrical Shock Hazard
Before removing a light bulb, either unplug
the refrigerator or disconnect the electricity
leading to the refrigerator at the main
power supply.
Failure to do so could resuft in electrical
shock or personal injury.
To change the refrigerator light:
1.
Disconnect refrigerator from power supply.
2. Reach behind the Control Panel to remove
bulb.
3. Replace with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
To change freezer light (3ET22DK):
1.
Disconnect refrigerator from power supply.
2. Grasp the top and bottom of the light shield.
3. Squeeze and pull light shield out.
4. Replace with a 25watt appliance bulb.
5. Snap light shield into place.
6. Reconnect refrigerator to power supply.
NOTE:
Not all commercial appliance bulbs will fit
your refrigerator. Be sure to replace a bulb with
one of the same size and shape.
Removing the base g
To remove the grille:
l_
Open refrigerator door.
2. Pull base grille forward to release the support
tabs from the metal clips.
3.
Do not remove Tech Sheet
fastened behind
the grille.
To replace the grille:
1.
Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close refrigerator door.
See cleaning instructions for defrost pan and
condenser coils on page I 5.
le
Condenser coils
12
