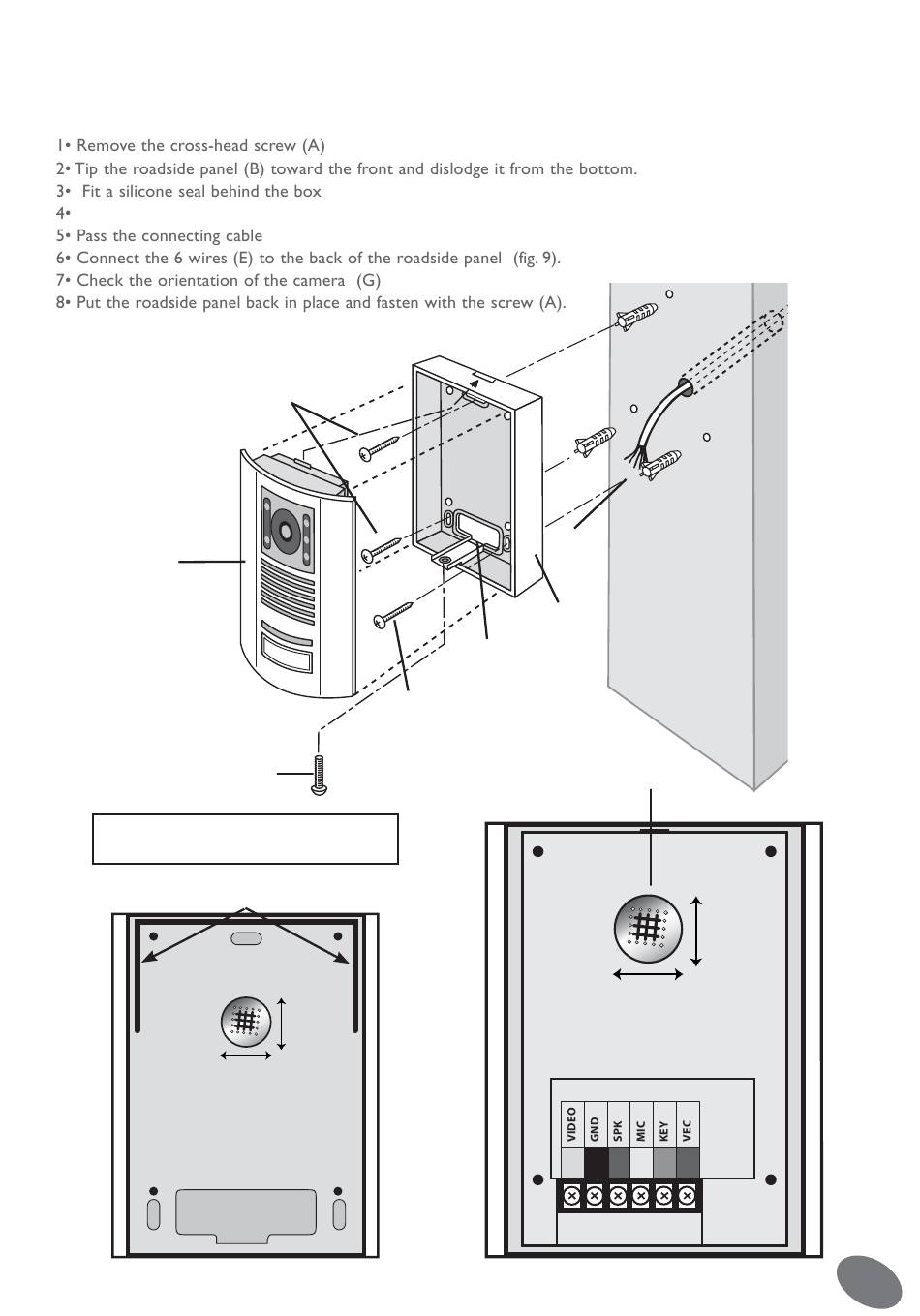

Installing the roadside panel
Tip : we recommend running the cables (for the roadside panel and the electric strike plate) through a conduit
to protect them from impacts and the elements. To avoid oxidation and poor contacts, , do not trim the excess
from the 6-conductor cable. Instead, wind it around itself between the post and the electronic box (fig. 7).
Using the 3 screws (F), mount the box (C) flush with the wall so that the slot (D) is facing the cable (E)
fig.7
B
Warning : to avoid condensation, place the
seal only along the top of the box (C).
Silicone seal
fig.8
(C) to protect it from water running down the wall. (fig. 8).
F
F
A
CFI EXTEL WEVPSF 659 - 06/2010 - V1
E
C
D
fig.9
VIDEO : yellow wire
GND : black wire
SPK : brown wire
G
MIC : white wire
KEY : green wire
VCC : red wire
