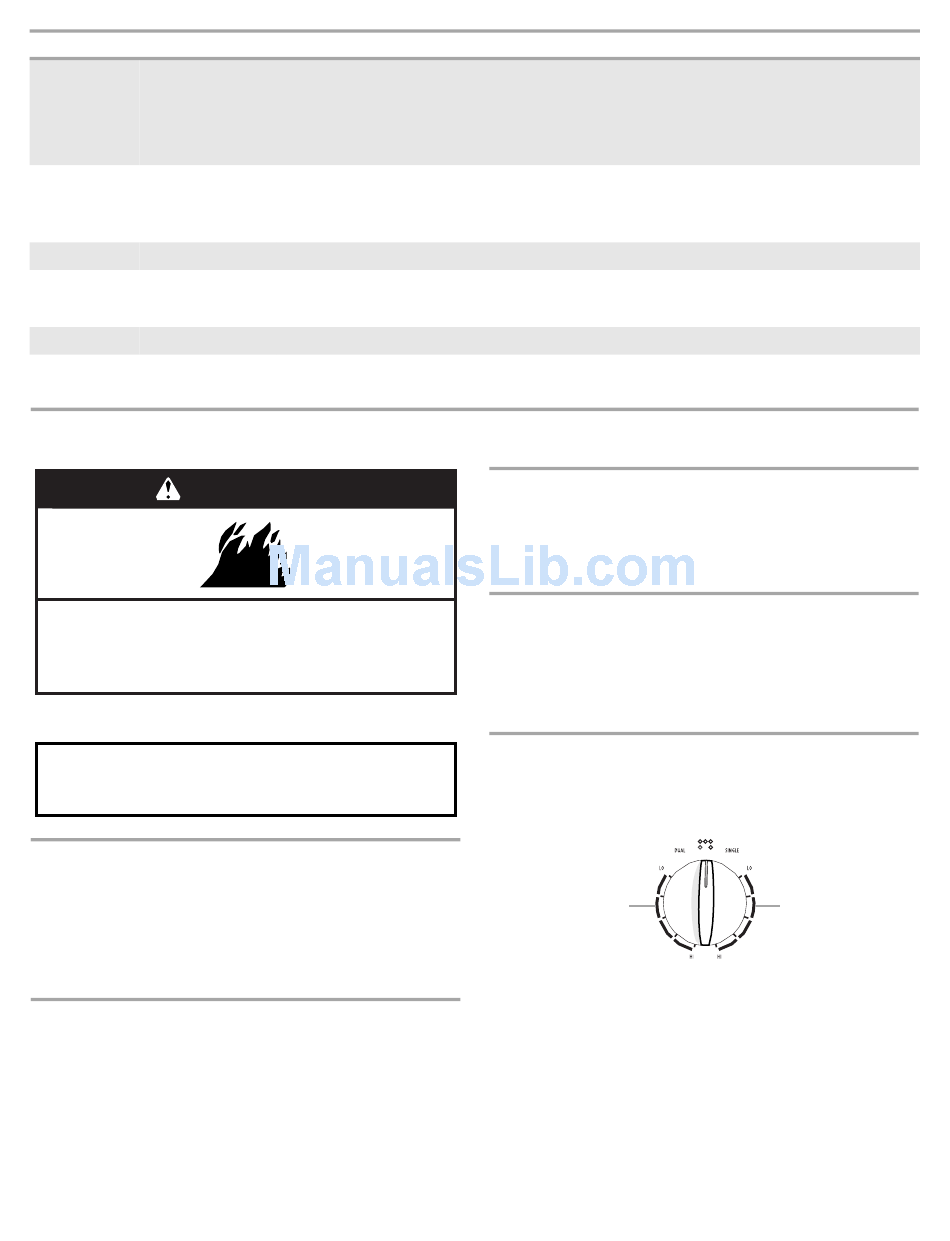

Cooktop Use - Whirlpool W10204316B User Instructions

Electric range
Hide thumbs


Hold warm
Timed cooking
(on some
Delayed start
Cooking start
Range function
Temperature and
time adjust
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
The control knobs can be set to anywhere between HI and LO.
Push in and turn to setting.
REMEMBER: When range is in use or (on some models)
during the Self-Cleaning cycle, the entire cooktop area may
become hot.
Ceramic Glass (on some models)
The surface cooking area will glow red when an element is on. It
may cycle on and off to maintain the selected heat level.
Use cookware about the same size as the surface cooking area.
Cookware should not extend more than ½" (1.3 cm) outside the
Cleaning off the cooktop before and after each use will help keep it
free from stains and provide the most even heating.
Cooktop On Indicator Light (on some models)
The Cooktop On indicator light is located on the console panel.
When any control knob on the console panel is turned on, the
Cooktop On indicator light will glow.
Food must be at serving temperature before placing it in the warmed oven.
1. Press WARM.
2. Temperature is set at 170°F (75°C) for 60 minutes (1.00 hours).
3. Press START.
4. Press CANCEL/OFF when finished.
Timed Cooking allows the oven to be set to turn on at a certain time of day, cook for a set length of
time, and/or shut off automatically. Delay start should not be used for foods such as breads and
cakes because they may not bake properly.
To set a Timed Cook or a Delayed Timed Cook see "Timed Cooking" section.
The Start Time keypad is used to enter the starting time for an oven function with a delayed start.
The Start pad begins any oven function. If Start is not pressed within 5 seconds, "PUSH?" or
"PSH" appears in the display. If start is not pressed within 1 minute after pressing a keypad, the
function is canceled and the time of day is displayed.
The Cancel/Off keypad stops any function except the Clock, Timer, and Oven Control Lockout.
The "+" or "-" arrow pads are used to adjust time and temperature settings.


Hot Surface Indicator Light (on some models)
On ceramic glass models, the hot surface indicator light is located
on the console panel.
The hot surface indicator light will glow as long as any surface
cooking area is too hot to touch, even after the surface cooking
area is turned off.
Coil Elements and Burner Bowls (on some models)
Coil elements should be level for optimal cooking results. Burner
bowls, when clean, reflect heat back to the cookware. They also
help catch spills.
Cookware should not extend more than ½" (1.3 cm) over the coil
element. If cookware is uneven or too large, it can produce excess
heat, causing the burner bowl to change color.
Dual Cooking Zone (on some models)
The Dual Cooking Zone offers flexibility depending on the size of
the cookware. Single size can be used in the same way as a regular
element. The dual size combines both the single and outer element
and is recommended for larger size cookware.
A. Dual
B. Single
