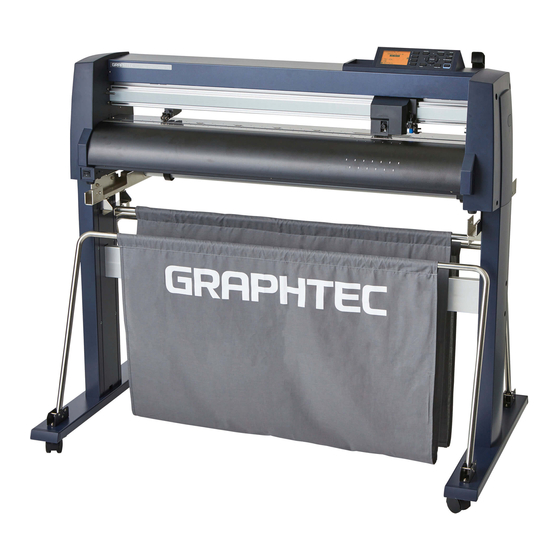

SETUP MANUAL
This manual provides the setup procedure. For details on
each function, refer to the instruction manual (PDF) in the
supplied DVD.

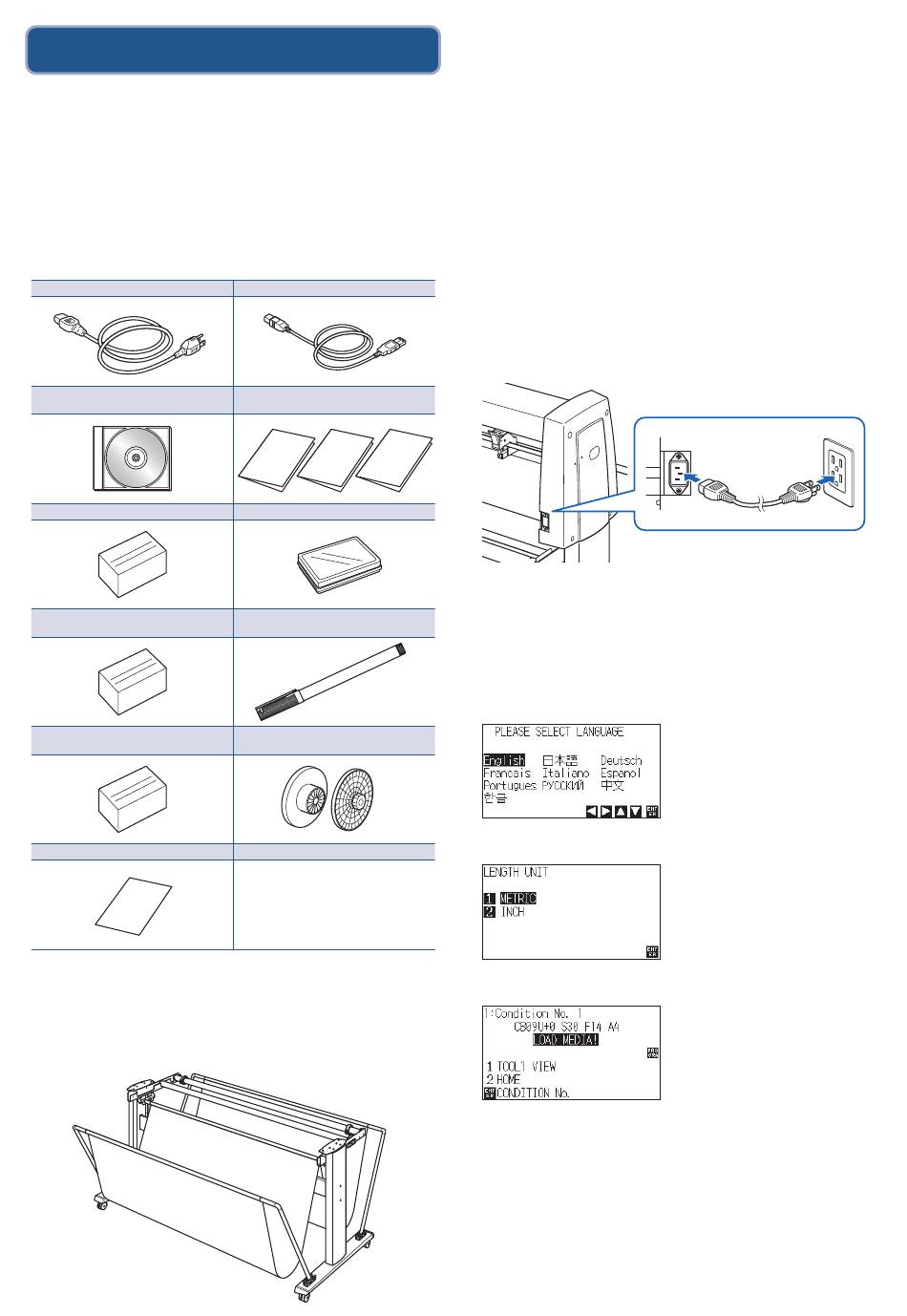

Checking the Accessories
Please check that all the accessories are complete. If you
find any accessories missing, please contact the distributor
where you purchased or our customer center immediately.
Accessories
Power cable
DVD (Various software
/ User's Manual [pdf])
Cutter plunger (PHP33-CB09N-HS) 1 pc. Cutter blades (CB09UB [1P])
Water-based fiber pen adapter (PHP31-FIBER)
(Plunger/Height adjustment tool.)
Cutter blade adjustment magnifier
(PM-CT-001)
Software Activation Code
1 sht.
* In addition, various information may be attached.
* Accessories may vary depending on the sales area.
* For details, please contact the distributor where you purchased.
Dedicated accessories
A stand (with a basket) is supplied.
* Dedicated accessories may be different.
1 pc. USB cable
SETUP MANUAL, TO ENSURE SAFE AND
1 pc.
CORRECT USE, Cutter Blade Manual 1 of each
Water-based fiber pen (KF700-BK [1P])
1 set
Flange set (OPH-A21)
1 pc.
Installing driver/software
The latest driver / software version and installation
instructions are available at:
http://www.graphteccorp.com/support/index.html
Please download it if necessary.
•
Windows driver (Do not connect the computer to the cutting
plotter before installing.)
•
Graphtec Pro Studio (Windows)
•
Cutting Master 4 (Windows/Mac)
•
Graphtec Studio (Mac)
Connecting to the Power
1 pc.
Make sure that the power switch is off (O side), and make a
connection between the power connector of the cutting
plotter and the AC outlet of specified voltage using the
supplied power cable.
1 pc.
Initial setup screen
1 pc.
The initial setup screen is displayed only when the power is
first turned on. Then select "DISPLAY LANGUAGE" and
"LENGTH UNIT". When the power switch is turned on
(I side), a message is displayed after displaying the version.
1 set
Select a language (English) and press the [ENTER] key.
Select the length unit and press the [ENTER] key.
It will return to default screen.
Advertisement
Related Manuals for GRAPHTEC FC9000
Summary of Contents for GRAPHTEC FC9000
- Page 1 DVD. Windows driver (Do not connect the computer to the cutting plotter before installing.) Checking the Accessories • Graphtec Pro Studio (Windows) • Cutting Master 4 (Windows/Mac) Please check that all the accessories are complete. If you • Graphtec Studio (Mac) find any accessories missing, please contact the distributor where you purchased or our customer center immediately.
- Page 2 Connection to computer Aligning the push roller Make a connection between the cutting plotter and the Lower the media set lever to raise the push rollers. Adjust the computer using your interface cable. The available interface left and right push roller positions according to the width of is USB/Network/RS-232C (It depends on the sales area.).
- Page 3 Media set selection How to check offset Check if the offset value is set correctly by following. Load the media, raise the media set lever, and lower the push roller. Select the media type according to the set media The corners are rounded: type.
