Summary of Contents for Vibe PULSE CBR 12A

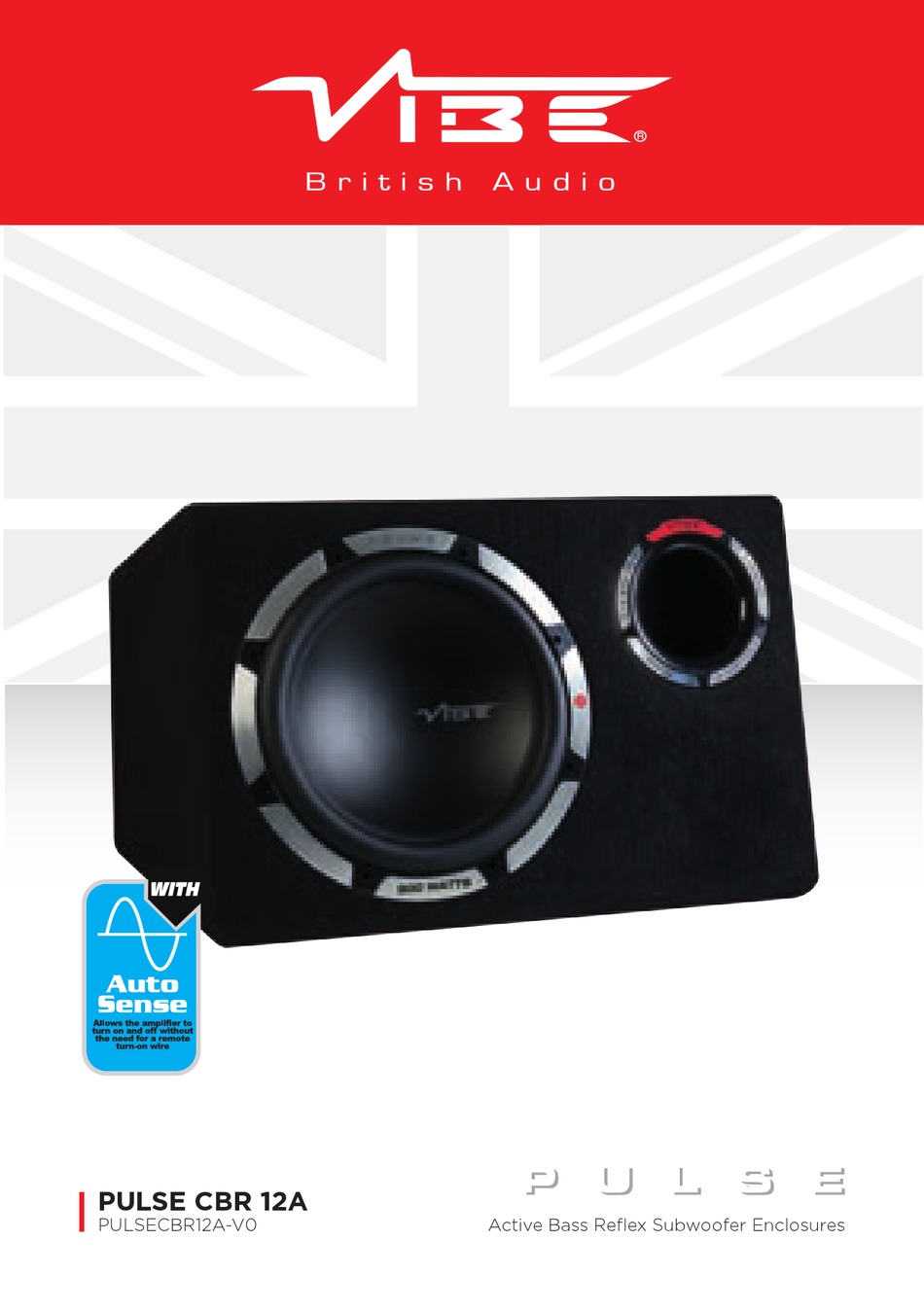

- Page 1 PULSE CBR 12A PULSECBR12A-V0 Active Bass Reflex Subwoofer Enclosures...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Mounting Guidelines
Mounting Guidelines Your VIBE enclosure is designed with a swift installation routine in mind. Please mount the enclosure in a dry location on a solid surface. NEVER mount the enclosure upside down as this will cause the amplifier to over heat and will eventually damage the amplifier. -
Page 5: Power Cable
Power Cable • At least 10 gauge cable or Rapid Fit kit should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut. - Page 6 Terminals And Connections 1. High / low level input For connection to either the speaker output of your source (head unit) this is to be used if the source (headunit) does not have a low level output or connection to any source (head unit) with a low level output.
-
Page 7: Installation
Installation The most common place to mount a bass enclosure is in the luggage compartment of the vehicle. Where in the luggage compartment it is mounted will have an effect on the sound produced, allowing the user to tailor the sound to suit their musical tastes. For example, if the enclosure is mounted facing the rear bumper the bass produced will be noticeably deeper than if it is fired into the rear seat. -
Page 8: Set Up Section
The gain control is now set. Crossover Setting All VIBE active enclosures come with a built in frequency control. This will allow you to set the frequency at which the crossover filter will take affect. It is variable from 30 Hz - 150 Hz. -
Page 9: Troubleshooting
Troubleshooting The Amplifier Will Not Power Up • Check for good ground connections. Ensure that the ground cable is connected directly to bare metal and not a painted surface • Using a multimeter ensure that the remote (REM) terminal has at least +12v DC. •... - Page 10 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG International Technical Enquiries For international technical support please contact the distribution agent for your country.
-
Page 11: Specification
Specification Model PULSECBR12A-V0 Driver PULSE 12 Type Active bass enclosure Peak/RMS Power 900W/300W Impedance 13.9” x 21.6” x 16.7” Dimensions (H x W x D) (354mm x 550mm x 425mm) Configuration 4th order bass reflex Enclosure Type Trapezius Bass Enclosure Recommended external fuse 25 amp... - Page 12 Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
