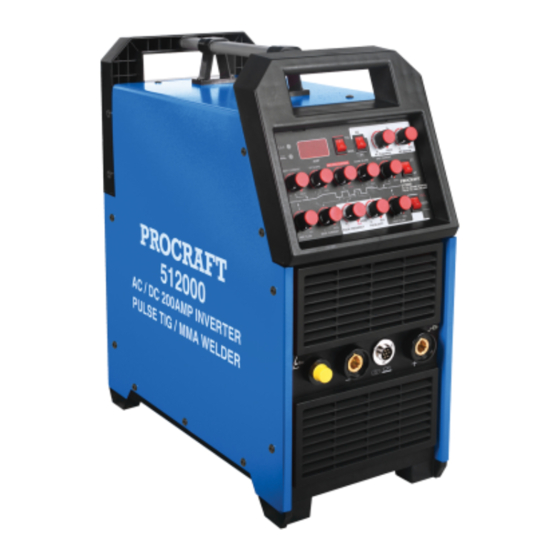

PROCRAFT 512000 Operating Instructions Manual

Ac/dc 200amp inverter pulse tig/mma welder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PROCRAFT
512000
AC/DC 200AMP INVERTER
PULSE TIG / MMA WELDER
OPERATING INSTRUCTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result
in electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
Keep this manual for the safety warnings and precautions,
assembly, operating, inspection, maintenance and
cleaning procedures. Write the product's serial number
in the back of the manual (or month and year of purchase
if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 512000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROCRAFT 512000

Summary of Contents for PROCRAFT 512000

  • Page 1 PROCRAFT 512000 AC/DC 200AMP INVERTER PULSE TIG / MMA WELDER OPERATING INSTRUCTIONS WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. SAVE THESE INSTRUCTIONS Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures.

  • Page 2: Table Of Contents

    CONTENTS Safety warnings ......................3 Description of this welder ....................9 Table of technical Parameters ..................10 Description of the panel function ................11 Protection against overheating ................. 13 Welding with elementary electrodes (MMA method)..........13 Welding with a non-combustible electrode in an inert gas shield (TIG method) ..14 Welding with remote control ..................

  • Page 3: Safety Warnings

    SAFETY WARNINGS AND SAVE THIS MANUAL PRECAUTIONS Keep this manual for the safety WARNING: When using tool, basic safety warnings precautions, assembly, precautions should always be followed to operating, inspection, maintenance and reduce the risk of personal injury and cleaning procedures. Write the product’s damage to equipment.
  • Page 4 moving parts. Replace damaged Power Cords immediately. Electrical Safety Damaged Power Cords increase the 1. Grounded tools must be plugged risk of electric shock. into an outlet properly installed and 6. When operating power tool grounded in accordance with all outside, sue an outdoor extension codes ordinances.
  • Page 5 eye protection. Dust mask, non-skid affect tool’s operation. safety shoes, hard hat, or hearing damaged, have the tool serviced protection must used before using. Many accidents are appropriate conditions. caused by poorly maintained tools. 8. Use only accessories that are recommended by the manufacturer Tool Use and Care for your model.
  • Page 6 vapors. Do not use this product in a work area. damp or wet location. a. When possible, move the work to 4. Avoid unintentional starting. Make location well away from sure you are prepared to begin work combustible; protect before turning on the tool. combustibles with a cover made of 5.
  • Page 7 present for some time after the fire atmospheres containing has started. Do not weld or cut in h. Dangerously reactive the fumes. Do not breathe the fumes. flammable gases, vapors, liquids, Use enough ventilation or exhaust, or and dust. both, to keep fumes and gases from Provide adequate ventilation in your breathing zone and general area.
  • Page 8 Manual for the material you will weld or cut. Proper cylinder care. Secure cylinders to a cart, wall, or post, to prevent them from falling. All cylinders should be used and stored in an upright position. Never drop or strike a cylinder.

  • Page 9: Description Of This Welder

    2. Description of this welder The welder adopts rectifier designed with advanced inverter technology. The advent of inverter arc welding machine derives from inverter power theory and devices. The inverter arc welding power uses high-power device IGBT field-effect transistor to turn the working frequency of 50/60Hz to high frequency (such as 100KHz or higher).

  • Page 10: Table Of Technical Parameters

    3. Table of technical Parameters model 512000 parameters Power voltage（V） 1 PhaseAC240V±15% Frequency （HZ） 25..7 Rated input current （A） 34.9 Rated output voltage （V） 27.2 Rated output current（A） MMA 180 No-load voltage（V） Arcing way Pre-flow（S） 0.1-1 1-10 Current descending time（S）...

  • Page 11: Description Of The Panel Function

    4. Description of the panel function Abnormal indicator 14 pre flow knob 15 base current 2 Remote control indictor 3 current display 16 pulse frequency 4 TIG/MMA control switch 17 pulse duty 5 AC/DC control switch 18 post flow 6 AC frequency knob 19 pulse control switch 7 AC balance knob 20 TIG welding torch interface...
  • Page 12 Start current - current appearing in the circuit after pressing the button in the grip handle. The higher the initial current, the easier it is to ignite the arc. However, when welding thin sheets, too high an initial current can lead to the burning of the sheet. In some welding modes, the current does not increase in order to heat the welded element.

  • Page 13: Protection Against Overheating

    2T / 4T - modes of source operation control. In the 2T time, pressing the TIG torch button starts welding, releasing the welding end button. In the 4T, pressing and releasing the button starts welding, to finish it, press and release the button again. Four-stroke is mainly used when making long welds, as it does not require holding the button on the handle during operation at all times.

  • Page 14: Welding With A Non-Combustible Electrode In An Inert Gas Shield (Tig Method)

    If the device is stored or transported in low temperatures, the device should be brought to the right temperature before starting work !!! The ends of the welding cables should be connected to the sockets (21) and (23) on the front panel, so that the polarity of the electrode is on the electrode holder.
  • Page 15 7.1. Connection of shielding gas Secure the cylinder against tipping over. Unscrew the cylinder valve for a moment to remove any contamination. Install the regulator on the cylinder. Connect the reducer hose to the welder by fitting one end of the hose to the reducer connector and the other at the inlet connector (26) on the back of the welding machine.

  • Page 16: Welding With Remote Control

    8. Welding with remote control Ar meter cylinder When the pedal switch is used to control, connect the 7-core aviation plug with the 7 socket. The remote control green indictor(2) will be on, it is automatically recognized when you plug in, adjust the knob(11) “Welding current”, it can set the maximum current when you press the foot pedal to the maximum, the current display(3) will show the setting current.

  • Page 17: Routine Maintenance

    - Do not touch the electrode while holding the button on the handle. The high voltage of the ionizer and the unloaded voltage then occurring at the electrode can cause electric shock 9、Routine maintenance Warning： All the maintenance and repair jobs must be carried out when the power is cut-off completely.

  • Page 18: Precautions Before Repairs

    10、Precautions before repairs Warning A haphazard experiment and imprudent repair may lead to expansion of fault area, making formal repair more difficult. The exposed part of the welder in energization carries high voltage that may lead to hazards and any direct or indirect touch with it will result in electric shock accident. In serious case death may occur If in the warranty period the user carries out an erroneous examination and repair of any fault in the welding and cutting power without permission, the free maintenance warranty offered by the...

  • Page 19: Precautions Or Preventive Measures

    these are very important for better operation of the welder and longer service life of the welder. 2）No overload！ Operators should bear in mind that maximum permissible load current (relative to the selected load duration factor) be observed at any time and welding current should never surpass the maximum permissible load current.
  • Page 20 gas passage of the welding torch is blocked. 4. Poor sealing of gas passage or lower gas purity will also give rise to welding quality trouble. 5. Strong air flow in the environment may also lead to deterioration of welding quality. B、Difficulty in arc starting with easy arc breaking：...

  • Page 21: Trouble Shooting

    13. Trouble shooting Faults Resolvable Methods 1. Power switch is out of work . 1. Power indicator is not 2. Check if electrify wire net (which is connected to input cable )is in lit ,fan does not work work. . and no welding output 3.
  • Page 22 VN-07 insert of fan ),then open machine : a. If abnormal indicator is still lit ,some of fieldistor of IGBT board is damaged ,find out and replace it with same model . b. If abnormal indicator is not lit , rise transformer of HF arc-striking circuit is damaged ,replace it .

  • Page 23: Included Standar Accessories

    INCLUDED STANDARD ACCESSORIES 512000: AC/DC 200Amp Inverter Pluse TIG / MMA Welder TIG TORCH EARTH CLAMP ELECTRODE HOLDER FOOT CONTROL ARGON REGULATOR Page 23...
