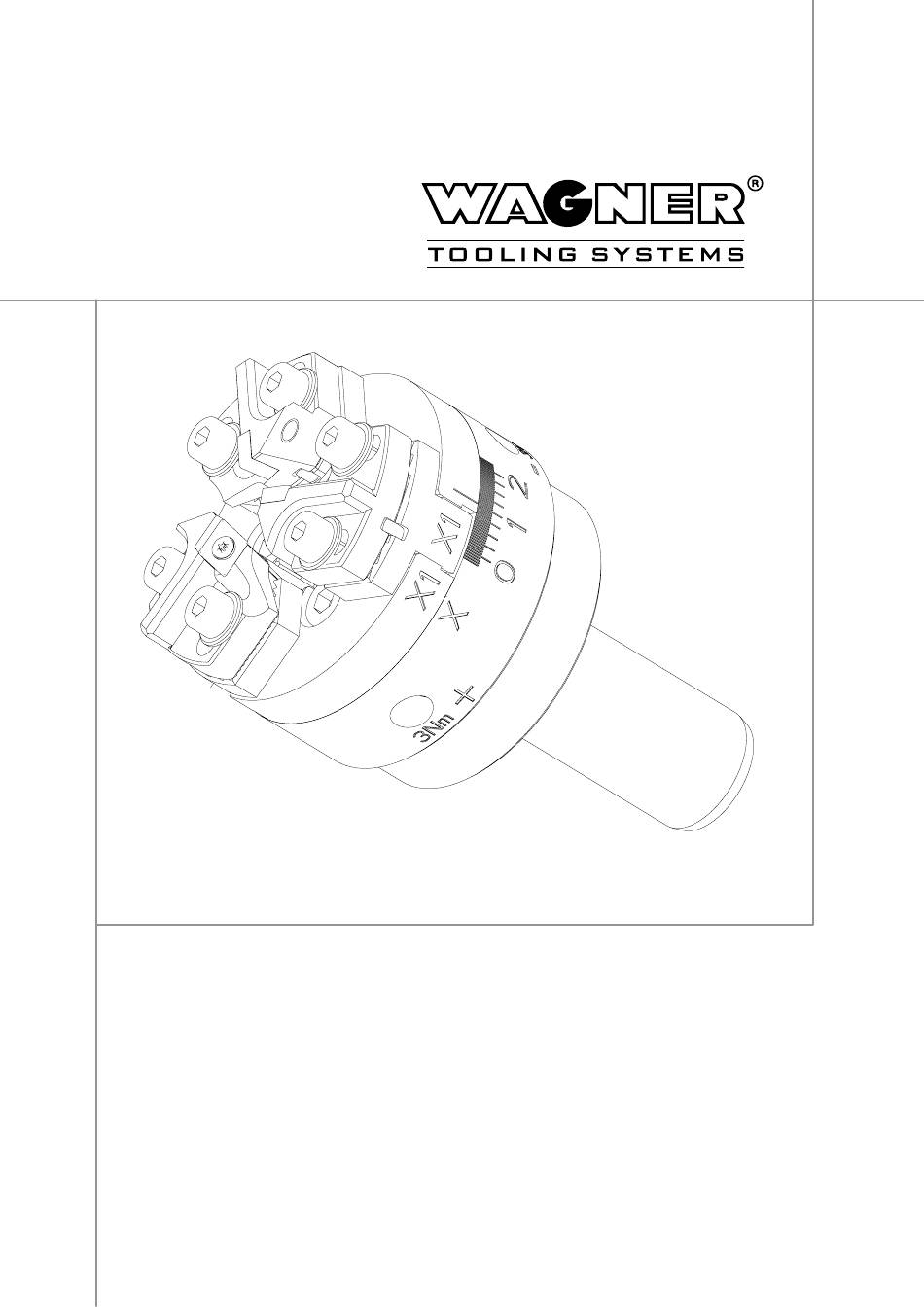

- Page 1 Operating Manual Triple-Cutter Turning Head DSD12...
- Page 2 Inhalt Preface Safety Instructions Working with a DSD12 Spare Parts Brief instructions DSD12...
- Page 3 Our Thread Rolling Heads are known for their high quality and long-life cycle. We hope that you are fully satisfied with our products. This manual is made to help you taking the first steps with your new WAGNER pro- ®...
- Page 4 Do not use force when mounting, demounting and operating. You could otherwise damage the rolling head or the machine. Initial operation Please carry out an operational check before initial operation of the Thread Rolling Head. Brief instructions DSD12...
- Page 5 Please check and handle the thread rolls extremely carefully. The rolls have square edges. If necessary, wear safety gloves! Please make sure the Thread Rolling Head is protected and fastened appropriately when transporting. Brief instructions DSD12...
- Page 6 Working with a DSD12 Working with a DSD12 Application area: The DSD 12 turning head is used for cylindrically stripping workpieces. The diameter of the journal that has to be turned can be between ø 1.5 mm and ø 12 mm.
- Page 7 Working with a DSD12 Maintenance: The turning head can be dismantled into separate parts for maintenance and cleaning. Proceed as follows: Unscrew and remove the cylinder head bolts [120] that secure the cutting insert holders in place and then remove the cutting insert holders [100] and the slide bars [40].
- Page 8 02677004 DSD carbide insert holder 1 set carbide insert holder 74663400 countersink screw M 2.5 x 9 02018002 cylinder head bolts M 4 x 16 02015005 washer 02080007 T7 Torx screwdriver 02676907 screwdriver 3 DIN 911 02677003 Brief instructions DSD12...
- Page 9 Spare Parts Exploded drawing Brief instructions DSD12...
- Page 10 Spare Parts Drawing No. 74663000 glued with Loctite Brief instructions DSD12...
- Page 11 Spare Parts Dimensional drawing turning diameter 1.5 mm to 12 mm Brief instructions DSD12...
- Page 12 +49(0) 71 27/ 97 33-90 email: info@wagner-werkzeug.de web: www.wagner-werkzeug.de Imprint This operating manual is a publication made by Wagner Tooling Systems Baublies GmbH. Information in this catalog is current as of publication date and subject to change. All rights reserved.
