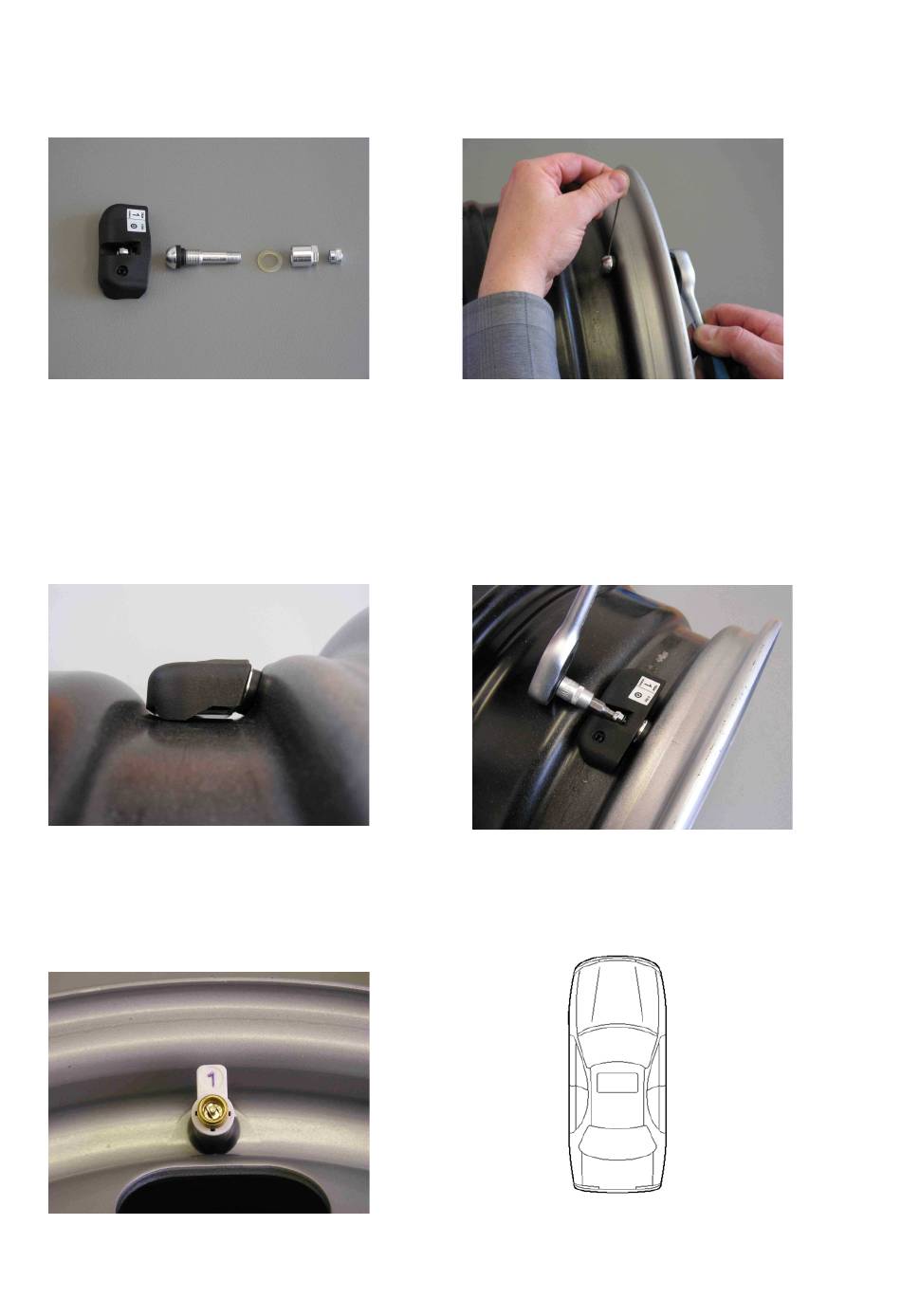

TS3 SENSOR INSTALLATION (OPTION)
1. Demount tire valve top, nut and
washer.
Attach sensor to tire valve using
3.
hollow screw with washer. The base
of the drop centre well must be flat
and wide enough to allow sensor to fit
into it.
5. Place label with the number of
sensor on tire valve.
2. Stick the tire valve in, put washer and
nut on. Use small stick to avoid valve
spinning and tighten the nut.
4. Tighten hollow screw by hexagon
socket screw key (size 4mm). Tightening
moment 2.5 Nm.
6. Standard sensor arrangement:
1
4
2
3
