OmniRig Setup for the IC-703 series transceivers

To enter setup menu in MDSR-SA, select the tool icon at the bottom right

and select "OmniRig Configuration & Status", select the key icon

"Configure OmniRig". Only configure RIG 1.

That completes the installation of the LIF port of the FT-950. The MDSR team

wishes you all the best. If you like the performance of the MDSR software please

tell all your friends about it.

The MDSR development team

To order the PCB kit or for more information please go to;

Note: if you are interested in the TX – BiLiF option contact VE7DXW directly.

http://users.skynet.be/myspace/mdsr

specify: 455k IF

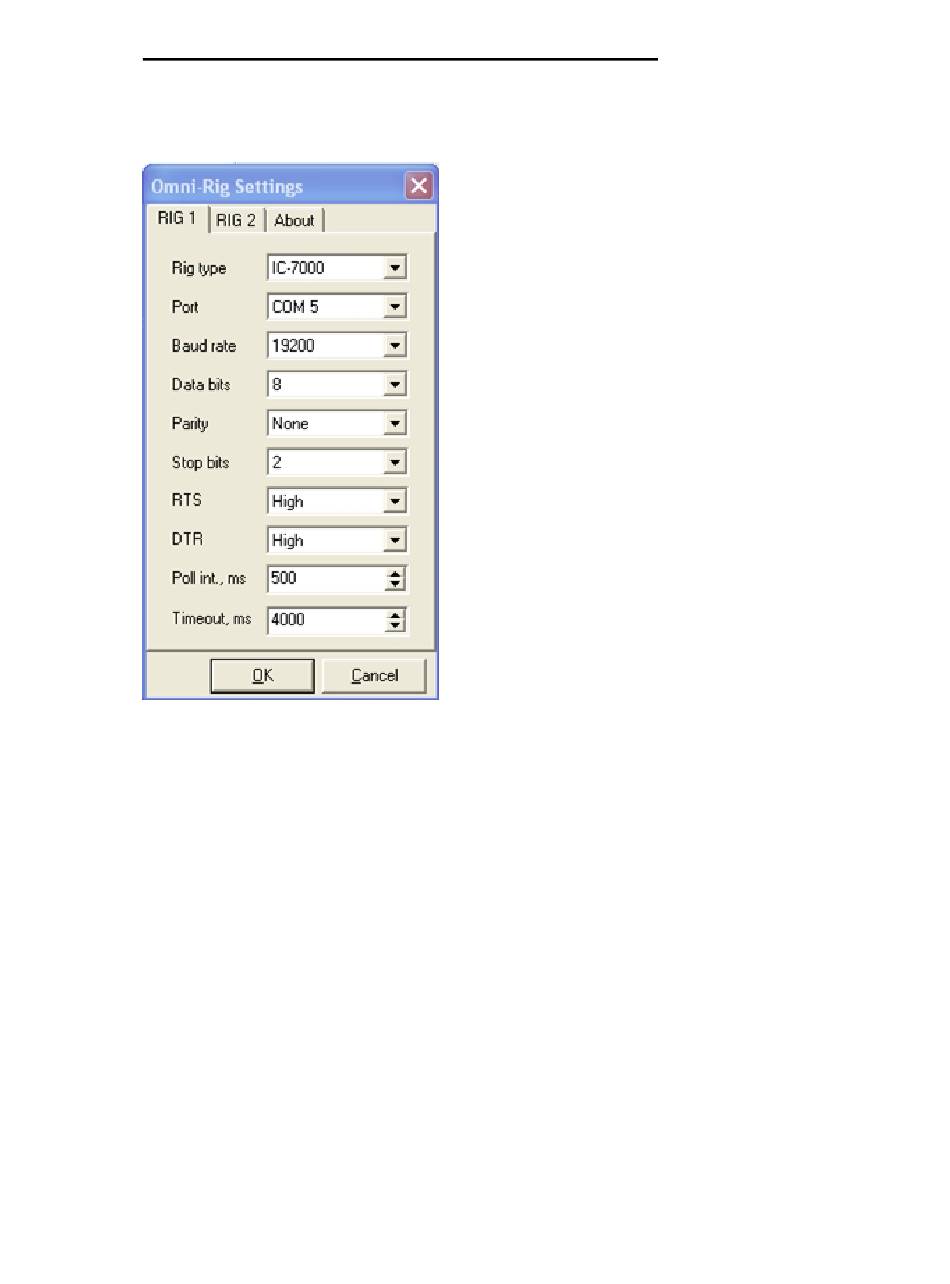

• Select the transceiver to be controlled

from the drop down menu (IC-703).

• Select the port of the computer. If the

Com port is not known, go to the

"Device Manager" and select the ports

icon. The port number should be listed

there.

• The Baud Rate has to match the

setting in the Transceiver. The default

setting for the IC-703 is "auto". The

highest rate is 19200.

• All the other settings should be as

displayed here.
