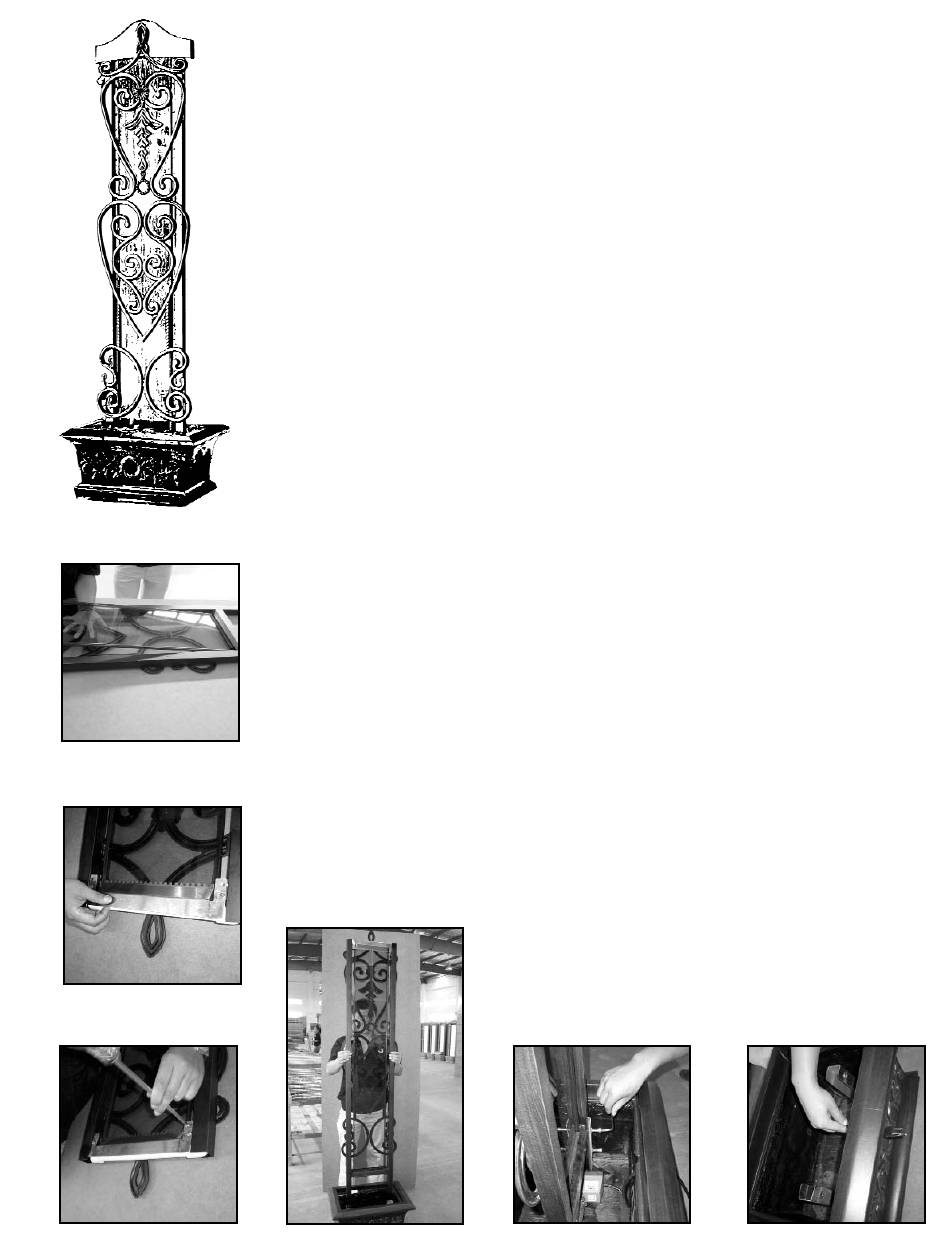

Bluworld Water Trellis VIWT8 Instructions For Use

Inspect for shipping damage any damage from shipping should immediately be reported to the
delivery agent. Do not attempt to operate if unit is damaged.

Parts List

Glass Panel (1)
Trellis Upright (1)
Base (1)
Pump (1)
Rubber Glass Liner (1)

Water Trellis Assembly

Please read all instructions before beginning assembly.
1
2
3
4
5
6
7
8
9
Figure A
10 Line up the pump with the plumbing in the base and press together to connect.
11 Place the header on top as show in Figure G.
12 Fill the reservoir with water. Do not fill pas plughole. Plug in and water should begin to flow.
13 Place the FRP trays in the top of the reservoir and arrange the rocks.
Figure B
Figure C
For bottom of glass panel
Carefully remove the glass panel, the Trellis Upright and the base from their shipping cartons
Follow these steps to remove the box from the base. First, open the box and remove the
base from the box. Second, remove the contents from the base.
Remove the Trellis Upright from the box and place on a flat surface, trellis side down.
Remove the glass panel and packing material from the Trellis Upright.
Insert the plumbing into the Trellis Upright, making sure that the arrows are lined up to ensure
proper water flow.
Attach the rubber glass liner to the bottom of the glass panel, then insert the glass panel into
the bottom of the upright as shown in Figure A.
Place the stainless steel distribution panel into place as shown in Figure B. Use Phillips head
screws (provided) to attach the distribution panel to the upright with a screwdriver (not
included) as shown in Figure C.
Take the assembled panel with two people and slide the panel into the stainless steel uprights
in the base as shown in Figure D.The metal scrollwork should be facing towards the front.
Base hole is centered on the back.
Once the panel is in the base, use the Allen wrench (provided) to tighten the four bolts that
are already in the stainless steel supports in the base as shown in Figure E.
Place the pump in the base. Pull the cord through the hole leaving approximately 1 2 inches
of the cord in the base as show in Figure F.
Adjust flow if necessary by turning the black knob located on the delivery tube (base). Water
level must be maintained at least one inch above the pump. If water level drops below the
top of the pump, damage to the pump may occur.
Figure D
Water Trellis
Instructions for use
Bag of River Rocks (1)
FRP Trays for Rocks (2)
Bag of Hardware (1)
Figure E Figure F
