Bluworld Nojoqui Falls Installation Manual

Download this manual

IMPORTANT – RETAIN FOR FUTURE REFERENCE – READ CAREFULLY

• Try to position your fountain above or near an electrical outlet.

• When selecting the location of your fountain, please consider making it easily accessible for maintenance (e.g.

adding water, cleaning etc.).

• Consider the surface on which your waterfall will be placed. This feature can be mounted on sheet-rock with

wood studs, tile, brick or concrete. (No mounting hardware is included for masonry installations). Due to the

weight of this fountain you must mount the stone wall bracket into a wood or metal stud(s) You MUST use the

provided EZ Anchors™ (J) for any screw that does not hit a stud.

• Mount indoors only. It is not recommended to place your fountain in full direct sunlight.

• It is critical that your waterfall is level as this will ensure even water flow.

• Assemble as near as possible to the point of installation. Take extreme care when lifting to avoid personal

injury or damage to the product.

• This product contains small items and plastic bags. Please be aware of the danger to young children.

• Assistance in mounting your fountain may be required due to weight. You will need 1-2 people.

635 W. Michigan Street Orlando, FL 32805

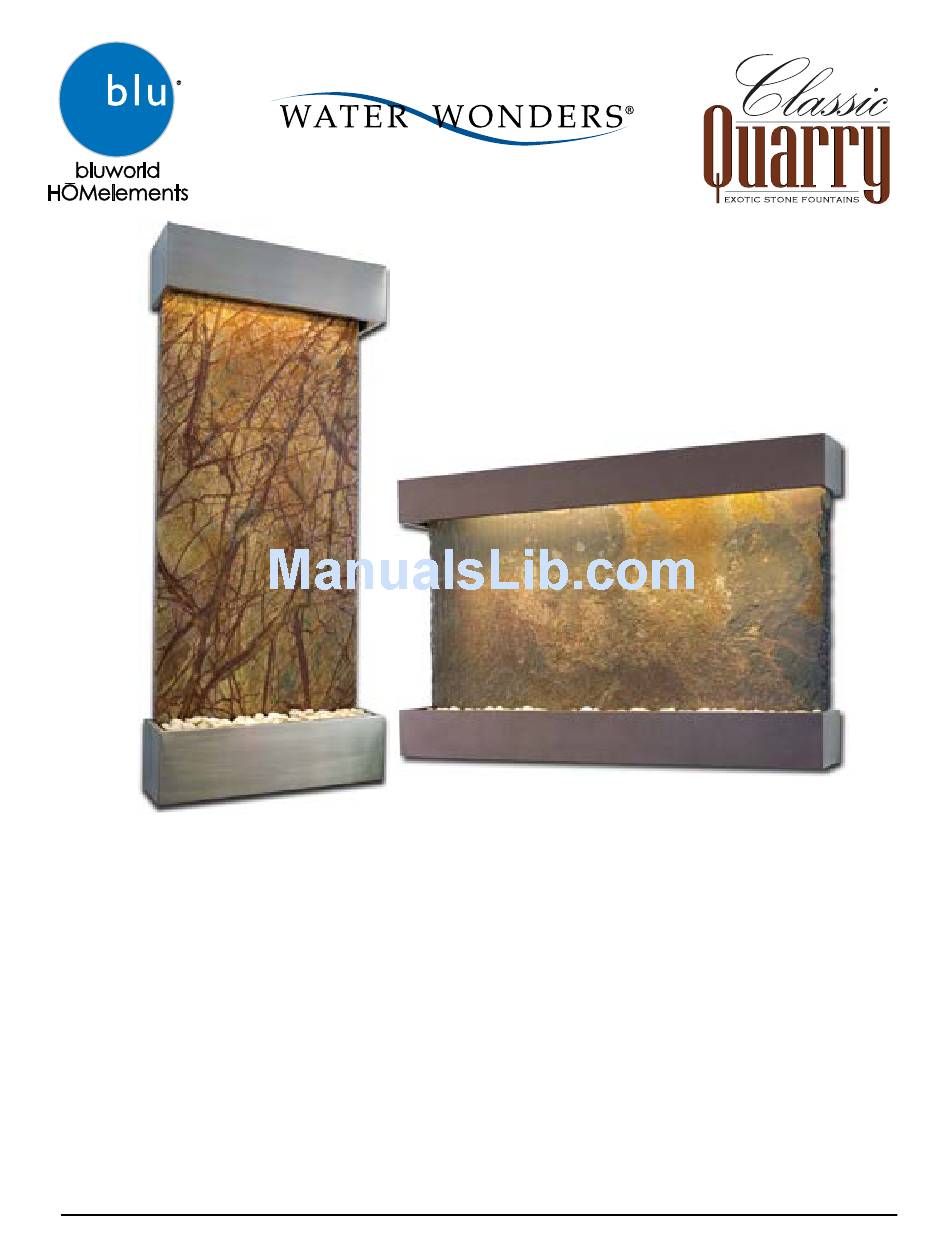

Nojoqui Falls &

Horizon Falls

Installation Guide

407-426-7674 or 888-499-5433

http://shop.bluworldusa.com

Need help?

Do you have a question about the Nojoqui Falls and is the answer not in the manual?

Page 1 Nojoqui Falls & Horizon Falls Installation Guide IMPORTANT – RETAIN FOR FUTURE REFERENCE – READ CAREFULLY • Try to position your fountain above or near an electrical outlet. • When selecting the location of your fountain, please consider making it easily accessible for maintenance (e.g.
Page 2: Parts List
Wall Brackets Classic Quarry Stone Not Shown 1. Your Nojoqui Falls fountain is 58” tall x 25.5” wide and the Horizon Falls fountain is 33” tall x 51” wide. Determine where on the wall the fountain will be mounted. You may wish to block out the dimensions with low tack or painters A.
Page 3 Reservoir and Water Disperser Section 5: Disperser and Diffuser 1. Locate the reservoir (L) and the EVA Cushion Strips (C). Peel the paper off the 1. Gently lift the disperser (E) from behind the Pocket Clips (M) adhesive strip and place each pad about 1” up from the bottom of the reservoir and remove each Pocket Clip out of the Wall bracket pocket and 2”...
Page 4 (N) and the stone allowing the water to flow without being touched by the tray. Spread and Protec (a mineral and scale preventative) should you use tap water. These are available through your authorized Bluworld the Polished Rocks (I) equally throughout the tray.
Page 5 Bluworld, then the Warranty shall be null and void.

Horizon falls
